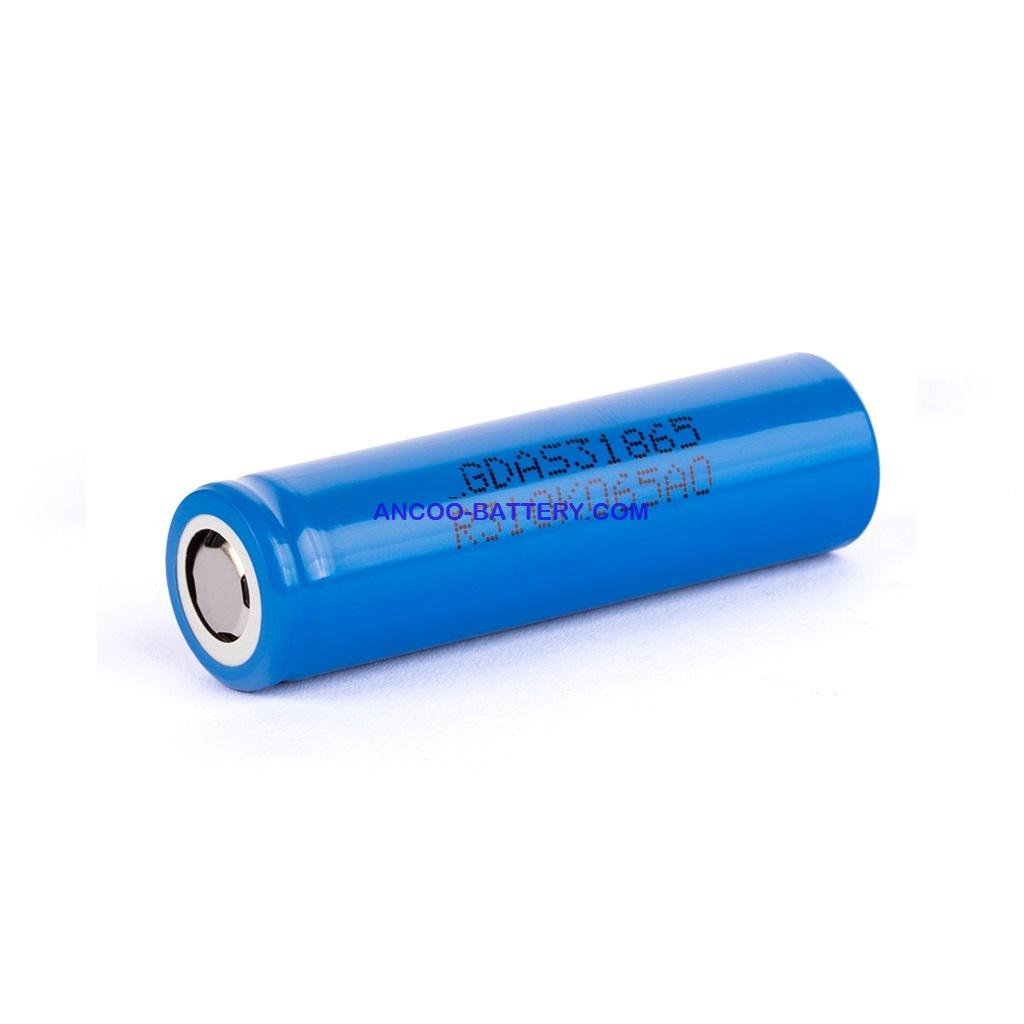

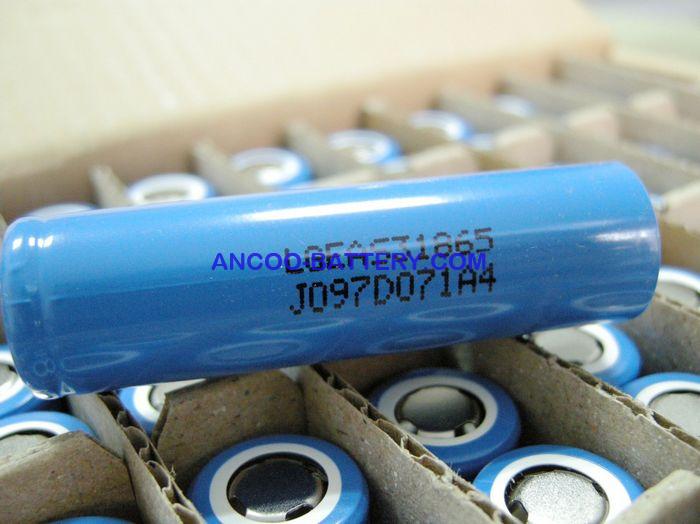

ICR18650S3 2200mAh 3.6V 18650 Lithium-ion Battery cells

ICR18650S3 2200mAh 3.6V 18650 Lithium-ion Battery Cells

MSDS UN38.3 RoHS SGS ROHS CB IEC62133 UL1642

1. Min. Capacity: 2200mAh
2. Typical Capacity: 2150mAh
3. Nominal Voltage: 3.6V

4. Standard Charge

Constant current: 1075mA

Constant voltage: 4.2V

End current(Cut off): 50mA

5. Max. Charge Voltage: 4.2V

6. Max. Charge Current: 2150mA

7. Standard Dicharge

Constant current: 430mA

End Voltage(Cut off): 3.0V
8. Max. Discharge Current

-20 ~ 5°C 1250mA

5 ~ 45°C 5000mA
45 ~ 60°C 3750mA

9. Weight: Max. 47g

10. Operating Temperature

Charge: 0 ~ 45 °C

Discharge: -20 ~ 60 °C
