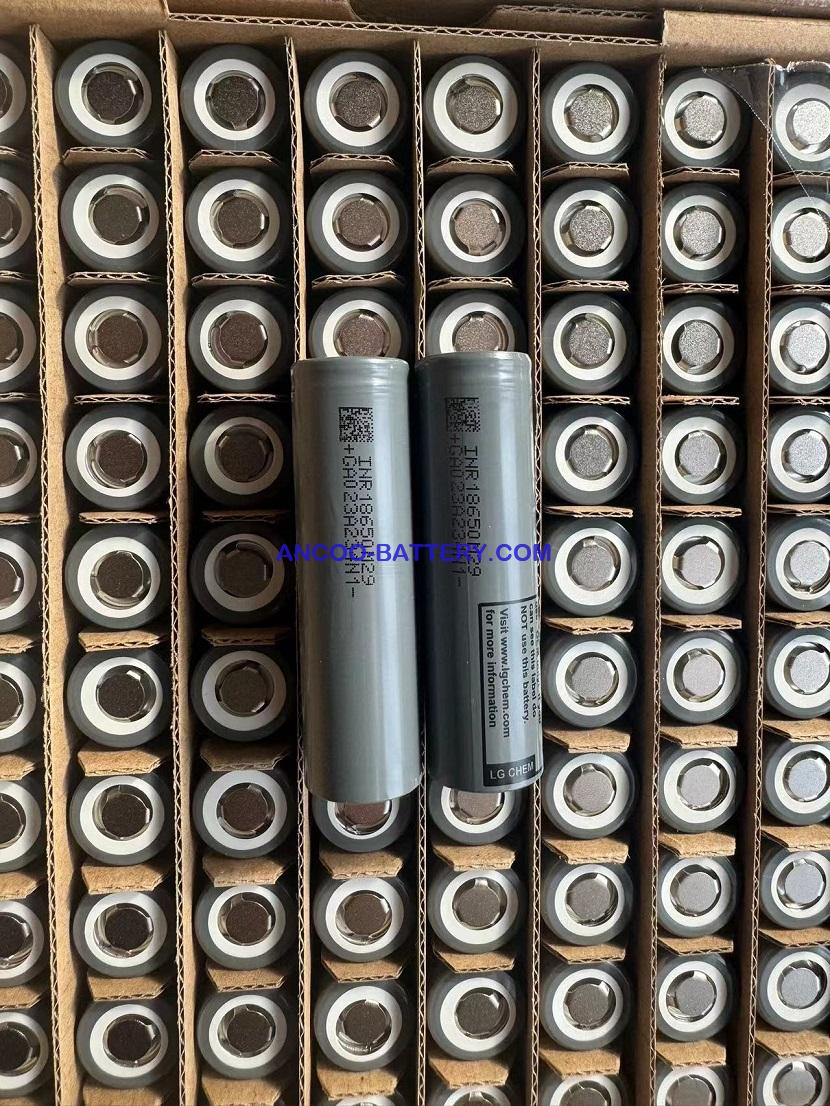

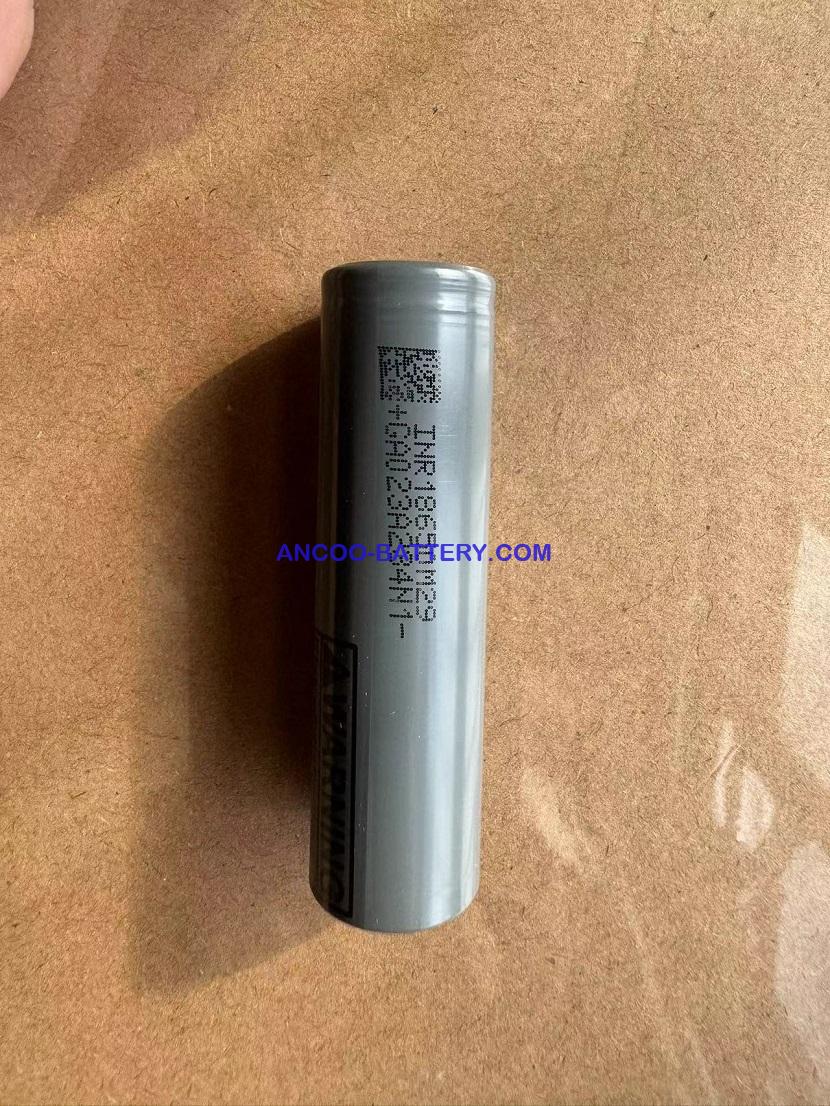

LG INR18650M29 Lithium-ion Battery
>100K LG M29 in stock, fast shipping by air or sea with MSDS UN38.3 BIS KC UL1642 CB IEC62133 and Test reports.
1. General Information of LG 18650M29
1.1 Scope: This product specification defines the requirements of the rechargeable lithium ion battery.
1.2 Product classification: Cylindrical
1.3 Model name: INR18650M29
2. Nominal Specification
2.1 Nominal Capacity 2,850mAh (0.2C, 2.50V discharge)
2.2 Minimum Capacity 2750mAh (0.2C, 2.50V discharge)
2.3 Norminal Energy 10.5Wh (0.2C, 2.50V discharge)
2.4 Nominal Voltage 3.67 V (0.2C, 2.50V)
2.5 Standard Charge Method: CC CV
Charging Voltage : 4.20V
Charging Current : 0.5C (1,375 mA)
Cut off Current : 50mA
2.6 Max. Charge Current 1.0C (2,750mA)
2.7 Standard Discharge Method: CC
Discharging Current : 0.2C (550mA)
Cut off Voltage : 2.50V
2.8 Max. Discharge Current: 6,000mA(for continuous discharge) 10,000mA(not for continuous discharge)
2.9 Weight 45.00 g
