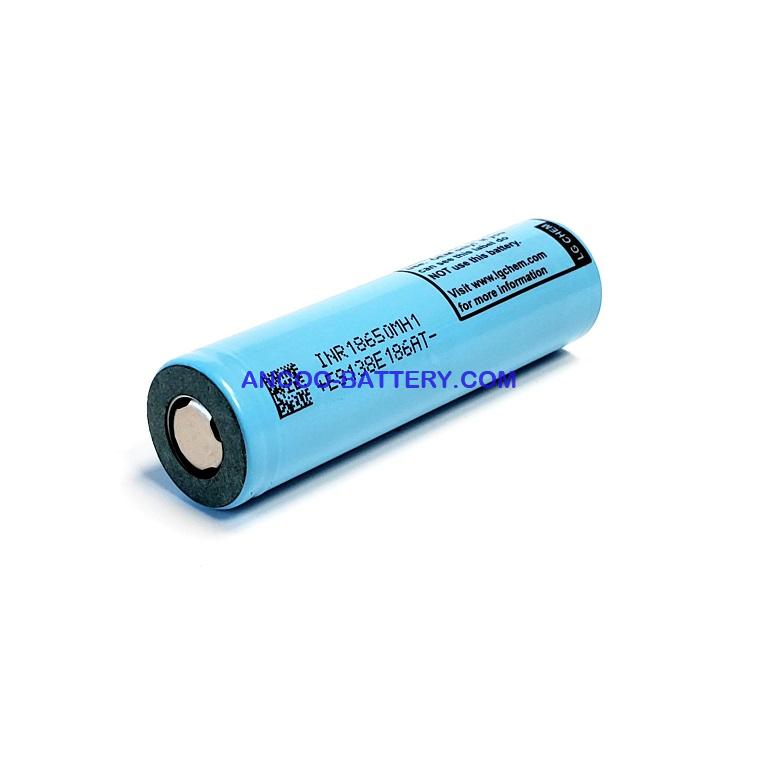

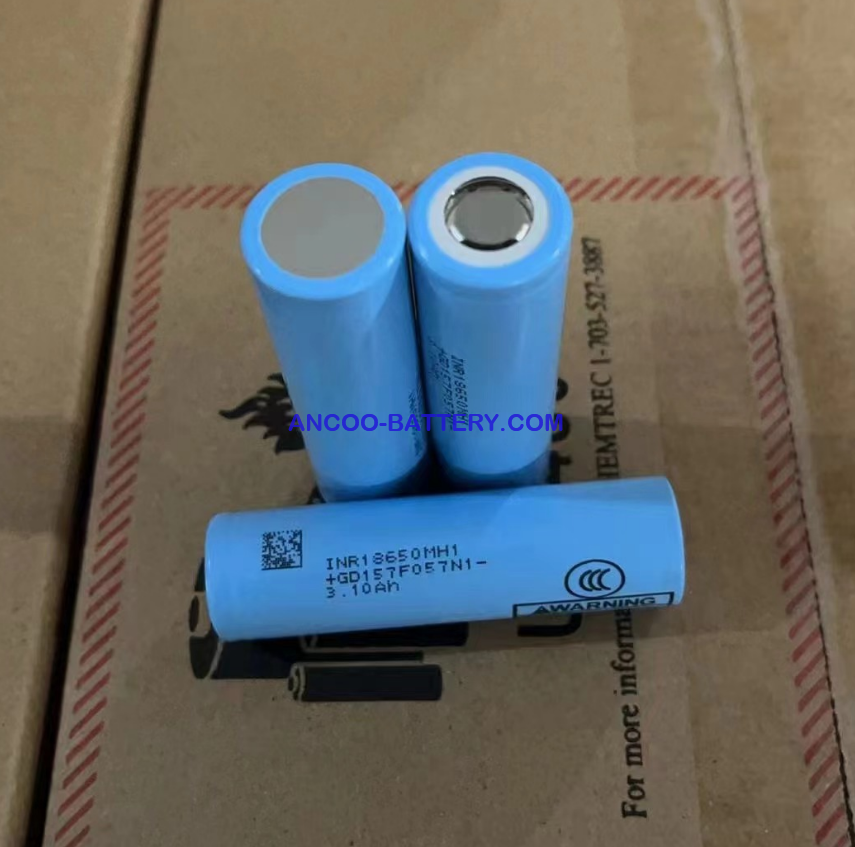

LG INR18650MH1 3200mAh 10A Li-ion Battery Cells
-
>50K fresh cells in stock, low price, LG MH1 original pallets.
-
Fast shipping by air or sea with MSDS, UN38.3 test summary.
-
We hold full Specification, BIS, CB IEC62133, UL1642 and UN38.3 Test reports.
1. General Information
1.1 This product specification defines the requirements of the rechargeable lithium ion battery.
1.2 Product classification : Cylindrical rechargeable lithium ion battery
1.3 Model name: INR18650MH1 or ICR18650MH1
2. Nominal Specification:
2.1 Nominal Capacity 3,200mAh (0.2C, 2.50V discharge)
2.2 Minimum Capacity 3,100mAh (0.2C, 2.50V discharge)
2.3 Norminal Energy 11.8 Wh (0.2C, 2.50V discharge)
2.4 Nominal Voltage 3.70 V (0.2C, 2.50V)
2.5 Standard Charge Method: CC CV
Charging Voltage : 4.20V
Charging Current : 0.5C (1,550mA)
Cut off Current : 50mA
2.6 Max. Charge Voltage: 4.2V
2.7 Max. Charge Current 1.0C(3,100mA), not for cycle life
2.8 Standard Discharge Method: Discharging Current : 0.2C (620mA)
Cut off Voltage : 2.50V
2.9 Max. Discharge Current 6A(for continuous discharge), 10A(not for continuous discharge)
2.10 Weight 44.5g
