18650 HB2 1500mAh 30A Lithium-ion Battery

ON SALE: 20% Discount

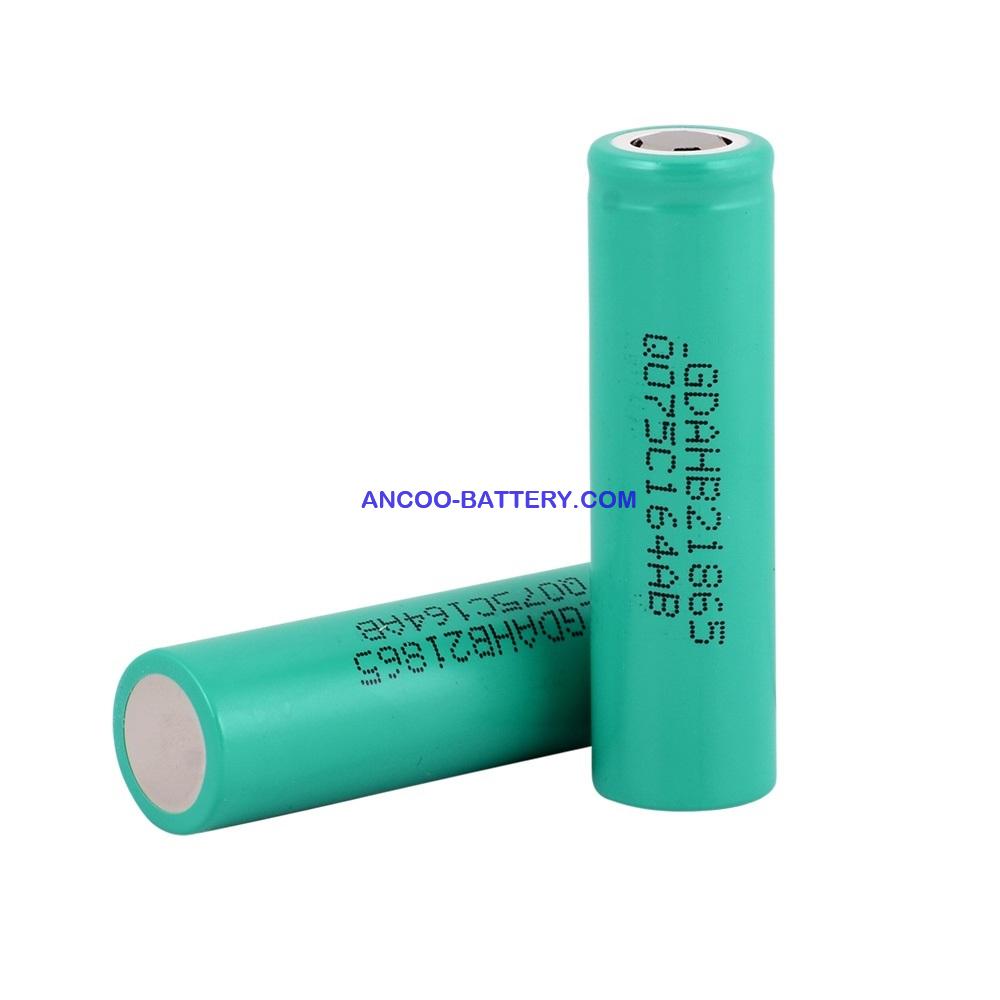

ICR18650HB2 1500mAh 3.65V 30A High Power Lithium-ion Battery Cells

MSDS UN38.3 RoHS BIS CB IEC62133 UL1642

Item	Condition	Note Specification
1 Nominal Capacity Std.	charge / discharge	Nominal 1500 mAh (C nom )
		Minimum 1450 mAh (C min )
2 Nominal Voltage	Average for Std. discharge	3.65V
3 Charge
3.1 Standard Charge
	Constant current	750mA
	Constant voltage	4.2V
	End condition(Cut off)	50mA
3.2 Fast charge	Constant current	4000mA
	Constant voltage	4.2V
	End condition(Cut off)	100mA
4 Max. Charge Voltage	-	4.2V
5 Max. Charge Current	-	4000mA
6.1 Standard Discharge
	Constant current	0.3A
	End voltage(Cut off)	2.0V
6.2 Fast Discharge
	Constant current	1.5A
	End voltage(Cut off)	2.0V
7 Max. Discharge	Current For continuous discharge	30A
8 Weight	Max.	48.0 g
9. Operating Temperature (Cell Surface Temperature)
	Charge	0 ~ 45℃
	Discharge	-20 ~ 60℃
10 Storage Temperature (for shipping state )
	1 month	-20 ~ 60℃
	3 month	-20 ~ 45℃
	1 year	-20 ~ 20℃
