Samsung Battery Cells

  • Samsung ICP103450S SDI 2000mAh 103450 Battery
  • Samsung ICP103450S SDI 2000mAh 103450 Battery
Samsung ICP103450S SDI 2000mAh 103450 BatterySamsung ICP103450S SDI 2000mAh 103450 Battery

Samsung ICP103450S SDI 2000mAh 103450 Battery

Samsung ICP103450S with fuse Battery

  1. >20K in stock, Samsung 103450 with fuse Li-ion cells, original packaging.
  2. Fast shipping by air or sea with MSDS UN38.3 UL1642 CB IEC62133 test reports and certificates.

Cell Specifications of ICP103450S with fuse

1 Nominal Capacity 2000mAh (0.2C discharge)
2 Charging Voltage 4.2V
3 Nominal Voltage 3.7V
4 Charging Method CC-CV (constant voltage with limited current)
5 Standard charge Current: 1000mA
6 Rapid charge Current: 1700mA
7 Standard charge Time: 3hours
8 Rapid charge Time: 2.5hours
9 Max. Charge Current 1700mA
10 Max. Discharge Current 2000mA
11 Discharge Cut-off Voltage 2.75V
12 Cell Weight 42g max
13 Cell Dimension
Thickness : 10.4mm(ex-factory status)
Height : 48.7mm max
Width : 39mm max
14 Charge Temperature: 0 to 45℃
15 Discharge Temperature: -20 to 60℃
16 Size: 103450
17 Manufacture: Samsung SDI

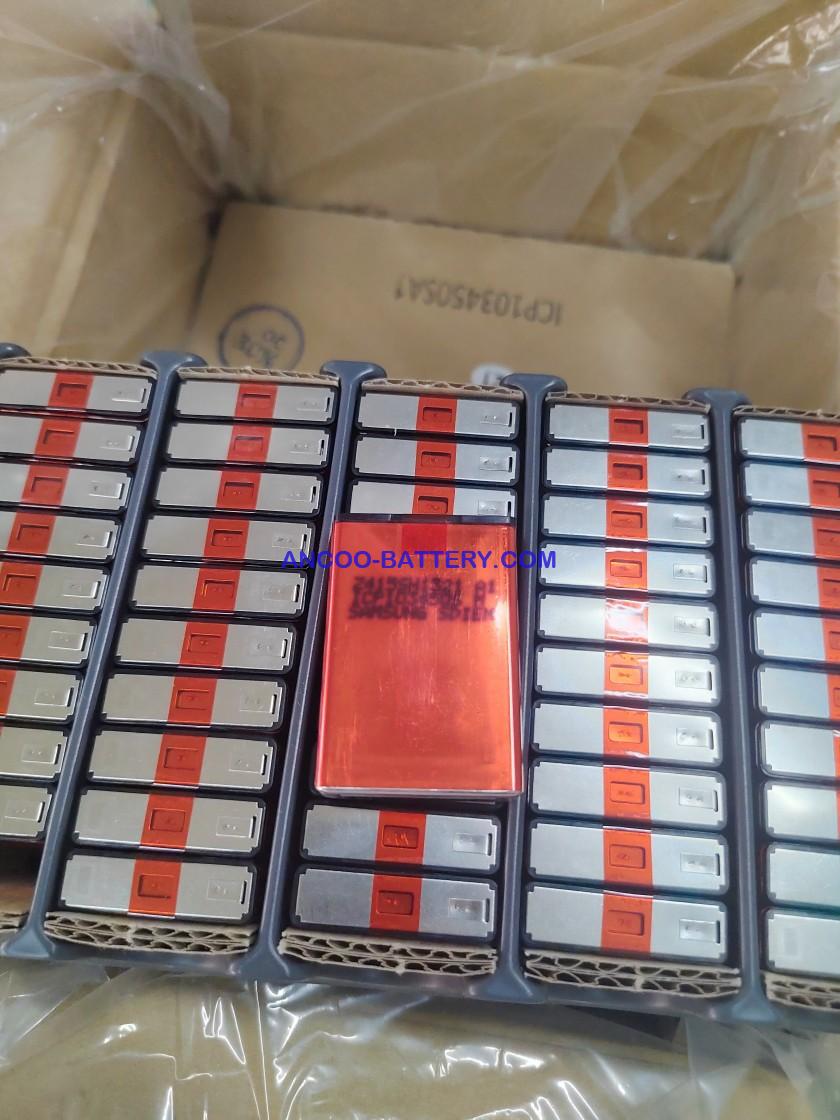

Samsung ICP103450S with Fuse

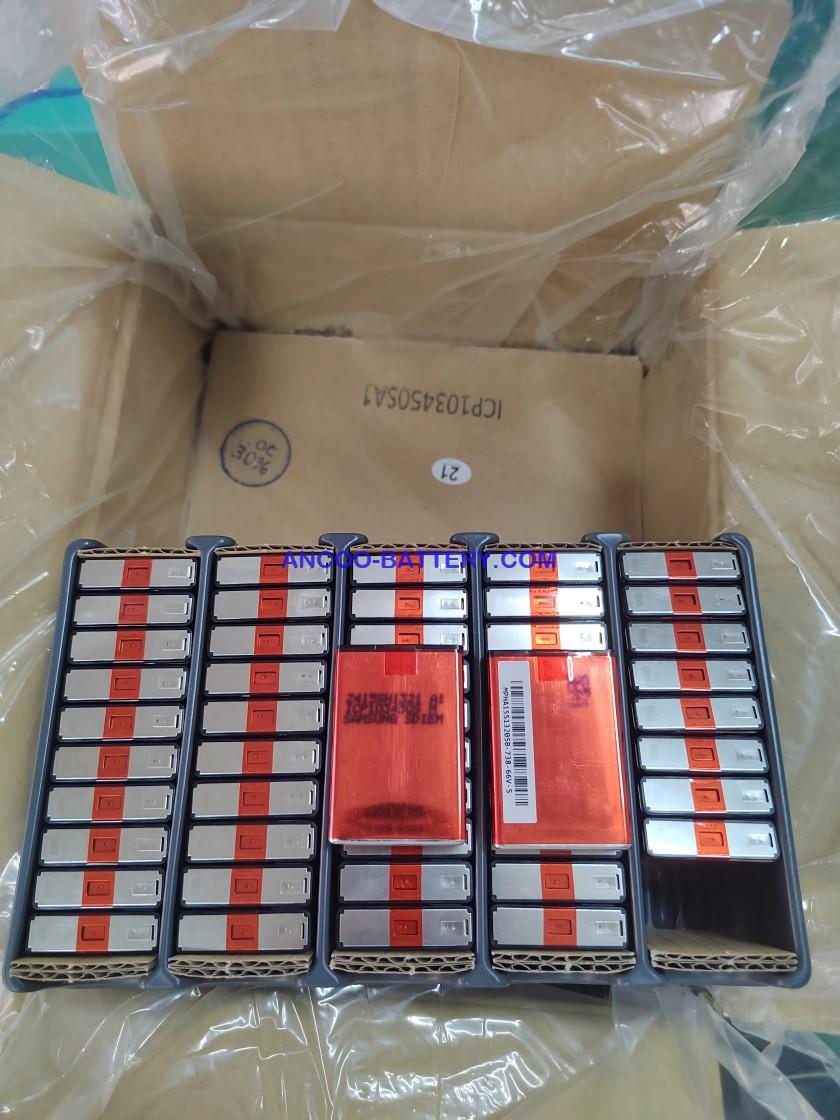

Samsung ICP103450S with fuse
