Samsung SDI INR18650-35E 3500mAh 3.6V 18650 Lithium-ion Battery Cell

MSDS UN38.3 RoHS CB BIS UL1642 IEC62133

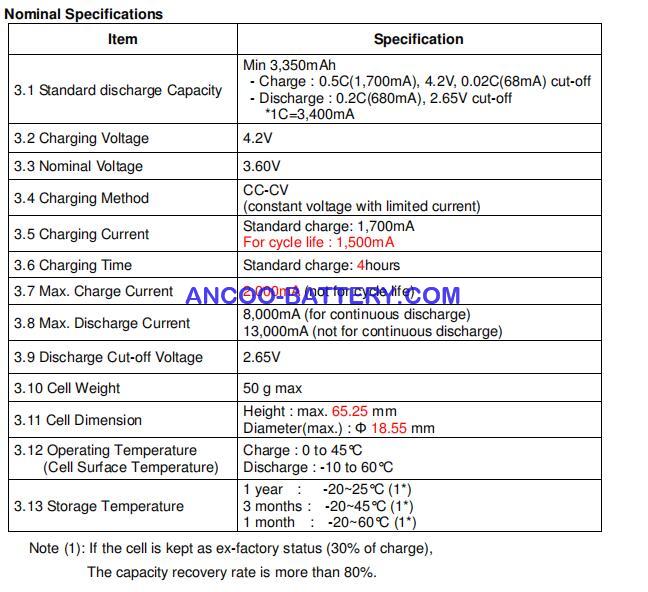

Nominal Specifications
3.1 Standard discharge Capacity: Min 3,350mAh
- Charge : 0.5C(1,700mA), 4.2V, 0.02C(68mA) cut-off @RT
- Discharge : 0.2C(680mA), 2.65V cut-off @RT
3.2 Charging Voltage 4.2V
3.3 Nominal Voltage 3.60V
3.4 Charging Method: CC-CV (constant voltage with limited current)
3.5 Charging Current: Standard charge: 1,700mA, For cycle life : 1,020mA
3.6 Charging Time Standard charge: 4hours
3.7 Max. Charge Current 2,000mA (not for cycle life)
3.8 Max. Discharge Current: 8A (for continuous discharge), 13A (not for continuous discharge)
3.9 Discharge Cut-off Voltage: 2.65V
3.10 Cell Weight 50 g max
3.11 Cell Dimension
Height : Max. 65.25 mm
Diameter: Max. 18.55 mm
