Samsung Battery Cells

  • ICR18650-26J1 SDI Samsung 2600mAh Battery
  • ICR18650-26J1 SDI Samsung 2600mAh Battery
ICR18650-26J1 SDI Samsung 2600mAh BatteryICR18650-26J1 SDI Samsung 2600mAh Battery

ICR18650-26J1 SDI Samsung 2600mAh Battery

Samsung SDI 26J1 18650 2600mah Li-ion Battery Cells

ICR18650-26J1, >20K in stock, fast shipping by air or sea,
MSDS UN38.3 RoHS BIS KC CB IEC62133 UL1642 Test reports and certificates.


Samsung 26J1 Datasheet

1. Scope

This product specification has been prepared to specify the rechargeable lithium-ion cells to be supplied to the customer by Samsung SDI Co., Ltd.

2. Description and Model

2.1 Description Cell (lithium-ion rechargeable cell)
2.2 Model: ICR18650-26J1 with PTC inside

3. Nominal Specifications

3.1 Nominal Capacity 2600mah (0.2C, 2.75V discharge)
3.2 Minimum Capacity 2550mAh(0.2C, 2.75V discharge)
3.3 Charging Voltage 4.2 ±0.05 V
3.4 Nominal Voltage 3.63V
3.5 Charging Method: CC-CV (constant voltage with limited current)
3.6 Charging Current: Standard charge 1300mA, Rapid charge 2600mA

3.7 Charging Time: Standard charge 3hours, Rapid charge 2.5hours
3.8 Max. Charge Current 2600mA (ambient temperature 25℃)
3.9 Max. Discharge Current 5200mA (ambient temperature 25℃)
3.10 Discharge Cut-off Voltage 2.75V
3.11 Cell Weight 45.0g max
3.12 Height : 65.00mm max, Diameter : 18.40mm max
3.13 Operating Temperature: Charge  0 to 45℃, Discharge -20 to 60℃


PTC Specification (in the Cell)

Hold Current: 2.9A
Resistance Power:
Dissipation: 7~16mΩ
Resistance: Max. 2.5W
After Trip: Max. 28mΩ

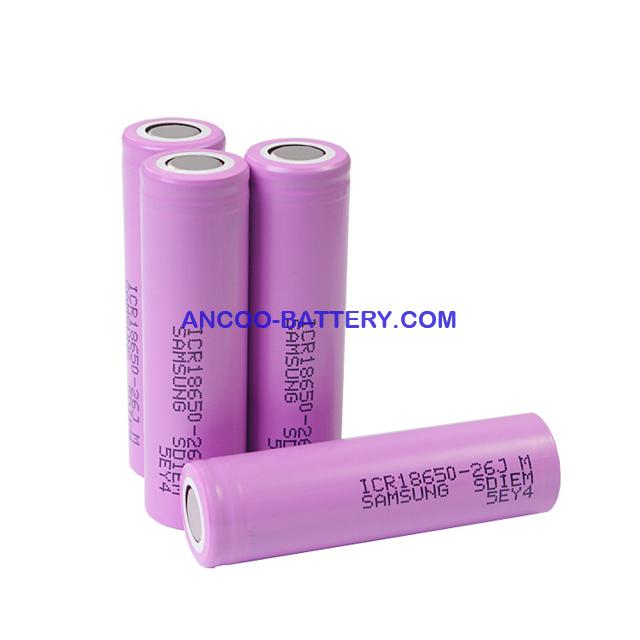

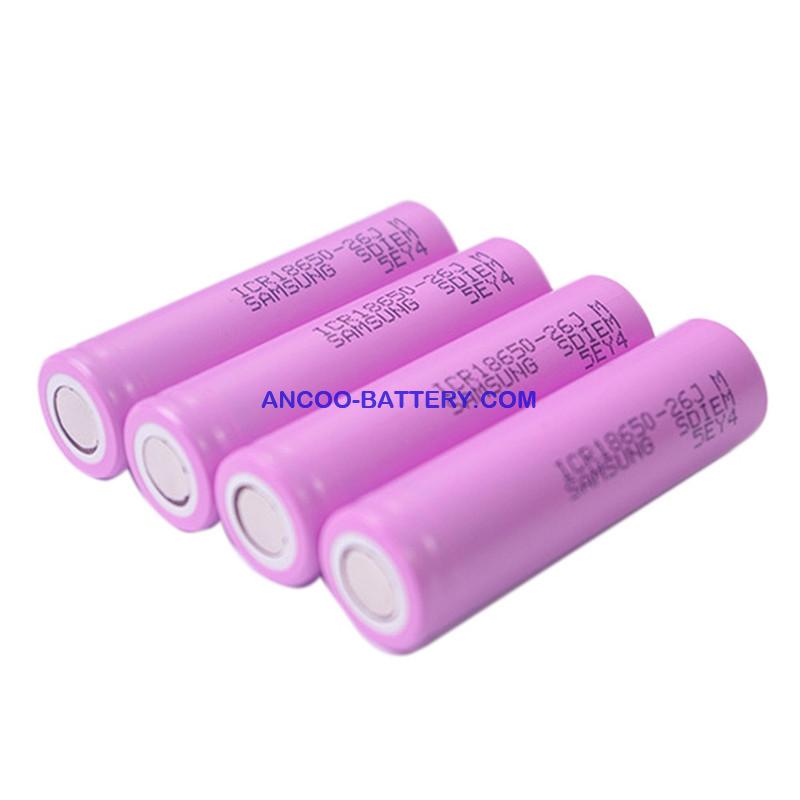

Samsung 26J1 18650 2600mAh cells
