Molicel P50B sets a new standard with the superior power-to-energy ratio ever achieved in the 21700 format. It features 5.0Ah for 100W discharge and 5C fast charge power. It delivers exceptional performance and, with its low impedance, ensures more efficient power delivery with minimal heat generation.
Compared to its predecessor, the P45B, it offers significantly higher runtime, better retention, and a slower heating rate, effectively doubling the cycle life. This makes it ideal for high-demand applications where both power and endurance are essential.
Manufacturer | Molicel |
Model | P50B |
Size | 21700 |
Positive Terminal | Flat Top |
Nominal Capacity | 5000mAh |
Continuous Discharge Rating (max) | 60A (80C Temp cut-off) |
Nominal Voltage | 3.6V |
Maximum Voltage | 4.2V |
Discharge cut-off Voltage | 2.5V |
Protected | No |
Rechargeable | Yes |
Approx. Dimensions | 21.55mm x 70.15mm (Max) |
Approx. Weight | 70g (Max) |
Country of Origin | Canada or Taiwan |
Associated Names | INR-21700-P50B |

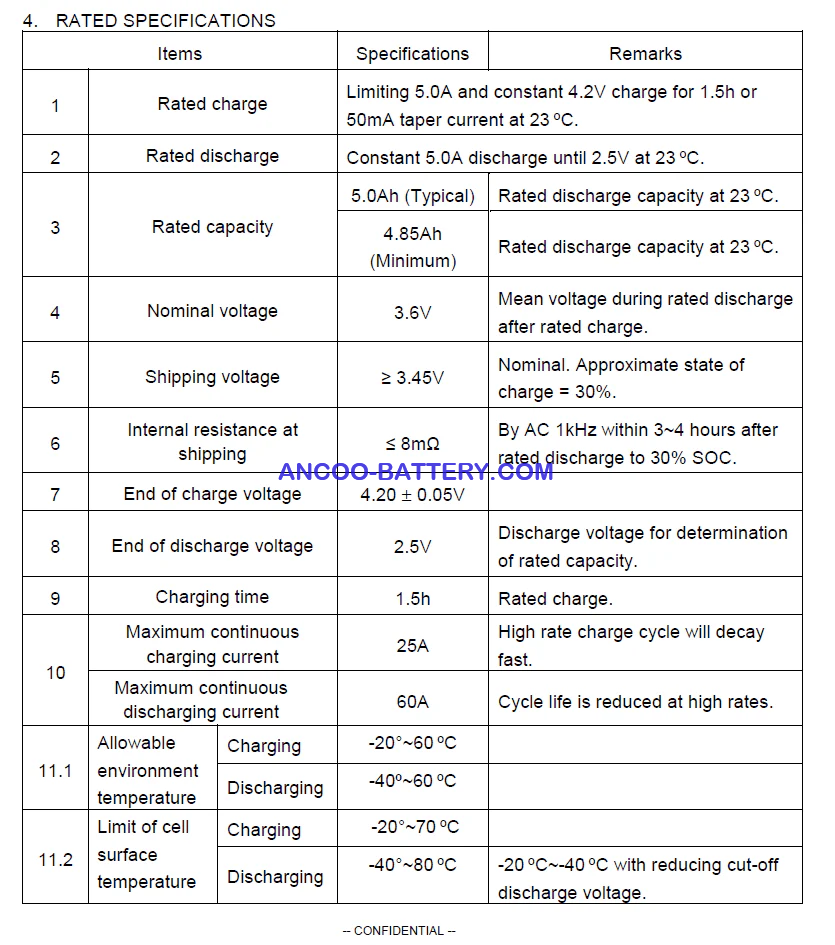

Data Specification Sheet | Molicel P50B Quick Spec |
Feature 1
The high-nickel layered oxide cathodeis engineered to deliver an impressive energy density of 265 Wh/kg.
Feature 2
The high-wettability polymer separatoris engineered to support a remarkable discharge current of 60A.
Feature 3
The engineered graphite anodeis designed to support a fast charge rate of 5Cwhile ensuring high safety standards.
Feature 4
The advanced silicon-carbon composite anodetechnology offers a significant enhancement in battery longevity, doubling the cycle life from 700 to 1,400 cyclesunder a 100W discharge condition*.
* This improvement is achieved under conditions of a +1C charge rate and a -100W discharge rate.
Feature 5
The low-temperature electrolyte formulationis optimized for precise temperature control, allowing the system to deliver peak power of 238W in -10°C*.
*This performance is based on a state of charge (SOC) of 100% within 10 seconds.
Feature 6
The interface engineeringhas been meticulously optimized to achieve exceptionally low impedance, measured at just 13.5 mΩ.
