Samsung Li-ion cells

  • Samsung ICR18650-30B 3000mAh Lithium-ion Battery
  • Samsung ICR18650-30B 3000mAh Lithium-ion Battery
  • Samsung ICR18650-30B 3000mAh Lithium-ion Battery
Samsung ICR18650-30B 3000mAh Lithium-ion BatterySamsung ICR18650-30B 3000mAh Lithium-ion BatterySamsung ICR18650-30B 3000mAh Lithium-ion Battery

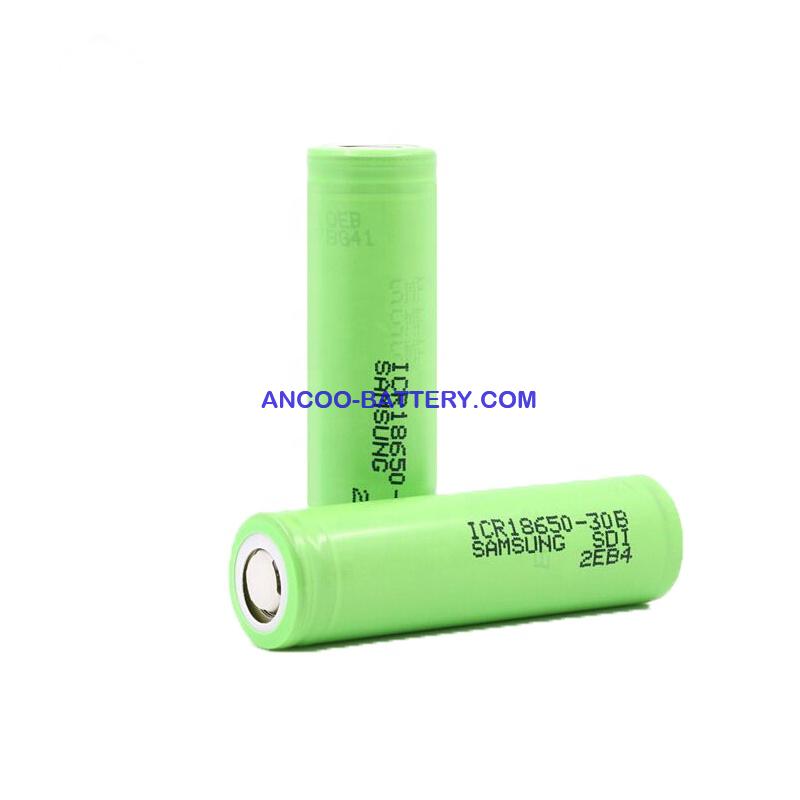

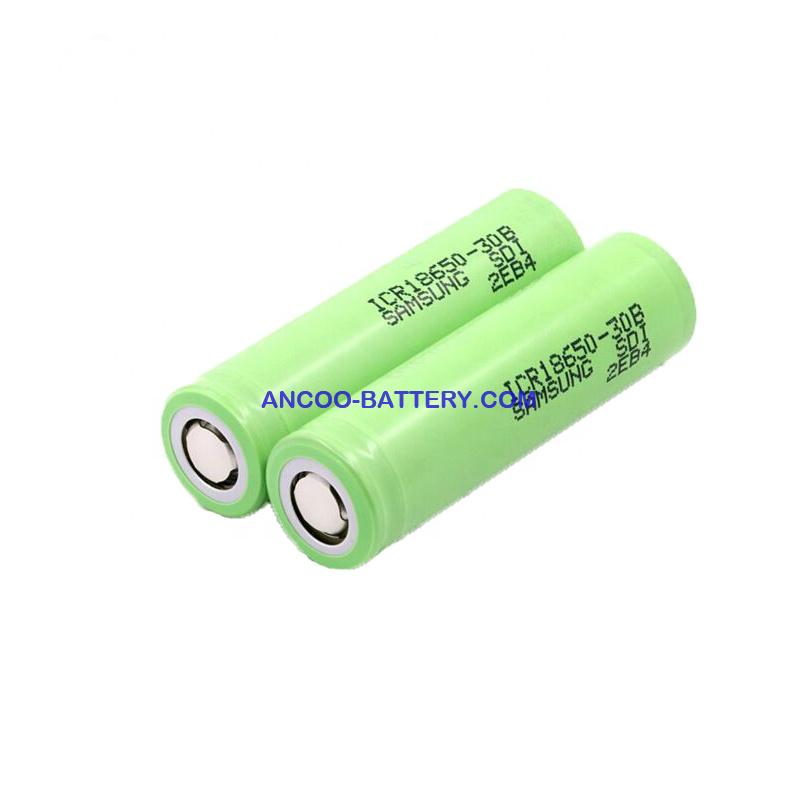

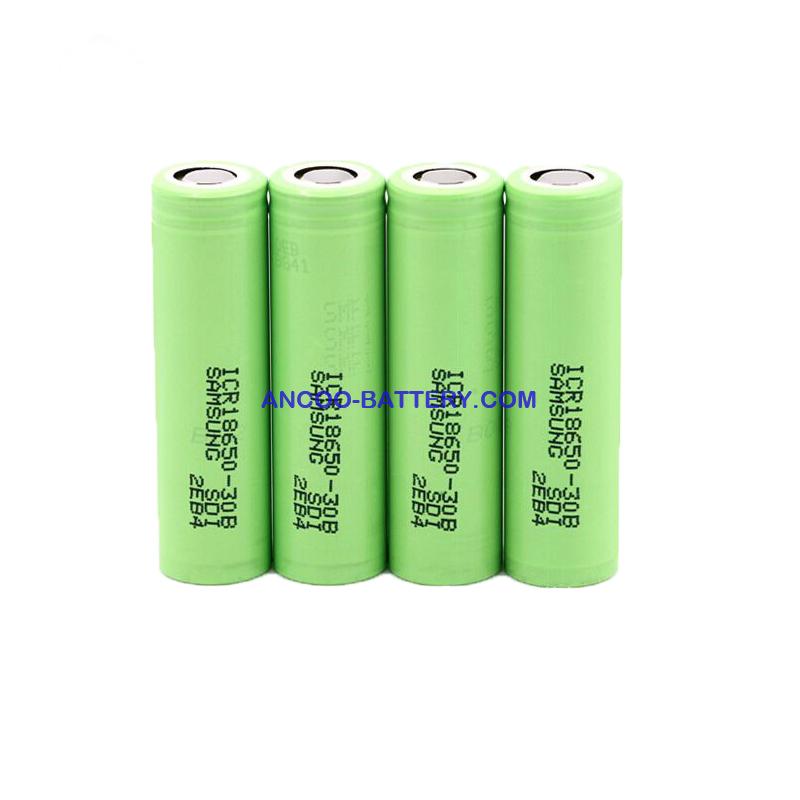

Samsung ICR18650-30B 3000mAh Lithium-ion Battery

MSDS UN38.3 RoHS CB  IEC62133


Product Model ICR18650-30B
Charge cut-off voltage 4.2V
Nominal voltage 3.7V
Nominal capacity 3000mAh @ 1C Discharge
Charge current 1C
Standard charging method 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C
Charging time Standard charge: 3.0 hours Ref
Max. charge current 5C
Max. continue discharge current 2C (Cell skin temperature cannot exceed 85°C)
Discharge cut-off voltage 2.7V
Operating temperature Charging:  0°C ~ 45°C
Discharging:  -20°C ~ 60°C
(Cell skin temperature cannot exceed 70°C)
Storage temperature/humidity Temperature -10°C ~ +35°C
Humidity 65%±20%RH
(Recommended to store 23 ± 5°C for long term storage)
Cell Weight 50g
Cell Dimension Length: 65mm
Width: 18mm
