Panasonic Li-ion cells

  • Panasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cell
  • Panasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cell
  • Panasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cell
Panasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cellPanasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cellPanasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cell

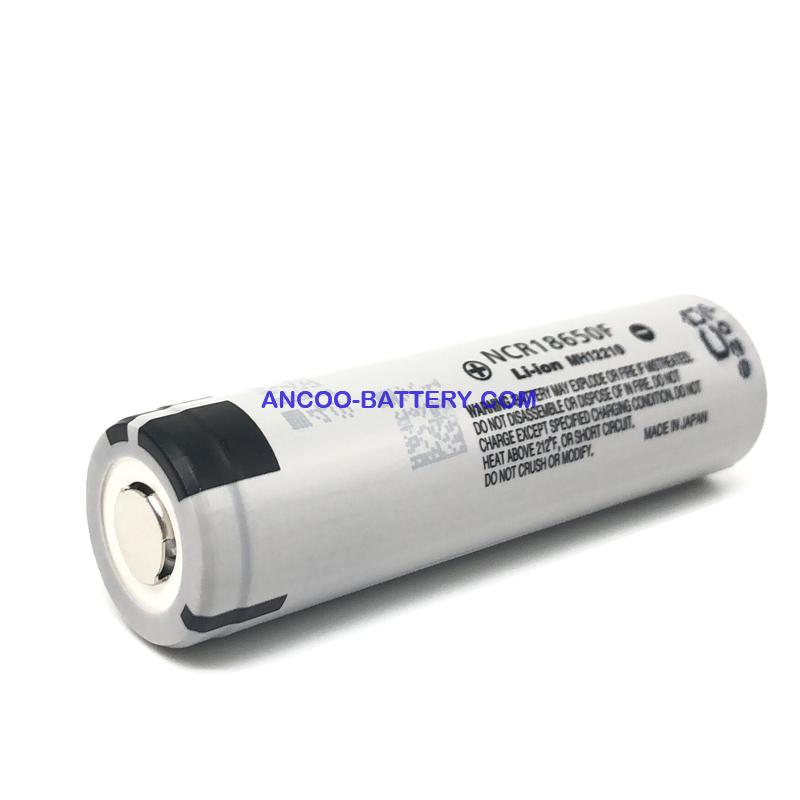

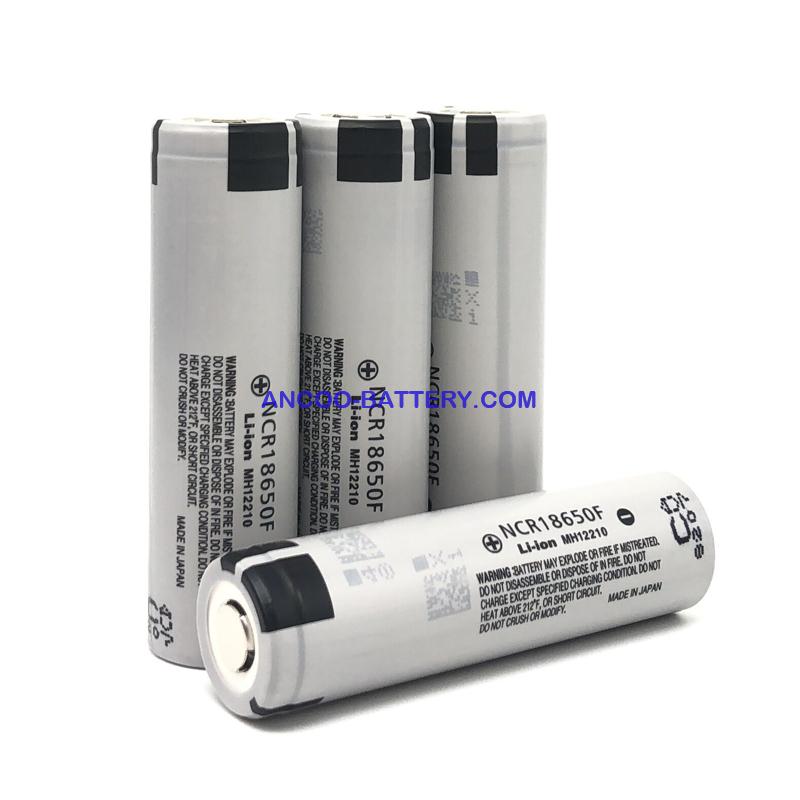

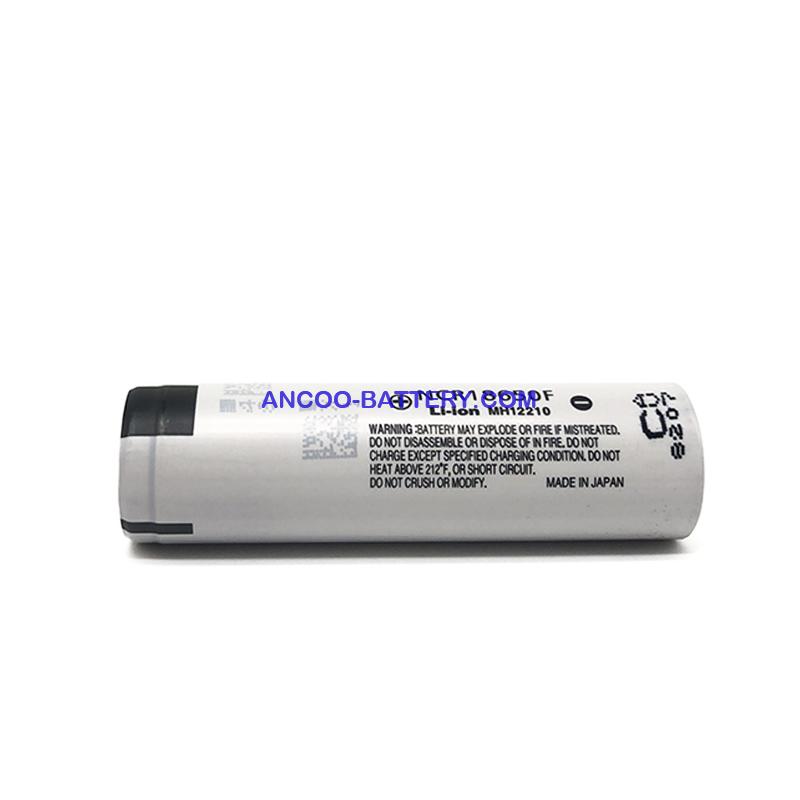

Panasonic NCR18650F 2900mAh 3.6V Low Temperature Li-ion cell

Panasonic NCR18650F 2900mAh Low Temperature Lithium-ion cell

with MSDS UN38.3 RoHS BIS CB IEC62133

Rated capacity Min. 2700mAh
Capacity Min. 2750mAh  Typ.2900mAh
Nominal voltage 3.6V
Charging  CC-CV, Std. 1375mA, 4.20V, 4.0 hrs
Weight (max.)  46.5g
Temperature Charge*: 0 to +45°C
 Discharge: -20 to +60°c
 Storage: -20 to +50°c
Energy density Volumetric: 577 Wh/l Gravimetric: 214 Wh/kg
