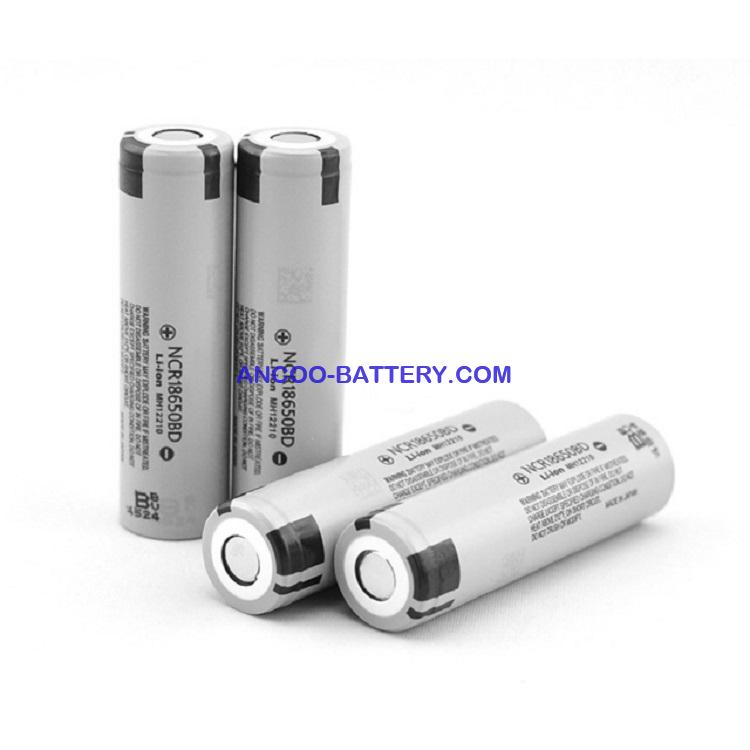

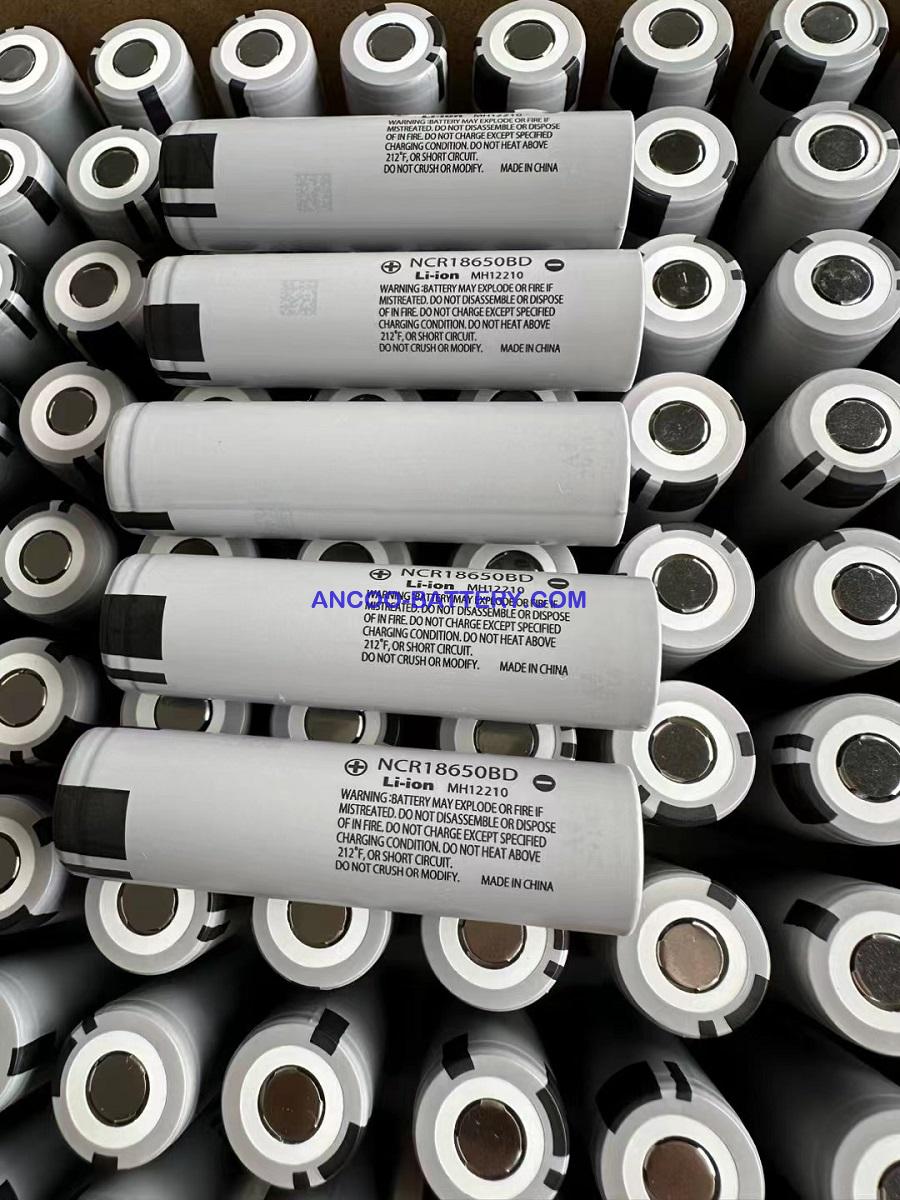

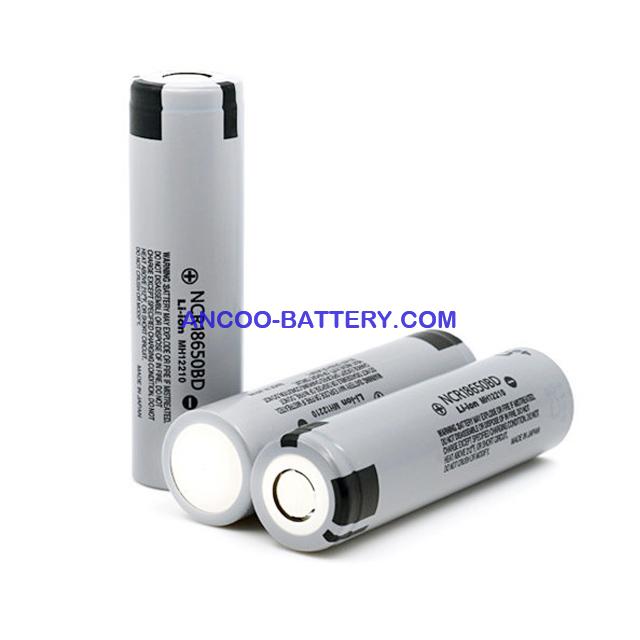

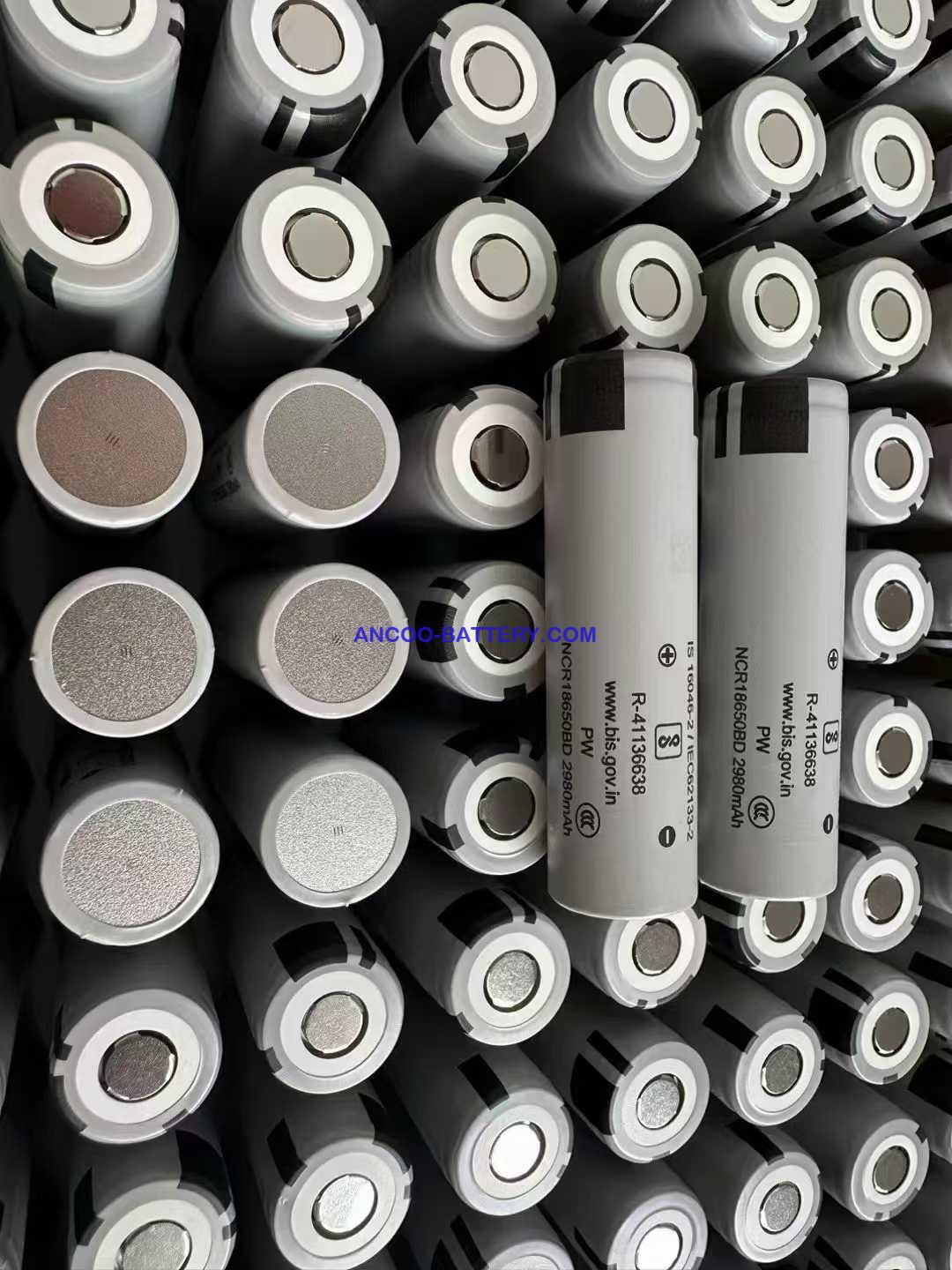

Panasonic NCR18650BD 3200mAh 3.6V Lithium-ion cell

NCR18650BD is an upgrade Panasonic 18650 cell from older models like the NCR18650B. This 18650 battery model is ideal for electric vehicles as it has a great capacity (3200 mAh) and 10A max discharge current. Good for EV cars, HID Torch, R/C hobby, Power Tools, R/C helicopter, DC Power Tools and other high rate digitals. The NCR18650BE is equivalent model with NCR18650BD but BE rated only 3.6A max discharge current.


Nominal Specifications

Nominal Capacity: 2980mAh (3030minimum, 3180mAh Typical)
Nominal Voltage: 3.6V
Discharge End Voltage: 2.5V
Standard Charging Current: 909mA, 0.3C
Charging Voltage: 4.20
Max. Discharging Current: 10A, 3C
Internal Resistance: less than 35mΩ
Weight: 49.5g
Energy Density: 630Wh/l, 217Wh/Kg

MSDS UN38.3 RoHS CB IEC62133


BD VS BE

BD VS BE Capacity test

BD VS 25R 2A

BD VS 25R 5A

Panasonic NCR18650BD specification

Panasonic NCR18650BD datasheet

Panasonic NCR18650BD

Panasonic NCR18650BD discharge characteristics

Panasonic NCR18650BD cycle
