Panasonic Li-ion cells

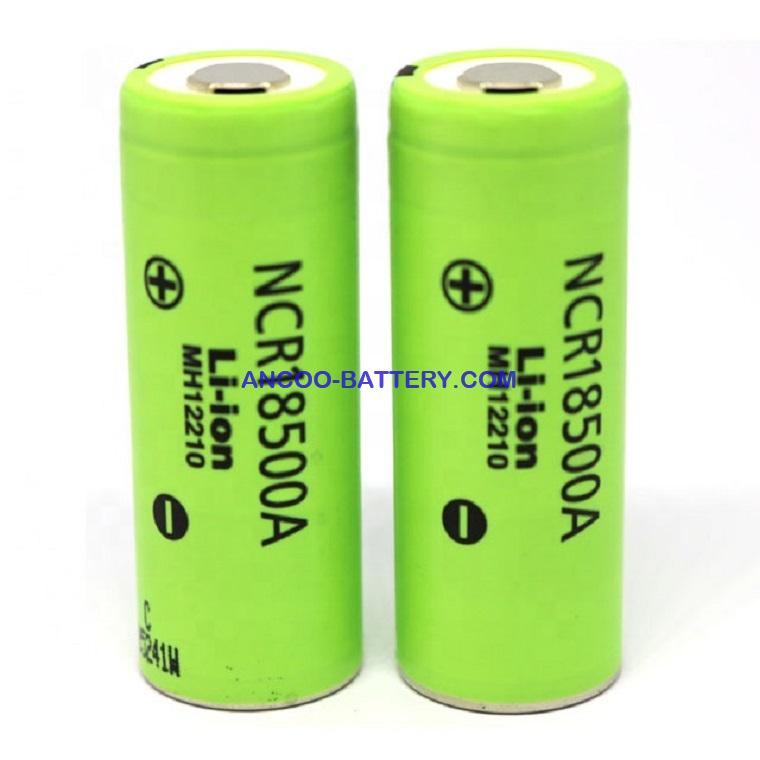

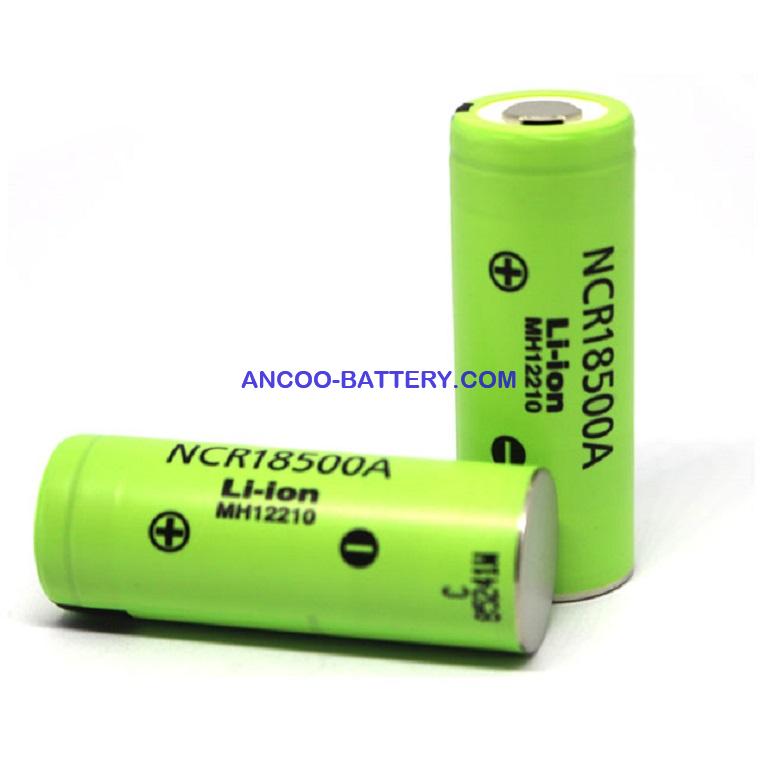

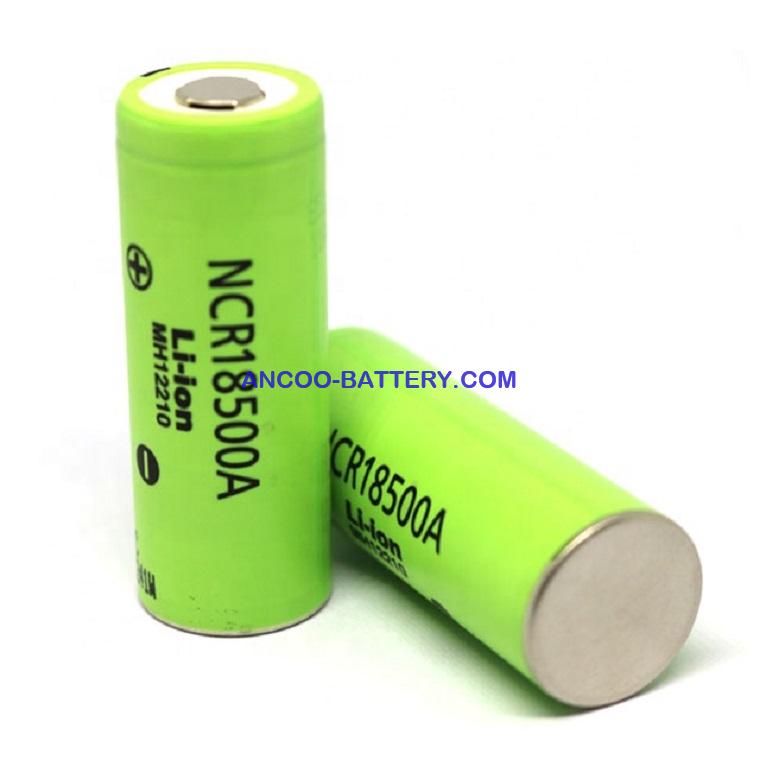

  • Panasonic NCR18500A 2040mAh 3.6V Li-ion cell
  • Panasonic NCR18500A 2040mAh 3.6V Li-ion cell
  • Panasonic NCR18500A 2040mAh 3.6V Li-ion cell
Panasonic NCR18500A 2040mAh 3.6V Li-ion cellPanasonic NCR18500A 2040mAh 3.6V Li-ion cellPanasonic NCR18500A 2040mAh 3.6V Li-ion cell

Panasonic NCR18500A 2040mAh 3.6V Li-ion cell

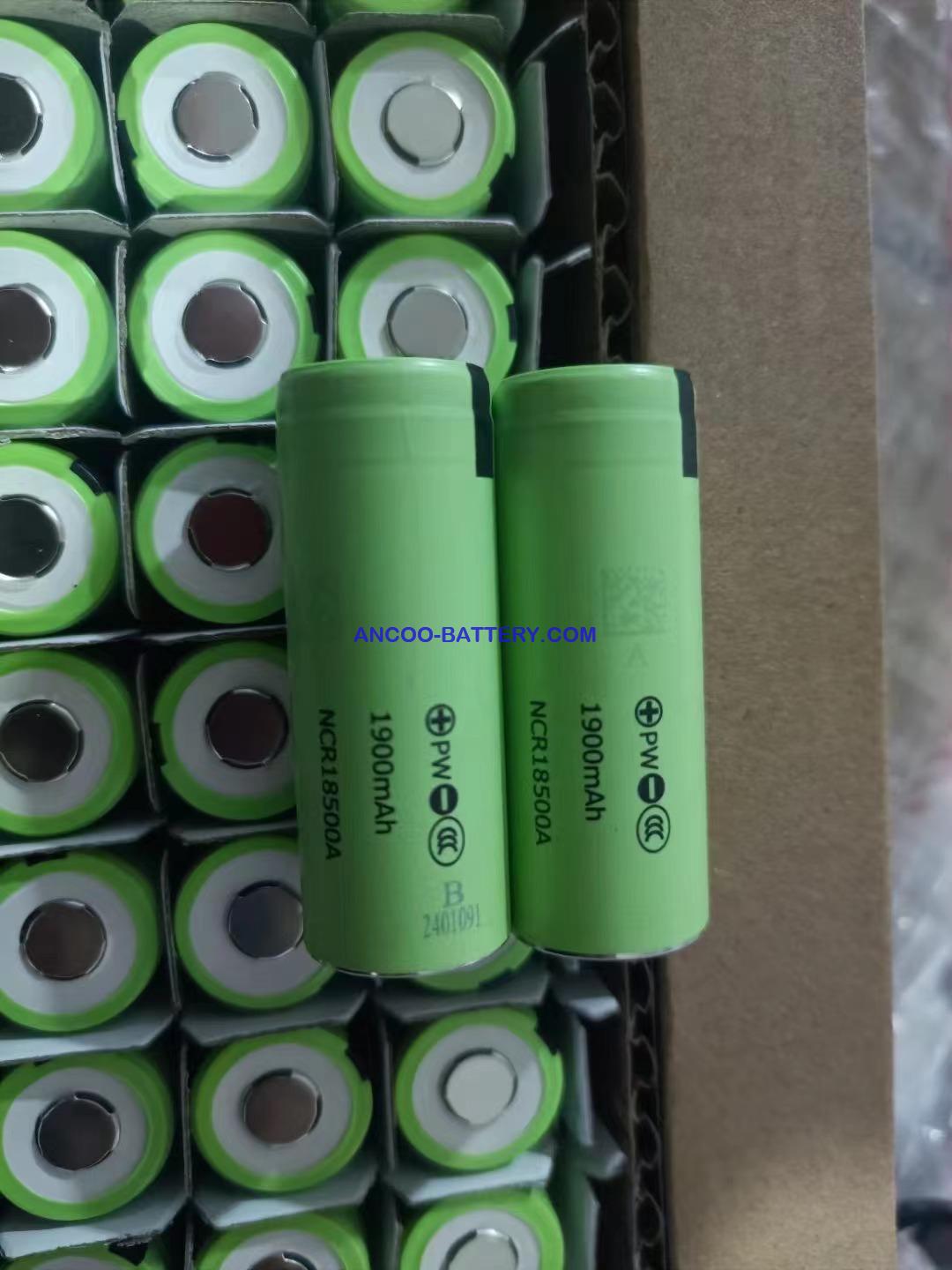

Panasonic NCR18500A 2040mAh 3.6V Li-ion battery

with MSDS UN38.3 RoHS BIS CB IEC62133

Nominal Specifications
5.1 Rated Capacity 4.20V Charge 1900mAh, 0.388A discharge at 20*C
4.15V Charge* 1840mAh
5.2 Capacity (Minimum) 4.20V Charge 1940mAh, 0.388A discharge at 25°C
4.15V Charge* 1880mAh
5.3 Capacity (Typical) 4.20V Charge 2040mAh Reference only
4.15V Charge*  1975mAh
5.4 Nominal Voltage 4.20V Charge 3.60V 0.388A discharge
4.15V Charge*
5.5 Discharging End Voltage 2.50V
5.6 Charging Current L .oW temp . 0.683A or less l0~10*C
Std. temp. 1. 365A or less 10~45°C
5.7 Charging Voltage 4.20V Charge 4.200.03V
4.15V Charge*  4.15 0.03V
5.8 Charging Time (Std.) 3.0 hours
5.9 Continuous Discharge Current (Max.)*2 3.880A 0~ +40°C
5.10 Internal Resistance less than 100 mQ AC impedance 1 kHz
5.11 Weight less than 34.5g
5.12 Operating Temperature Charge +10~ +45°C Standard temperature range
Discharge -20~ +60°C
