SANYO UF553450Z 1150mAh 553450 Battery

SANYO UF553450Z Li-ion Battery

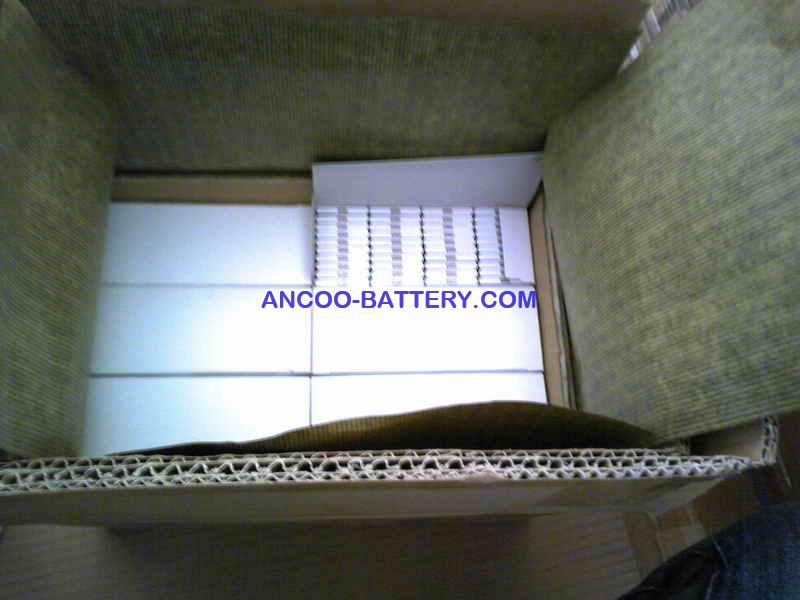

1. In stock, Sanyo 553450 fresh cells, fast shipping by air or sea
2. MSDS UN38.3 UL1642 IEC62133 SGS ISO9001 are available.
3. Model Number UF553450Z(P) 1200mAh (0.2C typ) 1150mAh (0.2C min)
4. Supporting custom battery packs 1S1P, 1S2P, 1S3P, 2S1P, 3S1P, etc..

UF553450Z Datasheet

1. This specification is applied to the SANYO Lithium Ion Battery of the above mentioned type for a Portable telephone

2. Battery Classification and Type
2.1 Battery Classification: Rechargeable Lithium Ion Cell
2.2 Battery Type: UF553450Z(P)

3. Nominal Specifications
3.1 Nominal Capacity 1150mAh 0.2CA discharge
3.2 Nominal Voltage 3.70V
3.3 End Voltage 2.75V
3.4 Charging Current (Std.) 1C(=1.15)A 0 ~ +40℃
3.5 Charging Voltage 4.20±0.03V
3.6 Charging Time (Std.) 3hours
3.7 Discharging Current (Std.) 1.15A -20 ~ +60℃
3.8 Discharging Current (Max.) 2.30A 0 ~ +40℃
3.9 Internal Resistance less than 80mΩ AC Impedance 1kHz
3.10 Weight less than 22.3g

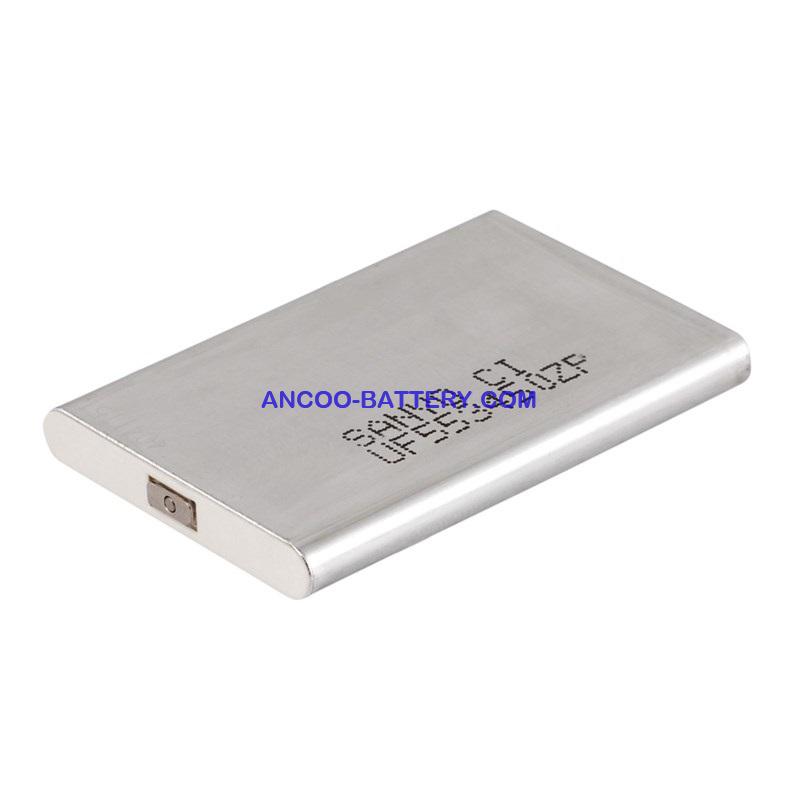

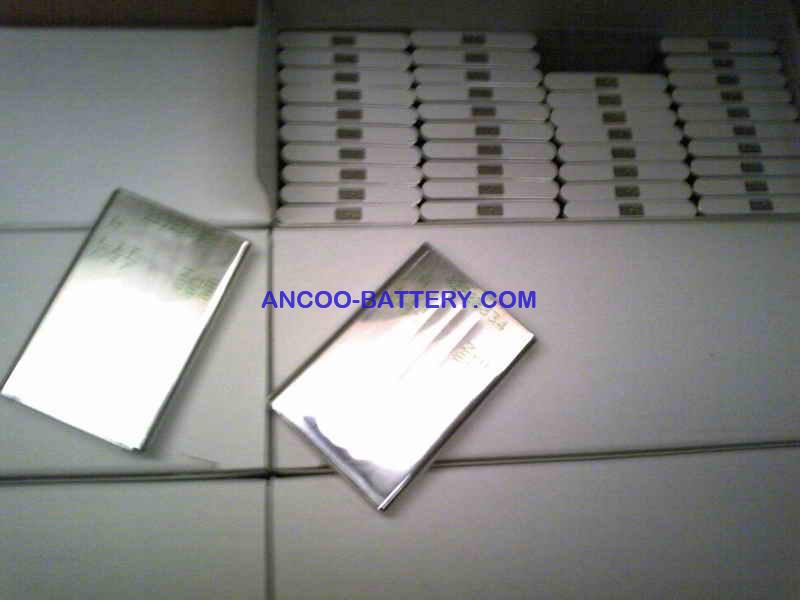

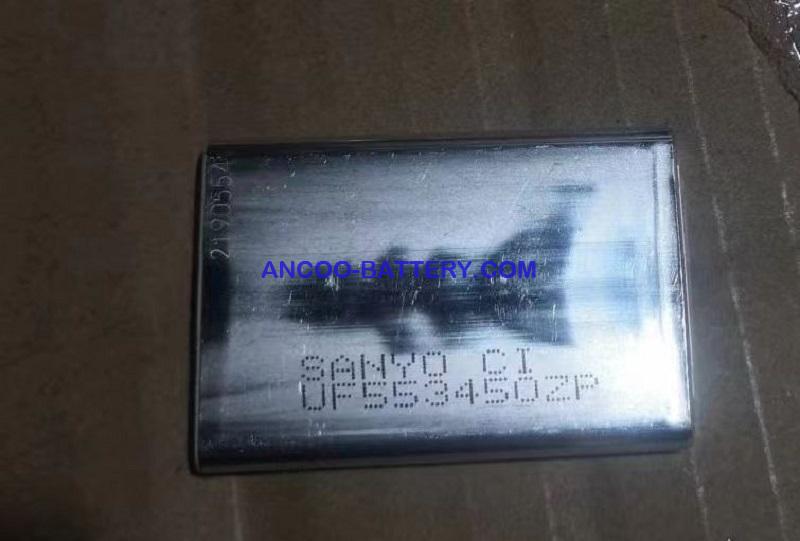

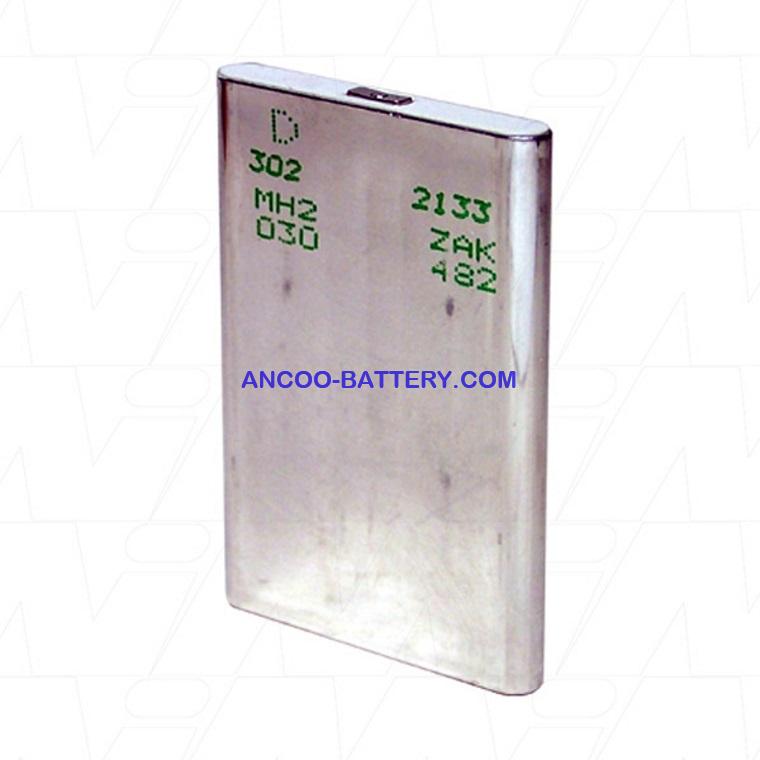

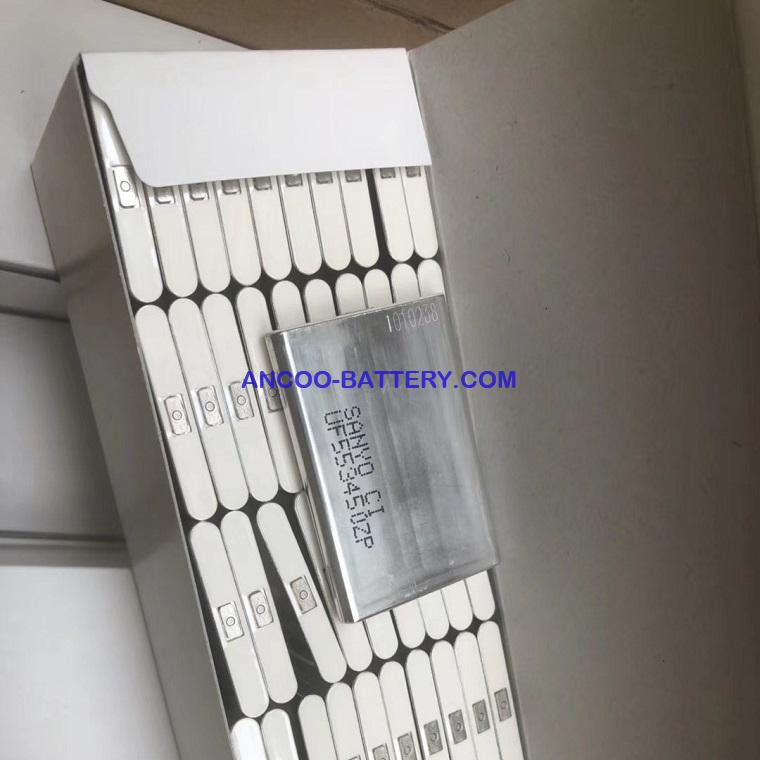

SANYO UF553450Z cells

UL File Number: BBCV2.MH12383
IEC CB Certificate Number: NL-78004/A1 (18th April 2022) IEC 62133-2:2017/AMD1:2021

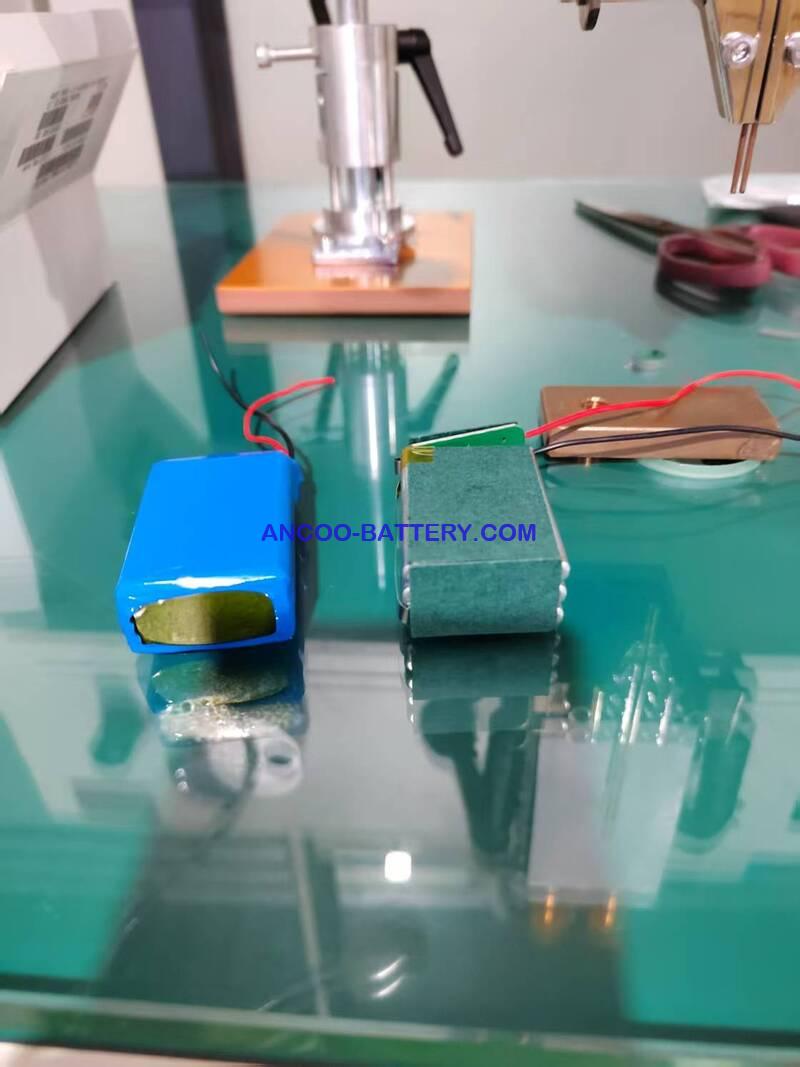

UF553450Z Custom Battery Packs

1S1P: 3.7V, 1150mAh
1S2P: 3.7V, 2300mAh
1S3P: 3.7V, 3450mAh
2S1P: 7.4V, 1150mAh
