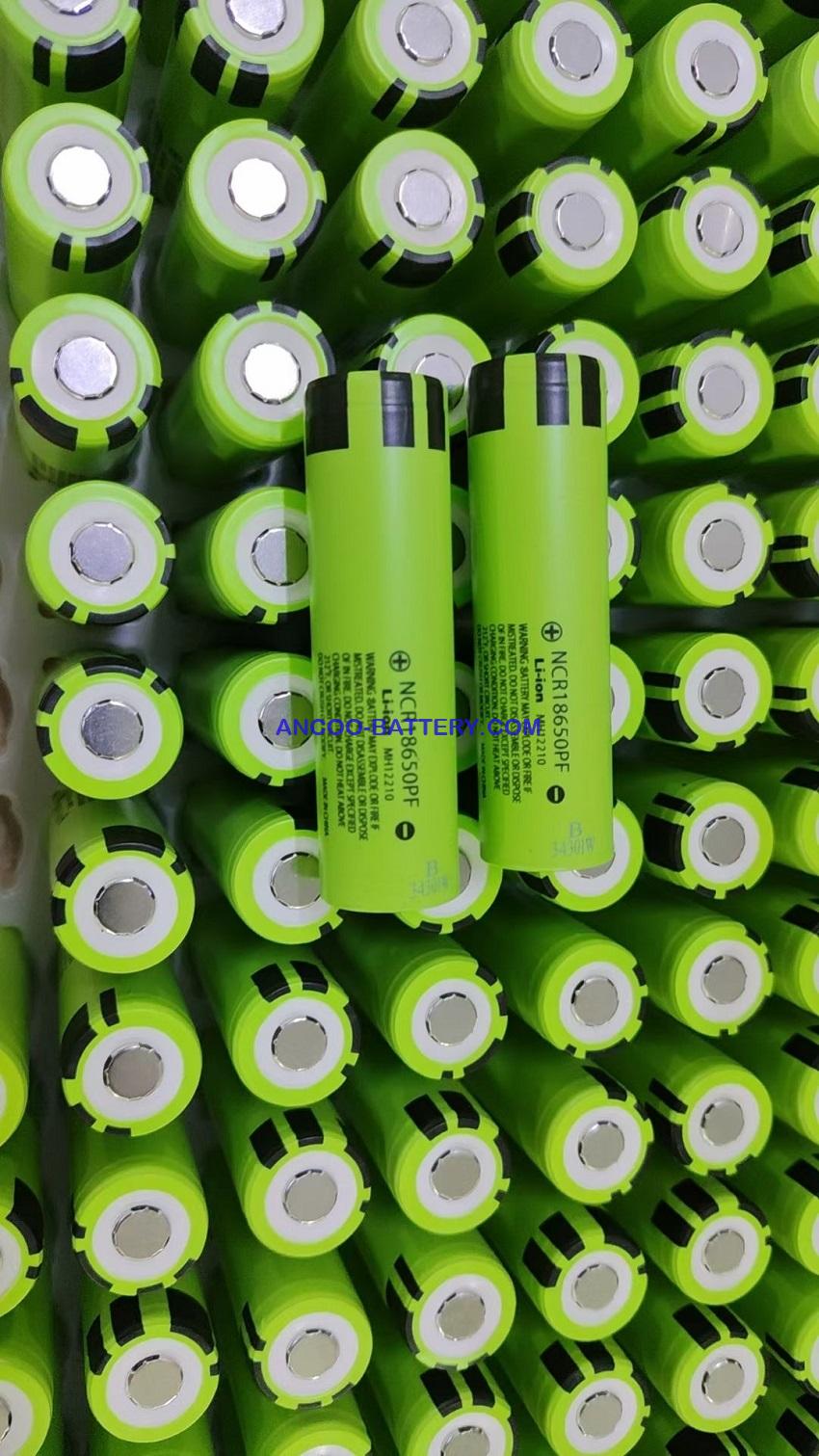

Panasonic NCR18650PF 2900mAh 3.6V Lithium-ion cell

NCR18650PF is newer improved Panasonic 18650 cell with NNP and HRL technology which increase the capacity while prevents overheating even in the case of an internal short-circuit. It comes with high energy and power density, long, stable, high power, high safety performance. Ideal for power assisted bicycles, 2-way radios, medical devices, robotics,flashlights, portable phone chargers, small power tools, etc.


Nominal Specifications

Nominal Capacity: 2700mAh (2750minimum, 2900mAh Typical)
Nominal Voltage: 3.6V
Discharge End Voltage: 2.5V
Standard Charging Current: 1375mA
Charging Voltage: 4.20
Max. Discharging Current: 10A
Internal Resistance: less than 35mΩ
Weight: 48g
Energy Density: 577Wh/l, 207Wh/Kg

MSDS UN38.3 RoHS CB IEC62133 UL1642

pf datasheet

PD and PF

pd and pf temp


NCR18650PF Discharge

NCR18650PF cycle life
