Panasonic Battery Cells

Panasonic NCA103450 2350mAh cells

INQUIRY

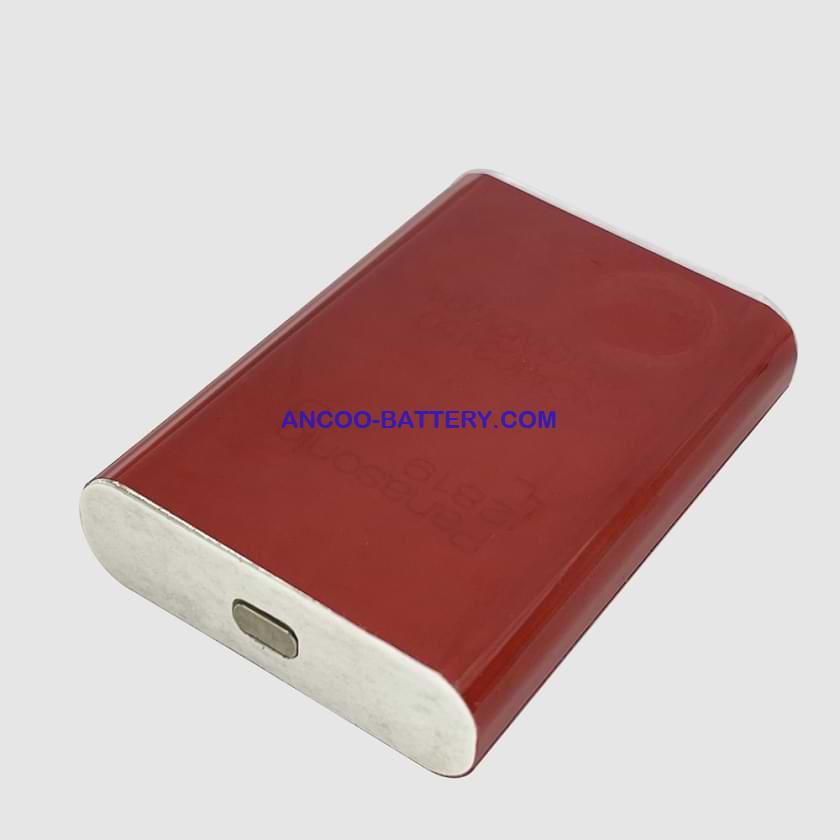

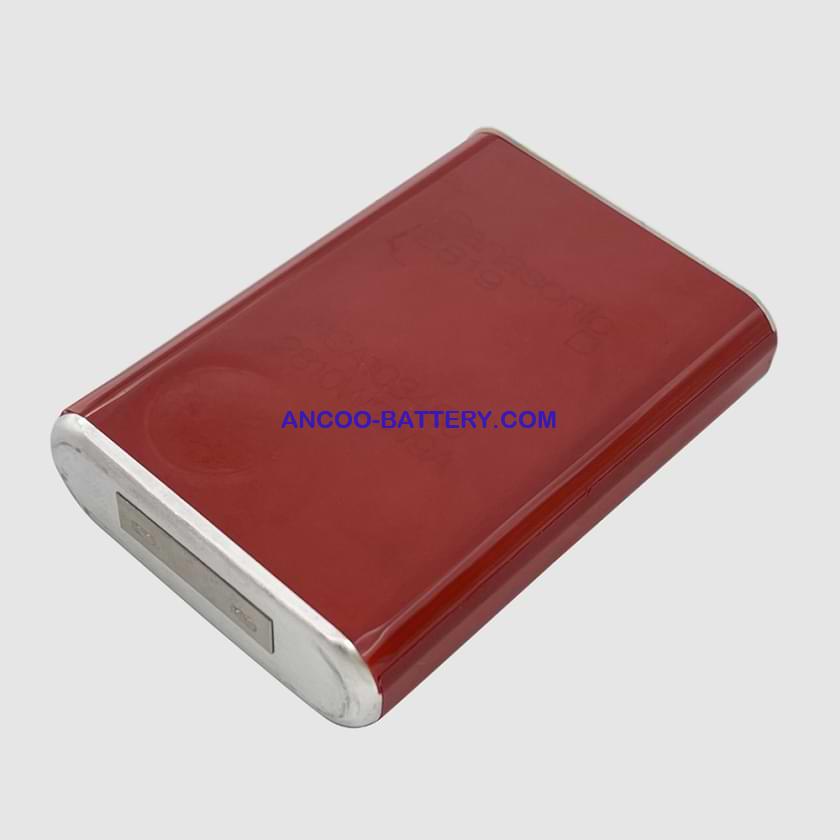

NCA103450 Panasonic 103450 Li-ion battery cells

>50K in stock! We have 2 types of NCA103450. Fast shipping by sea or air, we hold full Product Specification, MSDS UN38.3 UL1642 BIS PSE BSMI CB IEC62133-2 and Test Reports.

Specifications of Panasonic NCA103450

5.1 Rated Capacity 2200mAh 0.44A discharge at 20°C
5.2 Capacity (Minimum) 2270mAh 0.454A discharge at 25°C
5.3 Capacity (Typical) 2350mAh Reference only
5.4 Nominal Voltage 3.6V 0.454A discharge
5.5 Discharging End Voltage 2.75V
5.6 Charging Current (Std.) 1.589A
5.7 Charging Voltage 4.20 ± 0.03V
5.8 Charging Time (Std.) 4.0 hours
5.9 Continuous Discharge Current (Max.) 4.54A, 0 ~ +40°C
5.10 Internal Resistance less than 100m AC impedance 1 kHz
5.11 Weight less than 38.6g
5.12 Operating Temperature

Charge +10 ~ +45°C Standard temperature range
Discharge -20 ~ +60°C
