Molicel Battery Cells

MOLICEL P28A 18650 Battery 2800mAh 35A Battery

MOLICEL P28A 18650 Battery 2800mAh 35A Battery

INQUIRY

INR18650-P28A Lithium-ion Cells

>100K in stock, fast shipping by air or ocean from China.
We hold full Specification, CB IEC62133, UL1642, BIS, PSE, MSDS and UN38.3 Test Reports.

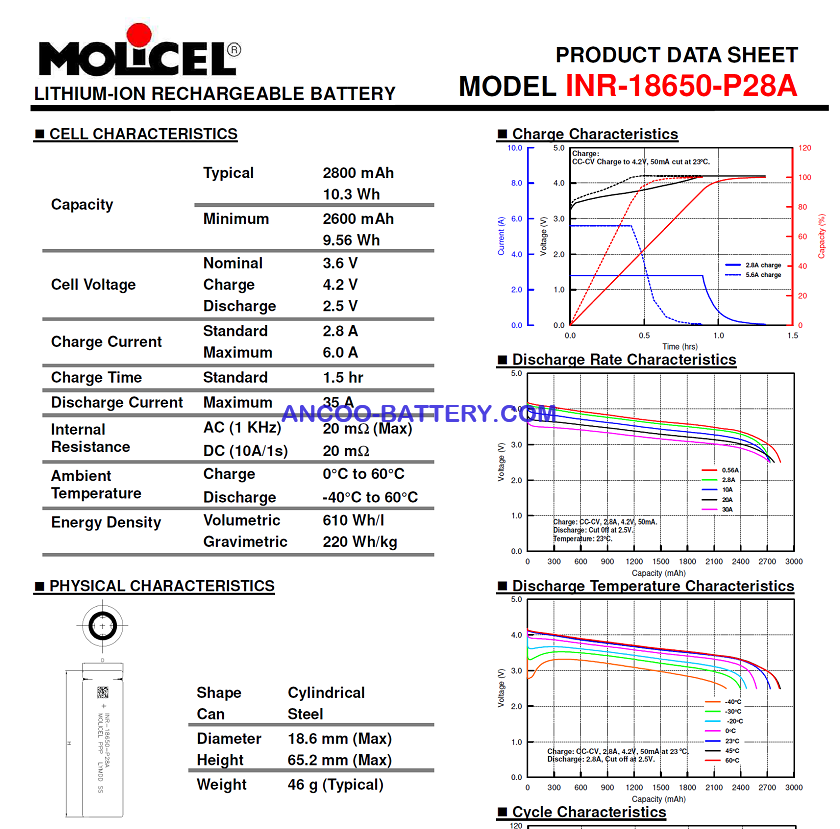

MOLICEL P28A Data sheet

Cell Model: INR18650-P28A
Typical Capacity: 2800mAh 10.3Wh
Minimum Capacity: 2600mah 9.56 Wh
Cell Voltage: Nominal 3.6V
Discharge Current: Maximum 35A
Ambient Temperature: charge 0°C to 60°C, discharge -40°C to 60°C

INR-18650-P28A Datasheet

MOLICEL P28A 18650 Battery

MOLICEL P28A 18650

Model INR-18650-P28A

File Number: MH65838

E-One Moli Energy Corp

Southern Taiwan Science Park
10 Dali 2nd Rd
Shanhua District
Tainan, 74144 Taiwan

Model Info

INR-18650-P28A

Ratings
Chemistry	Form Factor	Standard	Nominal Voltage (Vdc)	Capacity (Ah)	Use Temperature Range (°C)	Maximum Charging Current (A)	Maximum Charging Power (W)	Maximum Charging Voltage (Vdc)	Maximum Discharge Current (A)	Maximum Discharge Power (W)
Li(NiCoAl)O2	Cylindrical	ANSI/CAN/UL 1973	3.6	2.7	-20 to 60 for charge, -40 to 60 for discharge (The cell surface temperature 80 for charge and discharge)	8.4		4.25	35
