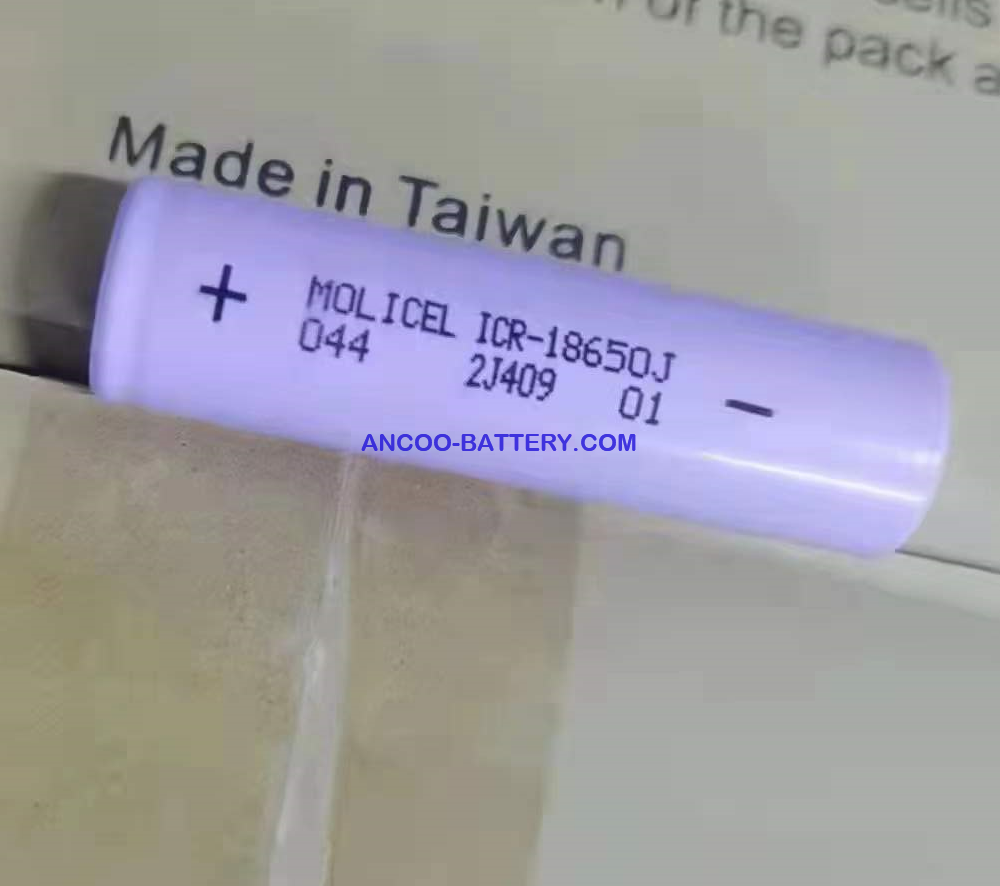

MOLICEL ICR-18650J 2.4Ah 3.7V Lithium-ion Battery

MOLICEL ICR-18650J Lithium-ion Battery Cells

MSDS UN38.3 RoHS UL1642 UL62133 CB IEC62133

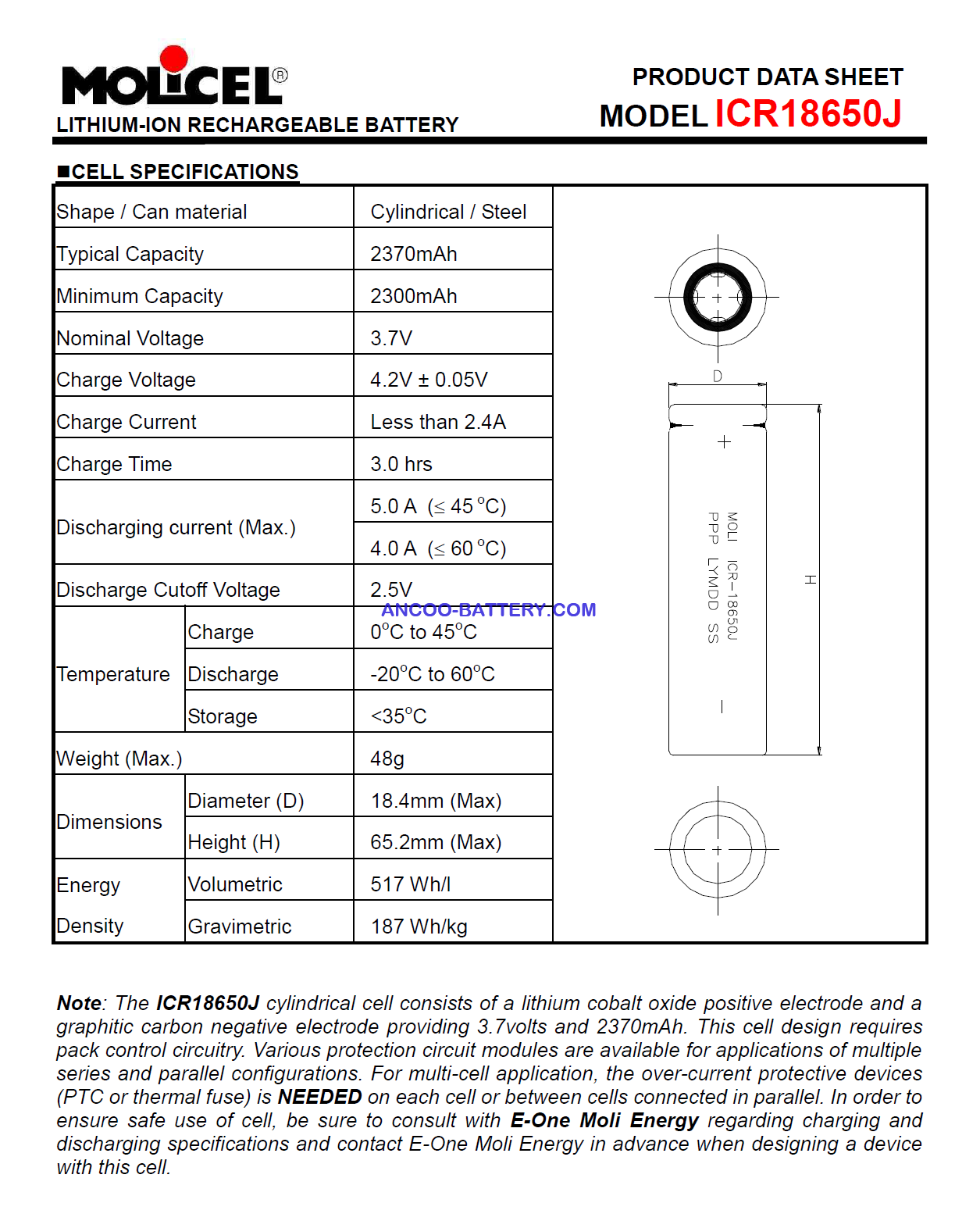

Specifications:

1a Rated charge Limiting: 2.4A and constant 4.2V charge for 3 hours at 23°℃.
1b Recommended charge Limiting: 1.25A and constant 4.2V charge for 3hours at 23℃.
2 Rated discharge Constant: 0.48A discharge until 3.0V at 23°C.
3 Rated capacity: 2.37 Ah Rated discharge capacity after rated charge
4 Nominal voltage: 3.7V Mean voltage during rated discharge afterrated charge.
5 Shipping voltage: ≥3.75V Nominal approximate state of charge=50%
6 Internal resistance: ≤ 80mΩ ByAC Impedance 1kHz
7 End of charge voltage: 4.20±0.05V
8 End of discharge voltage: 3.0V
9 Charging time" 3 hours Recommended charge.
10a Maximum continuous charging current: 2.4A Present UL approval level.
10b Maximum continuous discharging current: ≤45℃ 5.0A, ≤ 60℃ 4.0A (Maximum permitted discharge current to avoid activation of PTC in header.)
11 Operating temperature Charging 0~45℃, Discharging -20~60℃
