Molicel Li-ion cells

  • MOLICEL P26A 18650 2600mAh 3.6V Lithium-ion Battery
  • MOLICEL P26A 18650 2600mAh 3.6V Lithium-ion Battery
  • MOLICEL P26A 18650 2600mAh 3.6V Lithium-ion Battery
MOLICEL P26A 18650 2600mAh 3.6V Lithium-ion BatteryMOLICEL P26A 18650 2600mAh 3.6V Lithium-ion BatteryMOLICEL P26A 18650 2600mAh 3.6V Lithium-ion Battery

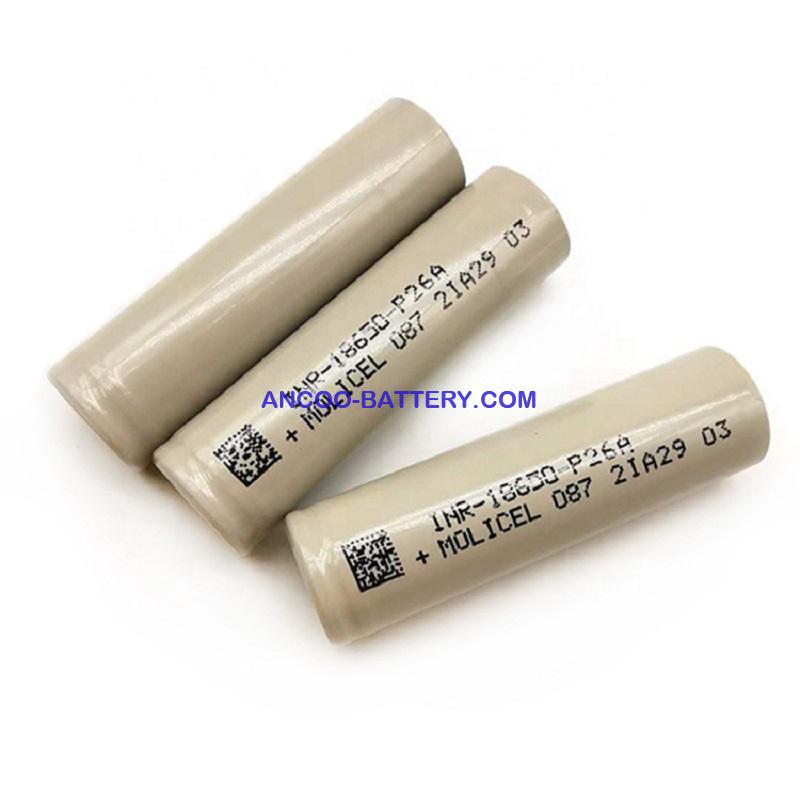

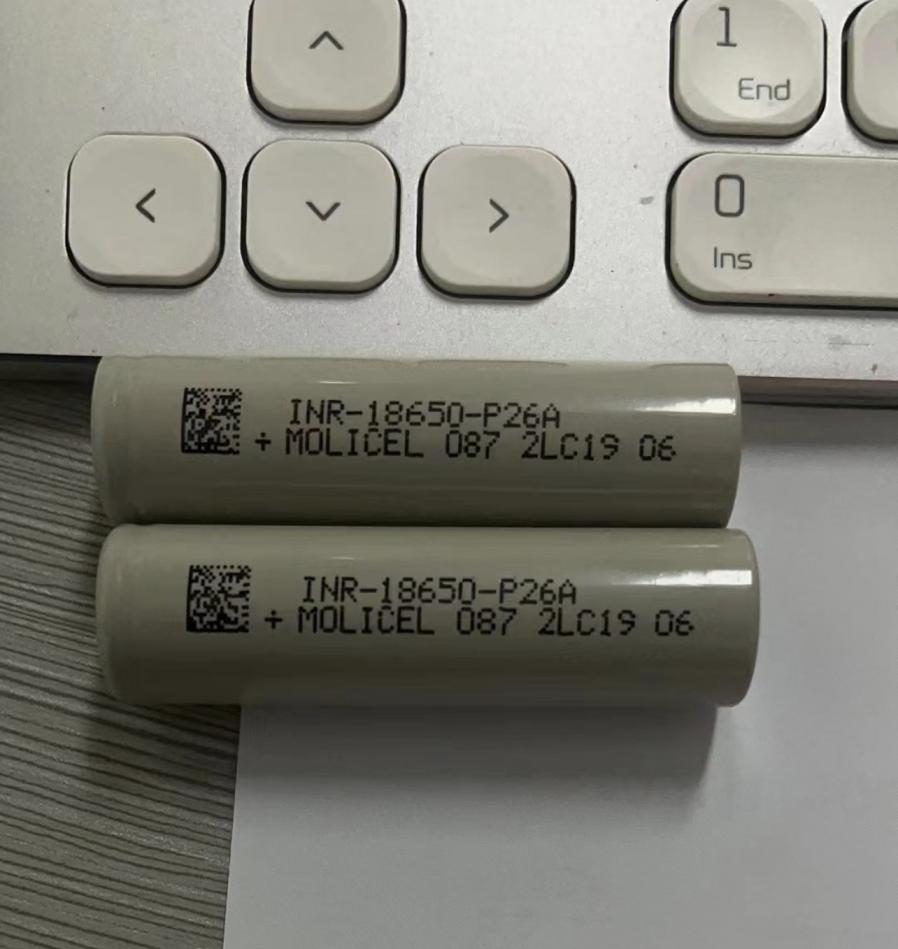

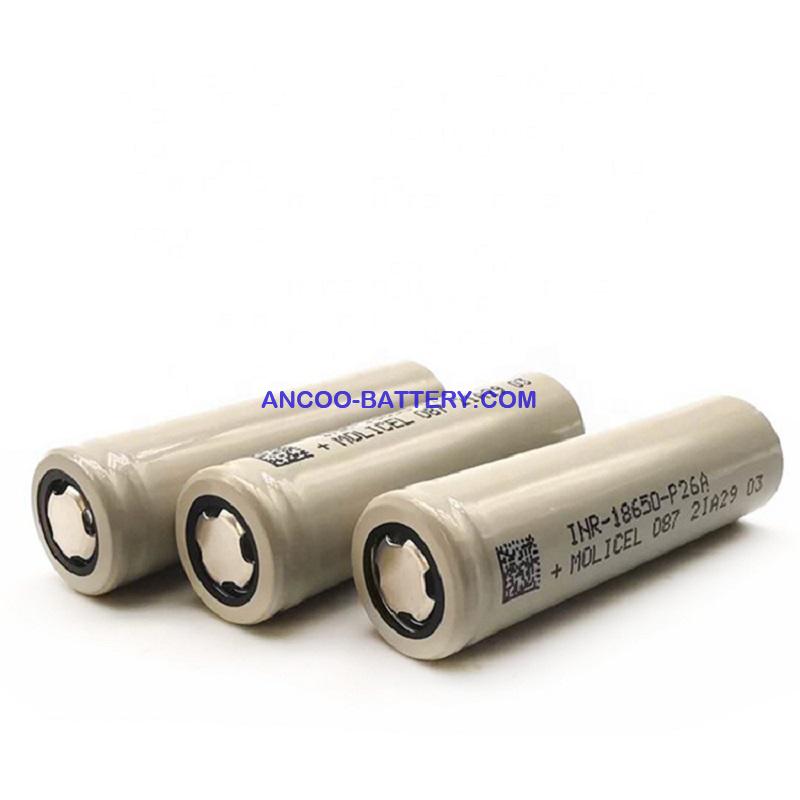

MOLICEL P26A 18650 2600mAh 3.6V Lithium-ion Battery


MOLICEL INR-18650-P26A Lithium-ion Battery

MSDS UN38.3 RoHS UL1642 BIS CB IEC62133 are passed


Typical Capacity 2600mAh 9.5Wh
Cell Voltage
Nominal 3.6 V
Charge 4.2 V
Discharge 2.5 V
Charge Current
Standard 2.6A
Maximum 6.0A
Charge Time Standard 1.5 hr
Discharge Current Maximum 35A
Ambient Temperature
Charge 0°C to 60°C
Discharge -40°C to 60°C
Energy Density
Volumetric 535 Wh/l
Gravimetric 190 Wh/kg
