Sanyo Lithium-ion Cells

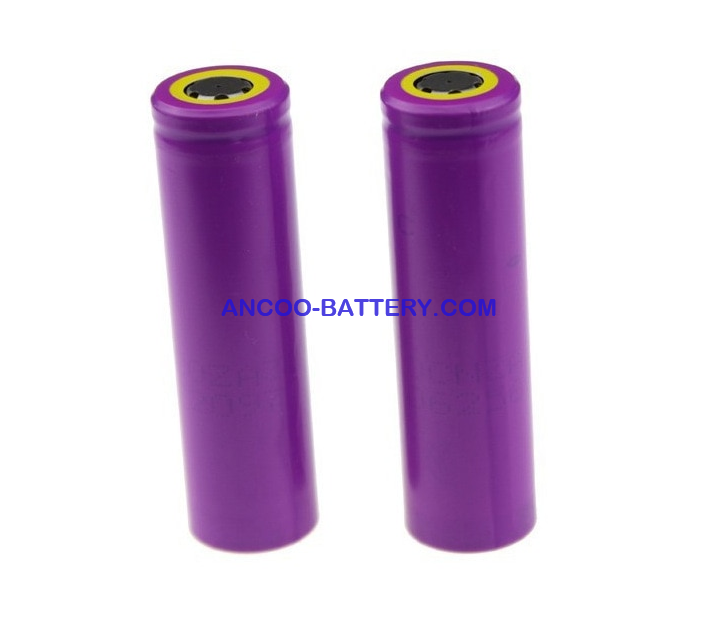

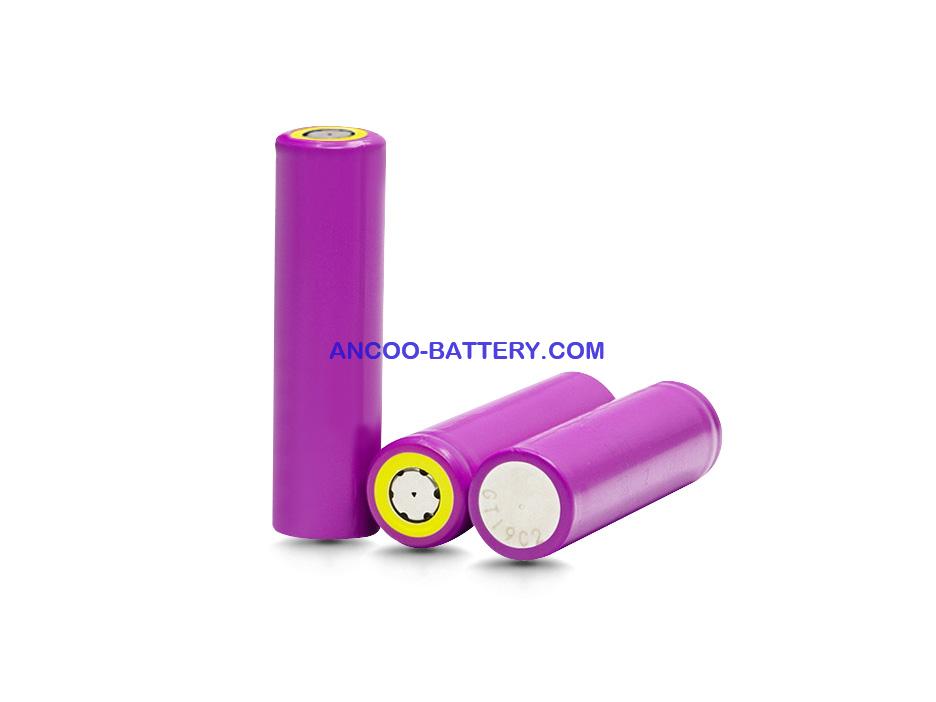

SANYO UR18650ZTA 2900mAh 4.35V 18650 cells

>50K In stock, fast shipping by air or ocean from China.
We hold full Specification SDS UL1642 CB IEC62133 and UN38.3 test reports.

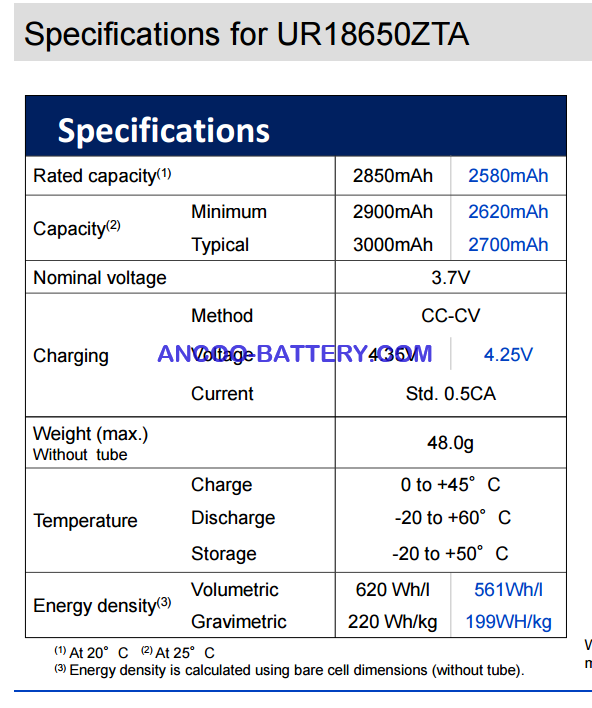

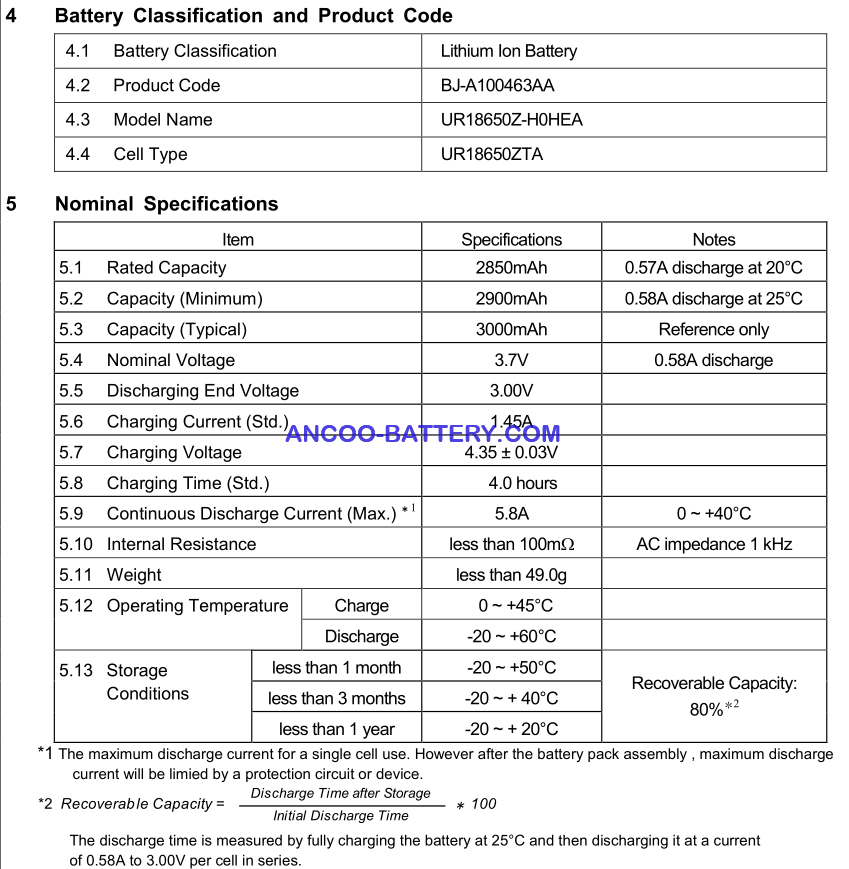

Items	Specifications	Notes
Nominal capacity	Min. 2900mAh	0.2C discharge, 3.0V cut
Nominal voltage	3.8V
Nominal energy	11.1Wh	Capacity(Ah) × Voltage(V)
Charging voltage	4.35V
Charging current	600mA 丨1450mA	Standard丨Rapid
Charging time	6.0 hours 丨4.0 hours	Standard丨Rapid
Charging method	CC - CV	Constant current, constant voltage
Continuous discharge current	600mA 丨5.8A	Standard丨Maximum
Peak discharge current	8A	Within a short time
Discharge end voltage	3.0V	Discharge cut-off voltage
Dimensions	18.2mm丨65mm	Diameter丨Height
Typical weight	48g	1.69 oz
Charge temperature range	+0 ~ +60°C	+50 ~ 110°F
Discharge temperature range	-10 ~ +45°C	-4 ~ +140°F
Storage temperature	-10 ~ +45°C	Within 3 months
