Molicel Li-ion cells

  • Molicel ICP103450CA with fuse 1960mAh 3.7V 103450 Lithium-ion Battery
  • Molicel ICP103450CA with fuse 1960mAh 3.7V 103450 Lithium-ion Battery
Molicel ICP103450CA with fuse 1960mAh 3.7V 103450 Lithium-ion BatteryMolicel ICP103450CA with fuse 1960mAh 3.7V 103450 Lithium-ion Battery

Molicel ICP103450CA with fuse 1960mAh 3.7V 103450 Lithium-ion Battery

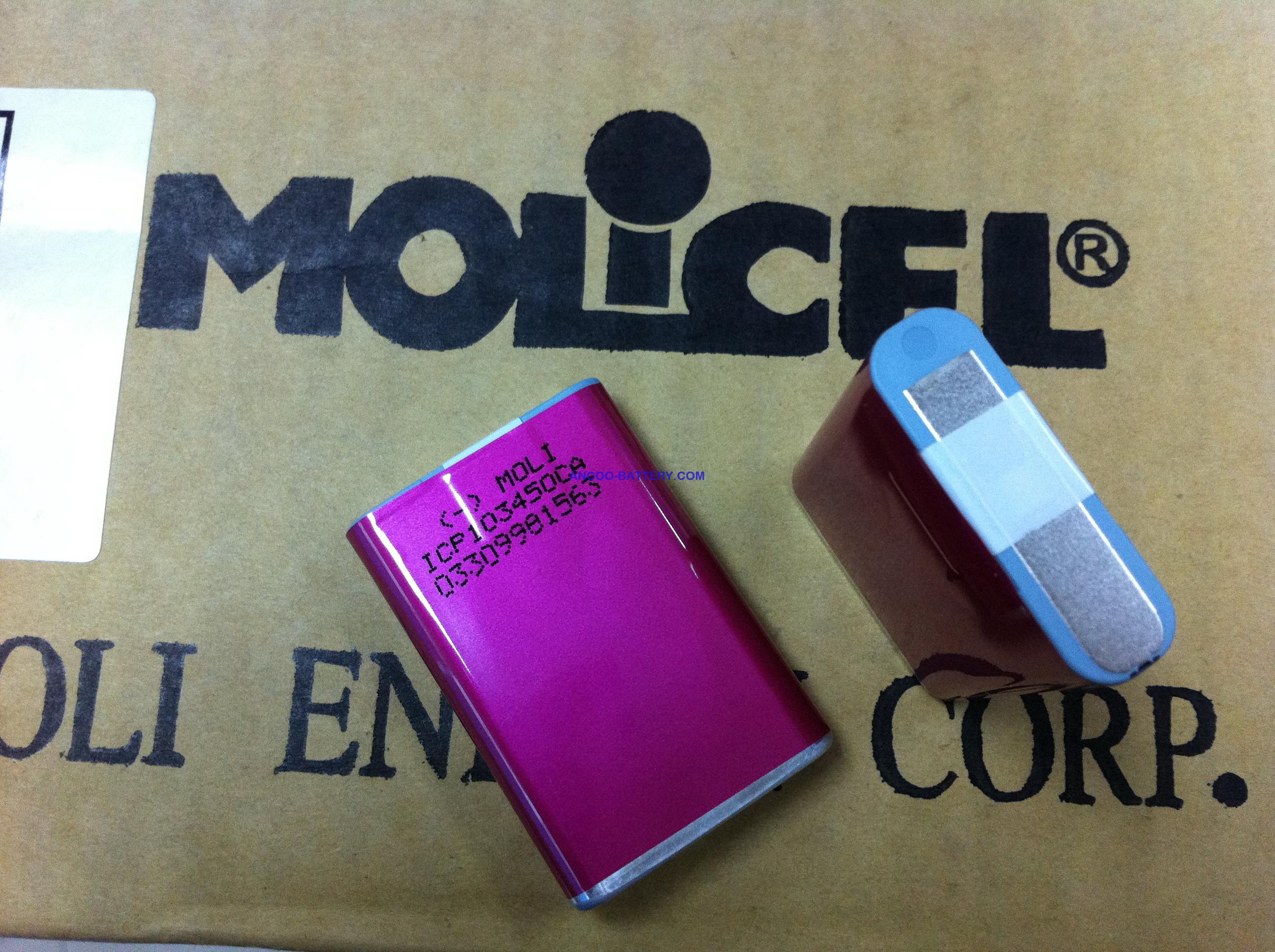

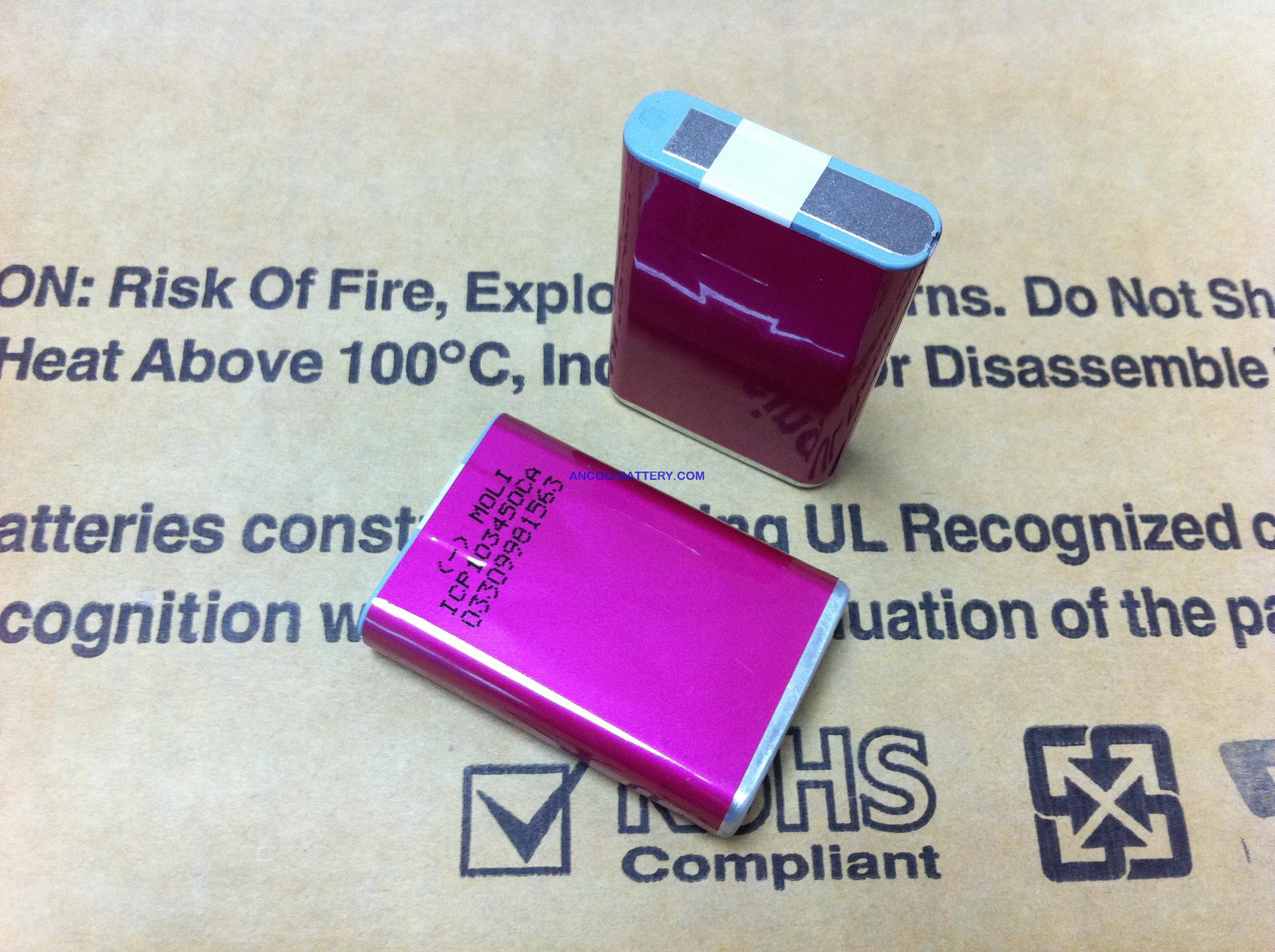

Molicel ICP103450CA Lithium-ion Battery

MSDS UN38.3 RoHS CB UL1642 IEC62133

Shipping by air or sea


Typical Capacity 1960mAh
Minimum Capacity 1900mAh
Nominal Capacity 1900mAh
Nominal Voltage 3.7V
Charge Voltage 4.2V ± 0.05V
Charge Current (Recommendation) Less than 1400mA
Charge Time 3 hrs 2.5A (£ 45 oC)
Discharging current (Max.) 2.0A (£ 60 oC)
Discharge Cutoff Voltage 3.0V
Charge 0oC to 45oC
Temperature Discharge -20oC to 60oC
Storage -20oC to 60oC
Weight (Max.) 41.5g
Thickness* *10.5+0.3/-0.3 mm
**11.5 mm (Max.)
Width (Max.) 34mm
Height (Max.) 50mm
Tab Dimensions (Positive) 5 x 20 mm
Energy Volumetric 403 Wh/l

Density Gravimetric 178 Wh/kg
