General Information:
1.1 Scope: This product specification defines the requirements of the rechargeable lithium ion battery.
1.2 Application: Power Tools
1.3 Product classification: Cylindrical

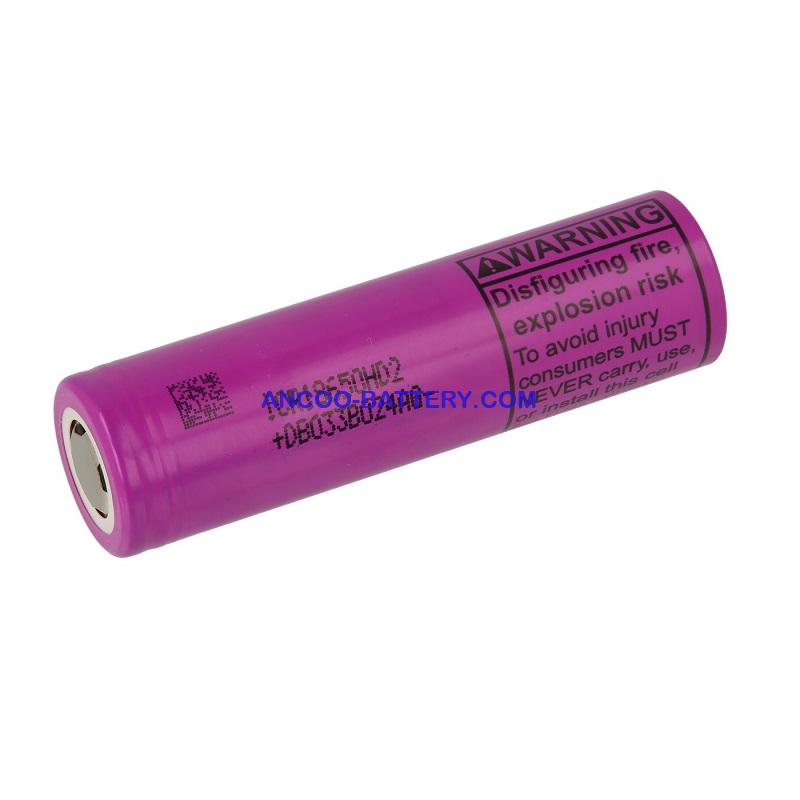

1.4 Model name: ICR18650HD2
2. Nominal Specification
2.1 Nominal Capacity Std.charge/ discharge 2000mAh(Cnom)
2.2 Nominal Voltage Average for Std.discharge 3.65V
2.3.1 Standard Charge: Constant current 1250mA, Constant voltage 4.2V End condition(Cut off) 50mA
2.3.2 Fast charge: Constant current 4000mA Constant voltage 4.2V End condition(Cut off) 100mA
2.4 Max ChargeVoltage 4.2V
2.5 Max.Charge Current 4000mA
2.6.1 Standard Discharge Constant current 400mA End voltage(Cut off) 2.5V
2.6.2 Fast Discharge Constant current 20A End voltage(Cut off) 2.5V
2.7 Max.Discharge Current For continuous discharge 25A
2.8 Weight Max. 48.0g
