INR18650MJ1 LG MJ1 18650 3500mAh Battery

INR18650MJ1 LG MJ1 18650 3500mAh Battery

INQUIRY

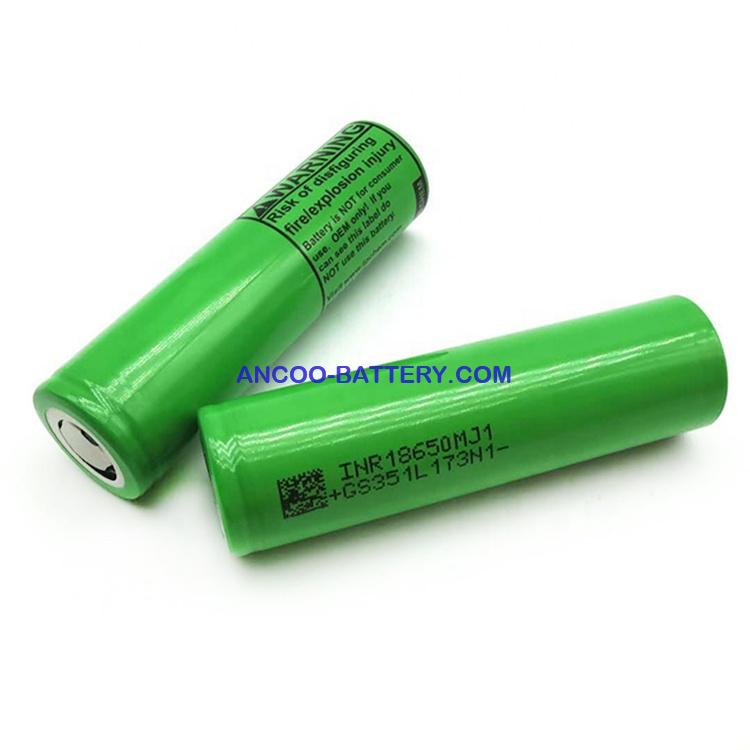

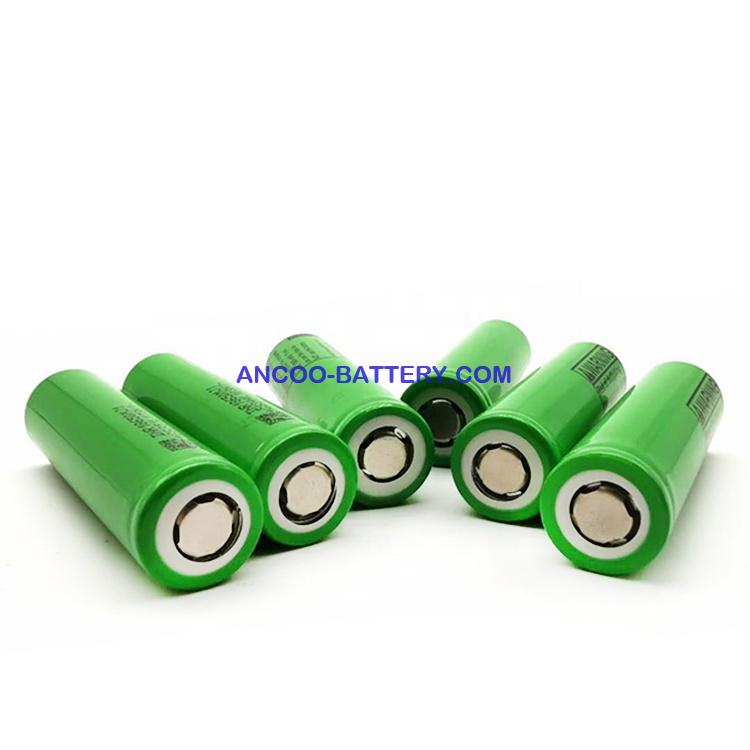

LG MJ1 18650 3500mAh 10A Li-ion Battery Cells

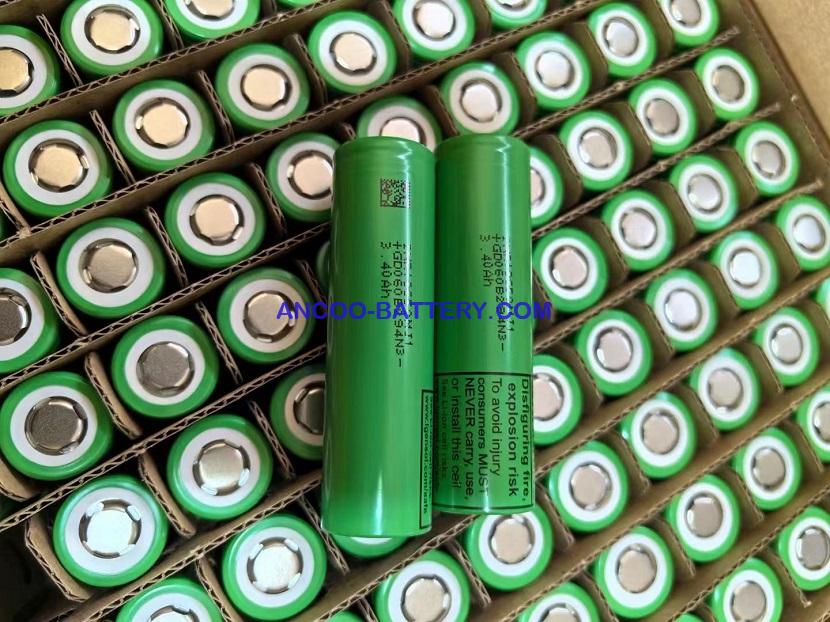

>100K cells in stock, LG INR18650MJ1.
Fresh date code and LG MJ1 18650 original packaging.
Fast shipping by air or sea with MSDS, UN38.3 test summary.
We hold full Cell Specification, UL1642, CB IEC62133 certificates and test reports.

1. General Information of INR18650MJ1

1.1 Scope: This product specification defines the requirements of the rechargeable lithium-ion battery.

1.2 Product classification: Cylindrical cells
1.3 Model name: INR18650 MJ1

2. Specification of LG MJ1 Battery

2.1 Energy Std. charge / discharge Nominal 3500mAh, Minimum 3400mAh
2.2 Nominal Voltage Average 3.635V
2.3 Standard Charge: Constant current 0.5C (1700mA) Constant voltage 4.2V, End current(Cut off) 50mA
2.4 Max. Charge Voltage 4.2 ± 0.05V
2.5 Max. Charge Current 1.0 C (3400mA)
2.6 Standard Discharge: Constant current 0.2C (680mA), End voltage(Cut off) 2.5V
2.7 Max. Discharge Current 10A
2.8 Weight Approx. Max. 49.0 g
2.9 Operating Temperature: Charge 0 ~ 45℃, Discharge -20 ~ 60℃
