Samsung 25S SDI 18650 Battery 2500mAh 35A Super Power

Samsung 25S SDI 18650 2500mah 35A Super Power Battery

Large qty in stock, new date code with original packing, fast shipping by air or sea,
MSDS UN38.3 RoHS BIS KC CB IEC62133 UL1642 Test reports and certificates.

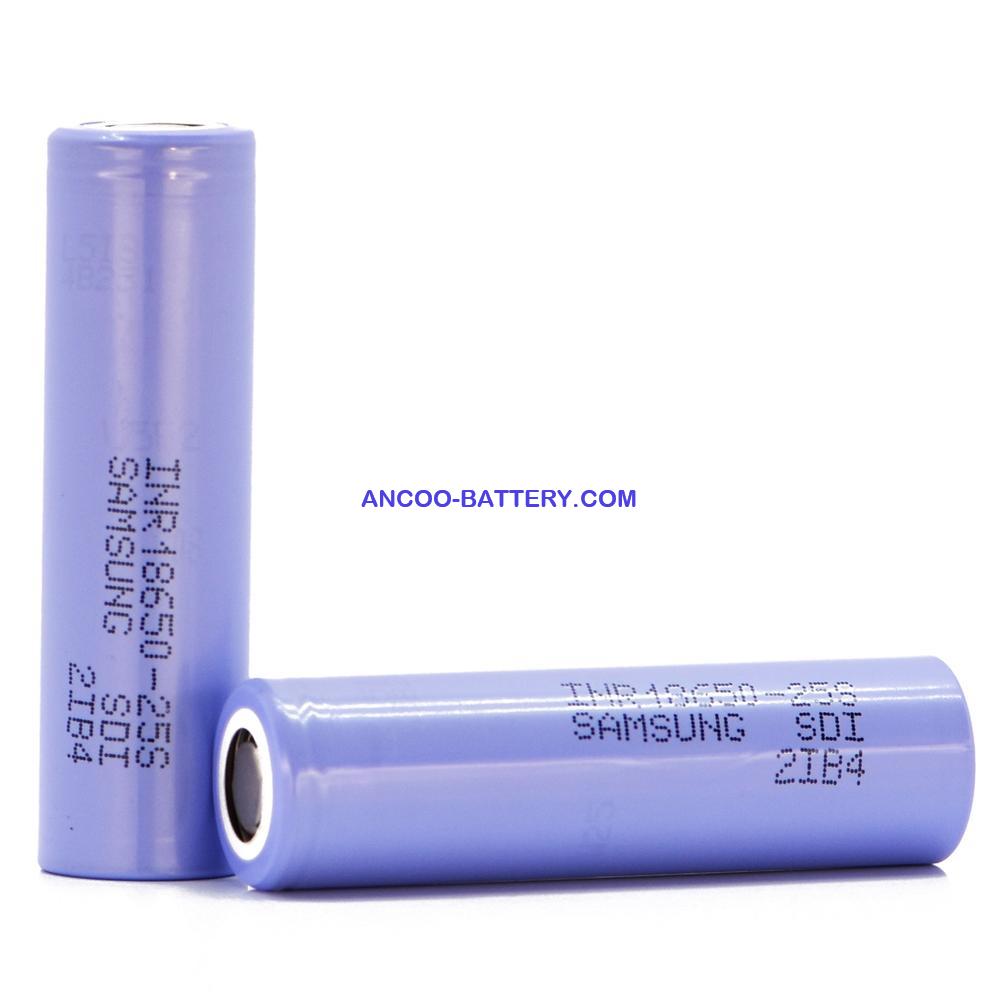

Samsung 25S 18650 Battery

1.0. This product specification has been prepared to specify the rechargeable lithium-ion cell('cells') to be supplied to the customer by Samsung SDI Co., Ltd.
2.1 Description lithium-ion rechargeable cell
2.2 Model name INR18650-25S (Version 2)
3. Nominal specifications
3.1 Standard discharge capacity: Min. 2,450mAh
- Charge: 0.5C (1.25A), 4.20V, 0.05C(125mA) cut-off @RT
- Discharge: 0.2C (500mA), 2.5V cut-off @RT
* 1C = 2,500mA
3.2 Rated discharge capacity: Min. 2,400mAh
- Charge: 4A, 4.20V, CCCV 100mA cut-off @RT
- Discharge: 10A , 2.5V cut-off @RT
3.3 Nominal voltage: 3.6V
3.4 Standard charge: CC-CV, 1.25A, 4.2V, 125mA cut-off
3.5 Rated charge: CC-CV, 4A, 4.2V, 100mA cut-off
3.6 Charging time
Standard charge : 180min / 120mA cut-off (@25℃)
Rapid charge: 60min / 100mA cut-off (@25℃)
3.7 Max. continuous discharge: 25A (Without temperature cut), 35A(With 80 temperature cut)

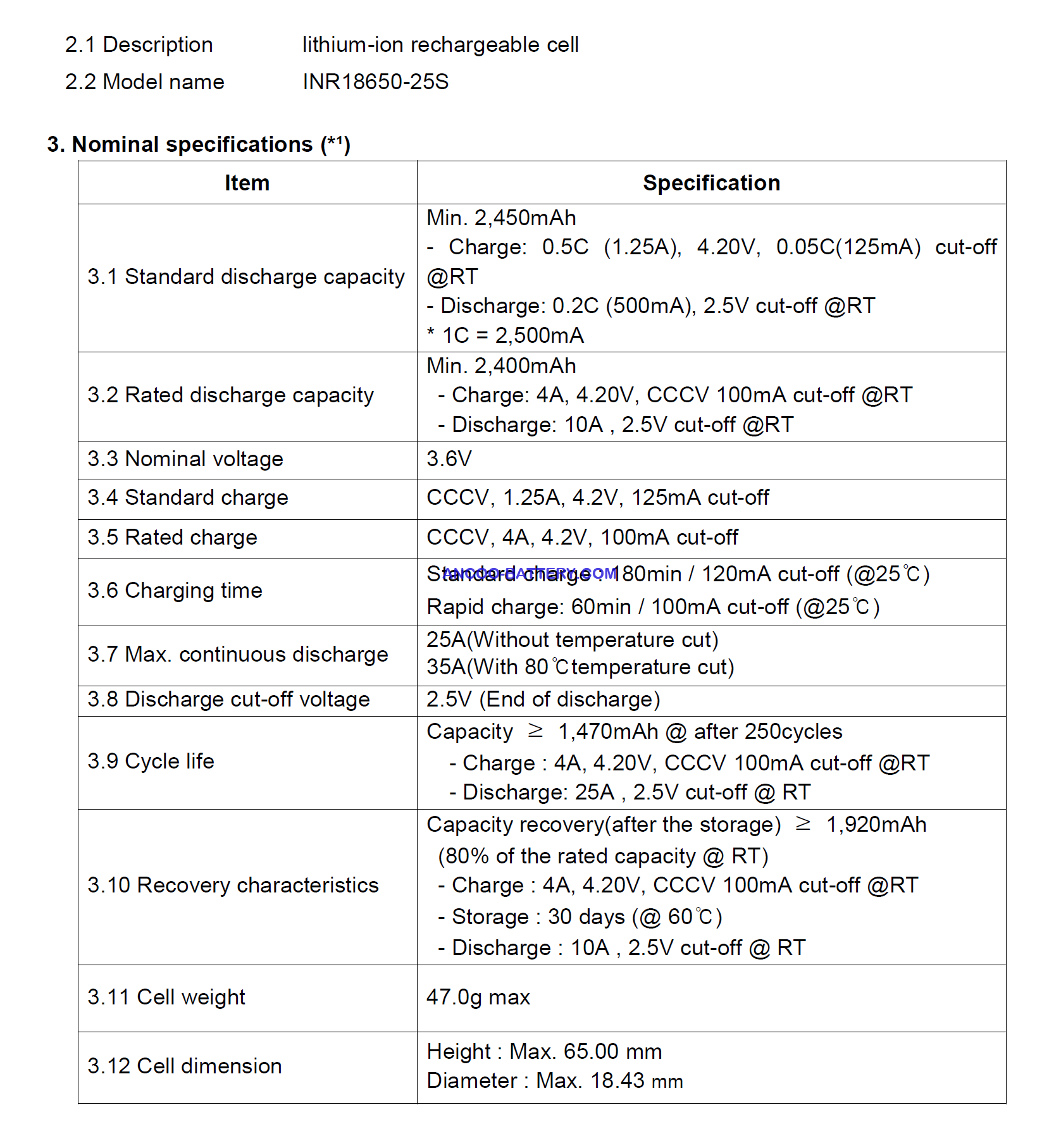

Samsung 25S Datasheet
