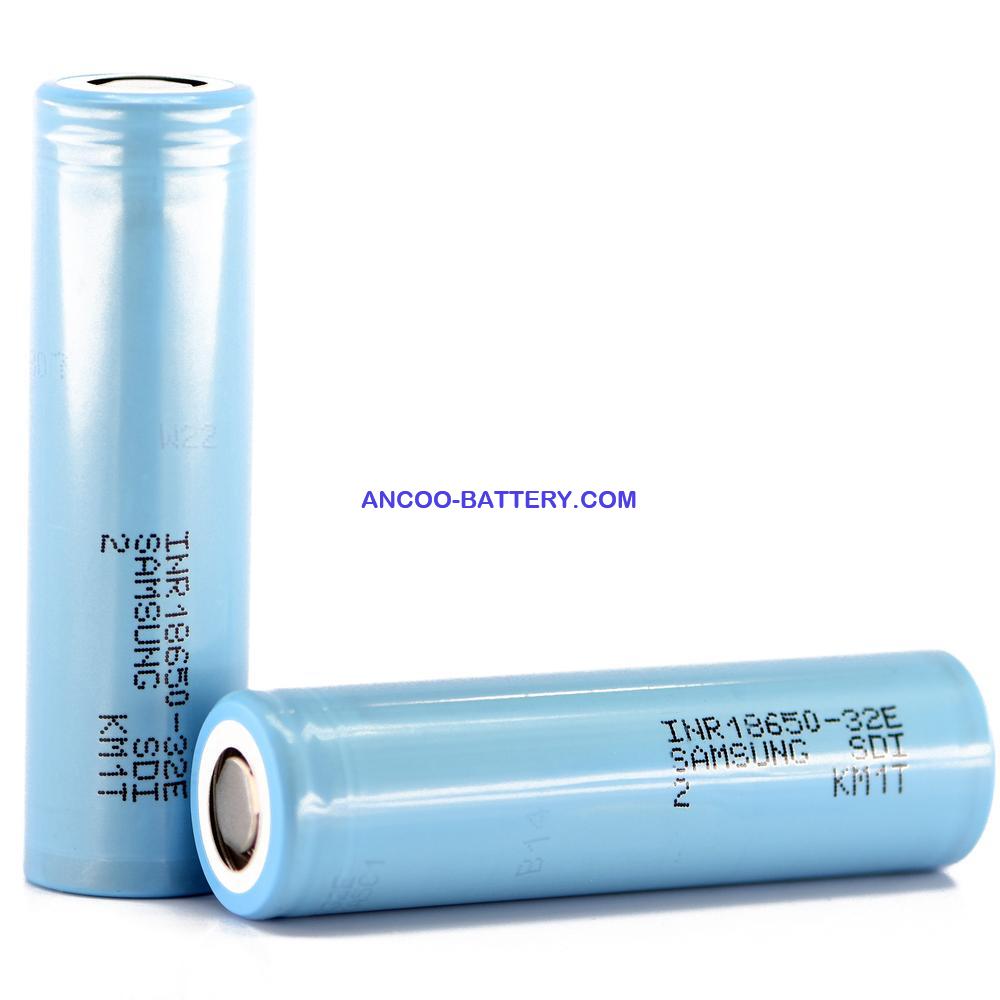

Samsung INR18650-32E2 3200mAh 3.65V 18650 Lithium-ion Battery

20% Discount for Bulk Sales, 300K in stock

MSDS UN38.3 RoHS BIS KC CB IEC62133 UL1642 are available

1. This product specification has been prepared to specify the rechargeable lithium-ion cell ('cell') to be supplied to the customer by Samsung SDI Co., Ltd.
2. Description and Model
2.1 Description Cell (lithium-ion rechargeable cell)
2.2 Model INR18650-32E2
2.3 Site Manufactured in Korea
3. Nominal Specifications
3.1 Typical Capacity 3,200mAh (0.2C, 2.50V discharge)
3.2 Minimum Capacity 3,100mAh (0.2C, 2.50V discharge)
3.3 Charging Voltage 4.2V
3.4 Nominal Voltage 3.65V (0.2C discharge)
3.5 Charging Method CC-CV (constant voltage with limited current)
3.6 Charging Current Standard charge: 960mA
3.7 Charging Time Standard charge: 5hours
3.8 Max. Charge Current 3,200mA (not for cycle life)
3.9 Max. Discharge Current
6,400mA (for continuous discharge)
9,600mA (not for continuous discharge)
3.10 Discharge Cut-off Voltage 2.50V
3.11 Cell Weight 50g max
3.12 Cell Dimension
Height : 65.2mm max
Diameter(max.) : Φ 18.50 mm
3.13 Operating Temperature
(Cell Surface Temperature)
Charge : 0 to 45°C
Discharge : -20 to 60°C
