Molicel Battery Cells

MOLICEL M50A 21700 5000mAh 4C 3.6V Battery

MOLICEL M50A 21700 5000mAh 4C 3.6V Battery

INQUIRY

MOLICEL INR-21700-M50A 5000mAh 4C 3.6V Lithium-ion Battery

10K in stock, fast shipping by air or ocean.

MSDS UN38.3 RoHS UL1642 BIS CB IEC62133 are passed

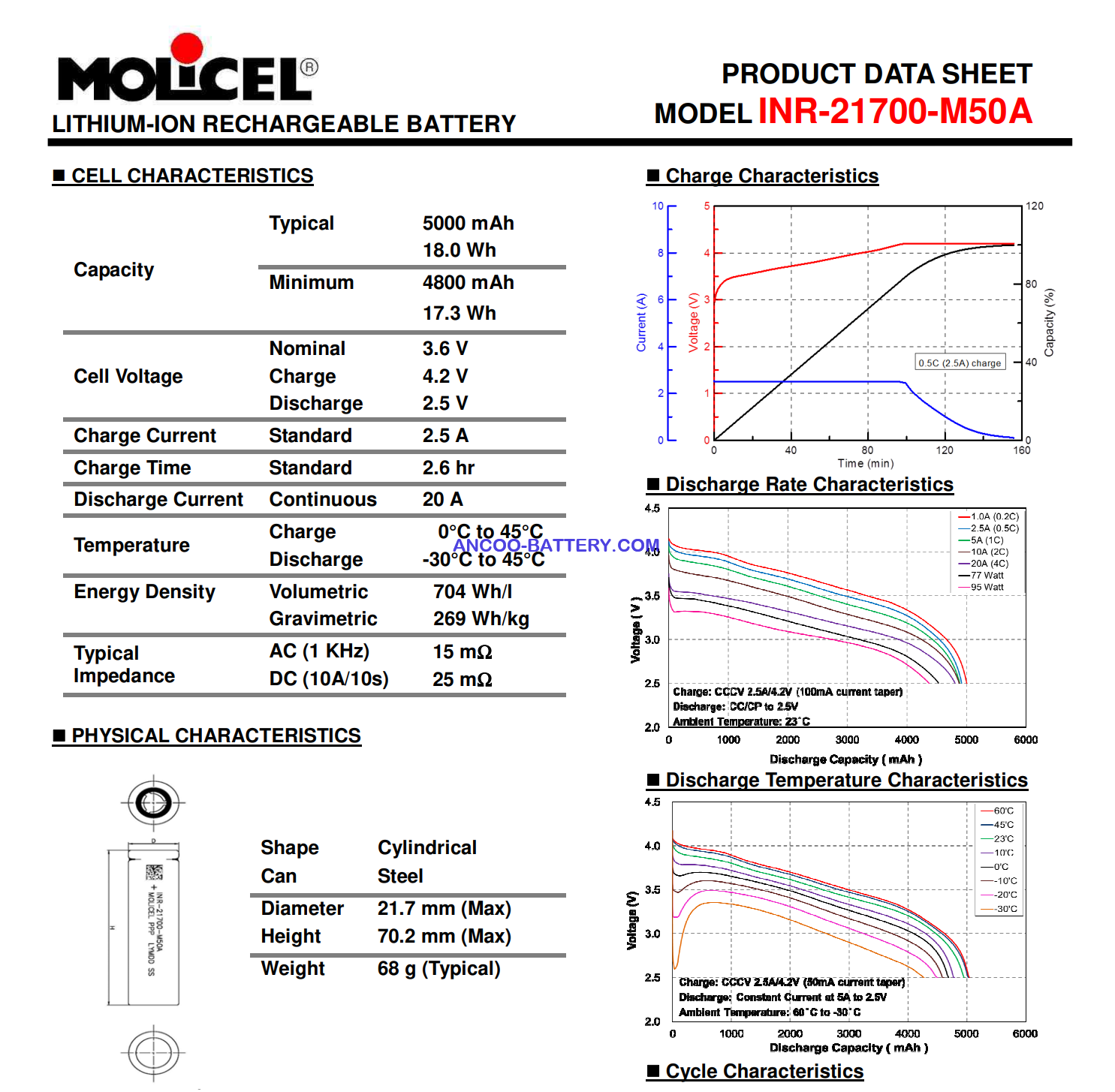

MOLICEL M50A 21700 Cell Specification

Typical Capacity 5000mAh 18.0Wh
Minimum Capacity 4800 mAh 17.3 Wh
Cell Voltage
Nominal 3.6 V
Charge 4.2 V
Discharge 2.5 V
Charge Current Standard 2.5 A
Charge Time Standard 2.6 hr
Discharge Current Continuous 20 A
Temperature
Charge 0°C to 45°C
Discharge -30°C to 45°C
Energy Density Volumetric 704 Wh/l
Gravimetric 269 Wh/kg
