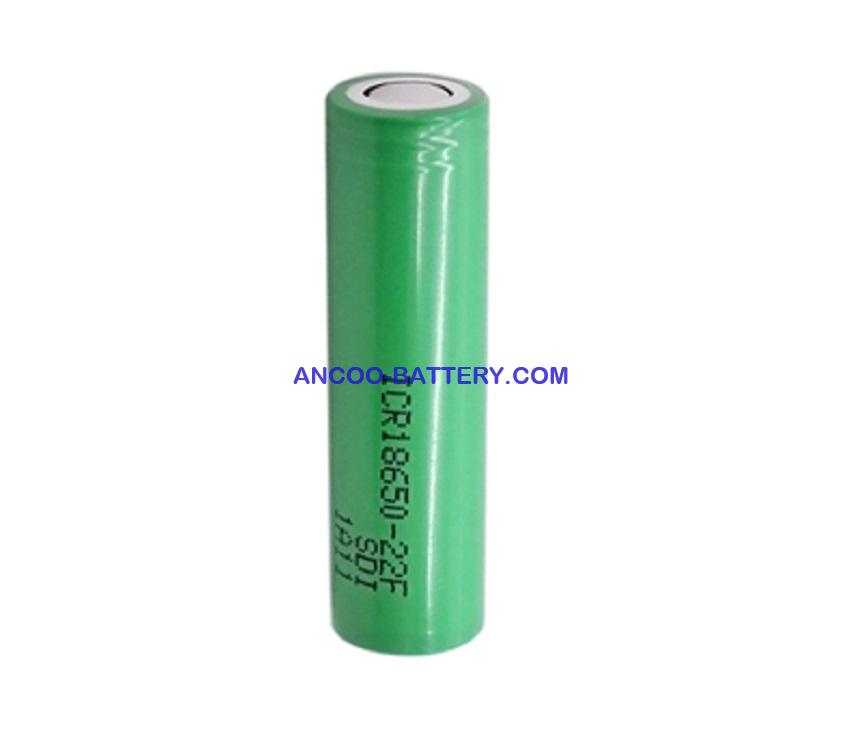

Samsung ICR18650-22F 2200mAh 3.6V Lithium-ion Battery

Samsung SDI ICR18650-22F Li-ion Battery Cells (Same as 22FM)

MSDS UN38.3 RoHS UL1642 CB IEC62133 BIS

ON SALE, shipping by sea or air UPS/DHL

Made in Korea, only 14760PCS in stock

Date code: 2019-07 (This cell has been end of life since 2020)

1. This product specification has been prepared to specify the rechargeable lithium-ion cell('cell') to be supplied to the customer by Samsung SDI Co., Ltd.
2. Description and Model
2.1 Description Cell (lithium-ion rechargeable cell)
2.2 Model ICR18650-22F (with PTC)
3. Nominal Specifications
Item Specification
3.1 Nominal Capacity 2200mAh (0.2C, 2.75V discharge)
3.2 Charging Voltage 4.2V±0.05 V
3.3 Nominal Voltage 3.6V
3.4 Charging Method CC-CV (constant voltage with limited current)
3.5 Charging Current: Standard charge 1100mA, Rapid charge : 2200mA
3.6 Charging Time: Standard charge 3hours, Rapid charge : 2.5hours
3.7 Max. Charge Current 2200mA
3.8 Max. Discharge Current 4400mA
3.9 Discharge Cut-off Voltage 2.75V
3.10 Cell Weight 44.5g max
3.11 Cell Dimension
Diameter(max.) : Φ18.4 mm
Height(max.) : 65.0 mm
3.12 Operating Temperature
Charge : 0 to 45℃
Discharge: -20 to 60℃
3.13 Storage Temperature
1 year : -20~25℃ (1*)
3 months : -20~45℃ (1*)
1 month : -20~60℃ (1*)
Note (1*): If the cell is kept as ex-factory status(50% of charge),
the capacity recovery rate is more than 80%.
