LG 18650 21700 cells

  • INR21700M50L LG M50L 21700 5000mAh 3C Battery
INR21700M50L LG M50L 21700 5000mAh 3C Battery

INR21700M50L LG M50L 21700 5000mAh 3C Battery

INR21700M50L LG 21700 5000mAh 3C Li-ion Battery

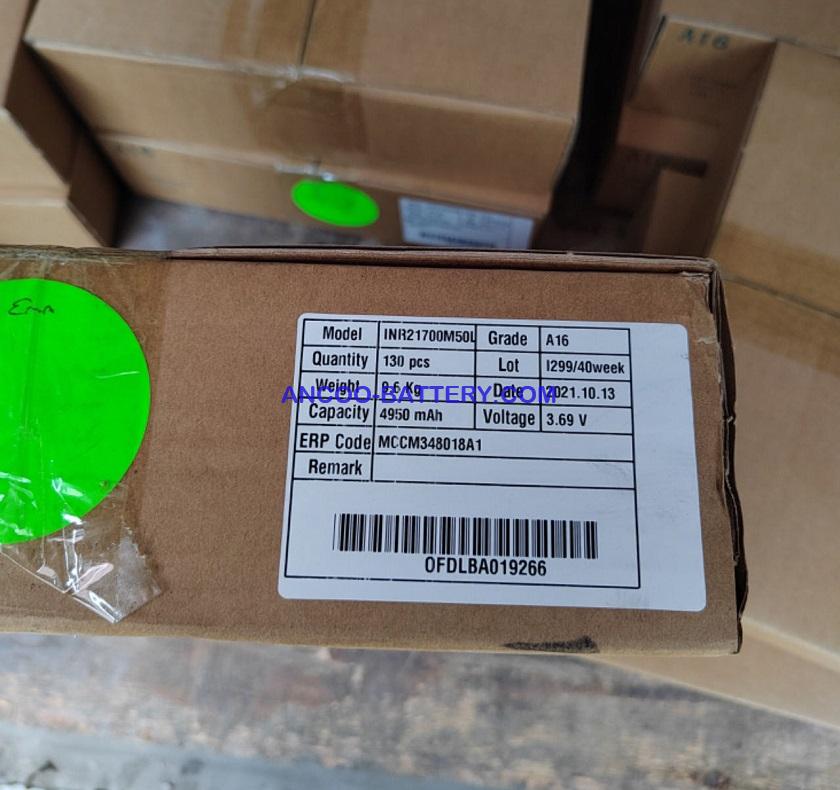

>200K LG M50L cells in stock, original packing, fast shipping by air or sea.

We hold full Datasheet MSDS UN38.3 SGS CB BIS UL IEC62133 UL1642 and Test Report.


LG INR21700M50L Cell Specification

Item
Condition / Note
Specification
2.1 Energy
By Std. Charge / Discharge
Nominal 18.2Wh Minimum 17.6Wh
2.2 Nominal Voltage
Average by Std. Charge / Discharge
3.63V
2.3 Nominal Shipping SOC
-
Below 30%
2.4 Standard Charge
Constant current Constant voltage
End current(Cut off)
0.3C (1,455mA)
4.2V
50mA
2.5 Max. Charge Voltage
In all measurements and operations of the cell, the minimum closed circuit voltage allowable shall not be over the following
value
4.20V
2.6 Over Voltage Protection
Cell voltage should not go over the following value to prevent any safety events. And cell performance can’t be
guaranteed between 4.20V and 4.25V
4.25V
2.7 Min. Discharge Voltage
In all measurements and operations of the cell, the minimum closed circuit voltage allowable shall not be below the following
value
2.50V
2.8 Under Voltage Protection
Cell voltage should not go down the following value to prevent any safety events. And cell performance can’t be
guaranteed between 2.50V and 2.00V
2.00V
2.9 Standard Discharge (Refer to 4.1.2)
Constant current End voltage(Cut off)
0.2C (970mA)
2.50V
2.10 Storage Temperature (for shipping state)
1 month
3 months
1 year
Recovery energy** after the storage ≥ 80% of minimum energy
-20 ~ 55℃
-20 ~ 45℃
-20 ~ 25℃
2.11 Weight
Without washer
Max. 70.0 g ( Tentative)

LG M50L Max. Discharge Current

-20 ~ 10℃: 0.5C (2,400mA)
10 ~ 25℃: 3.0C(14,400mA)
25 ~ 55℃: 1.5C(7,200mA)

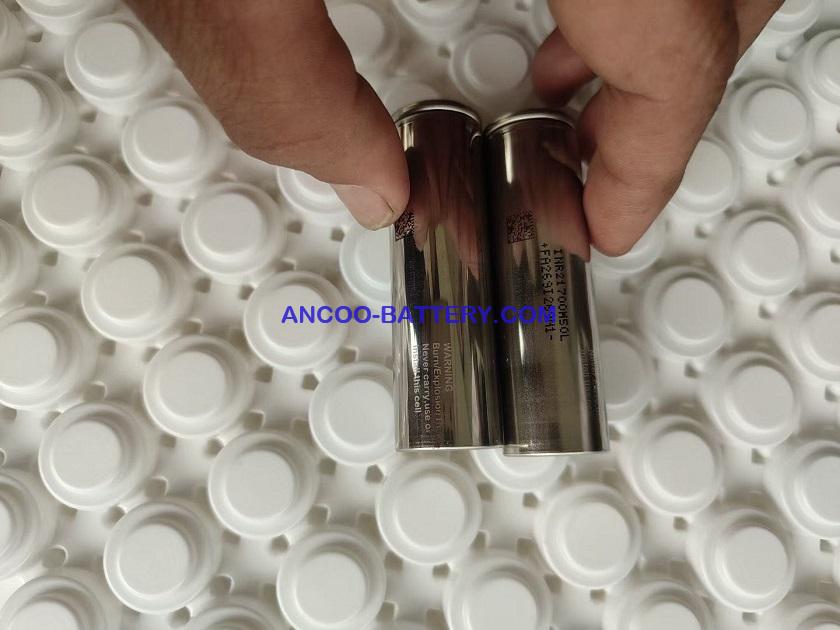

LG M50L 21700 cells

LG M50L
