LG 18650 21700 cells

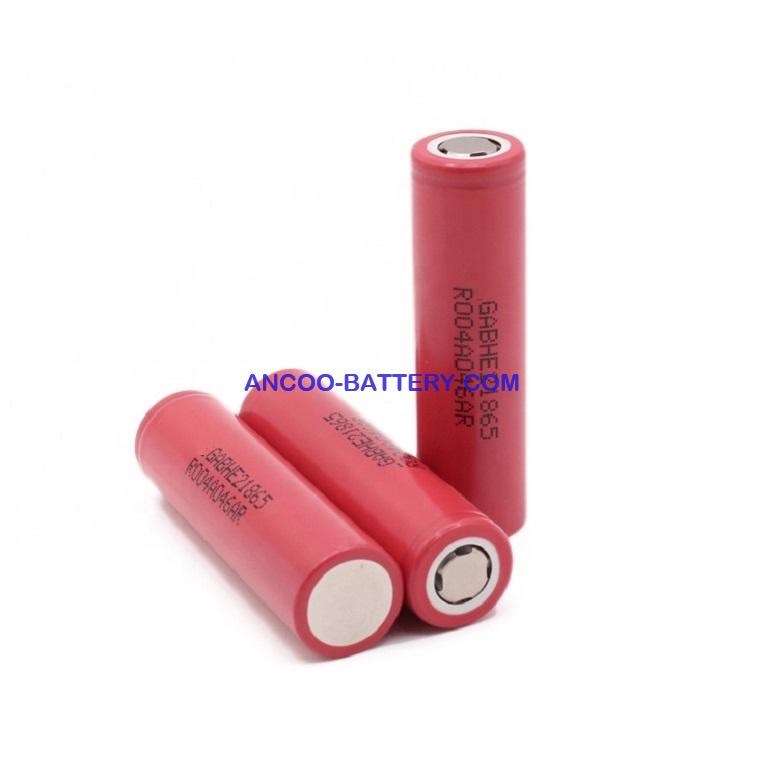

LG HE2 18650 2500mAh 3.6V 20A Battery

INQUIRY

ICR18650HE2 Lithium-ion Cells

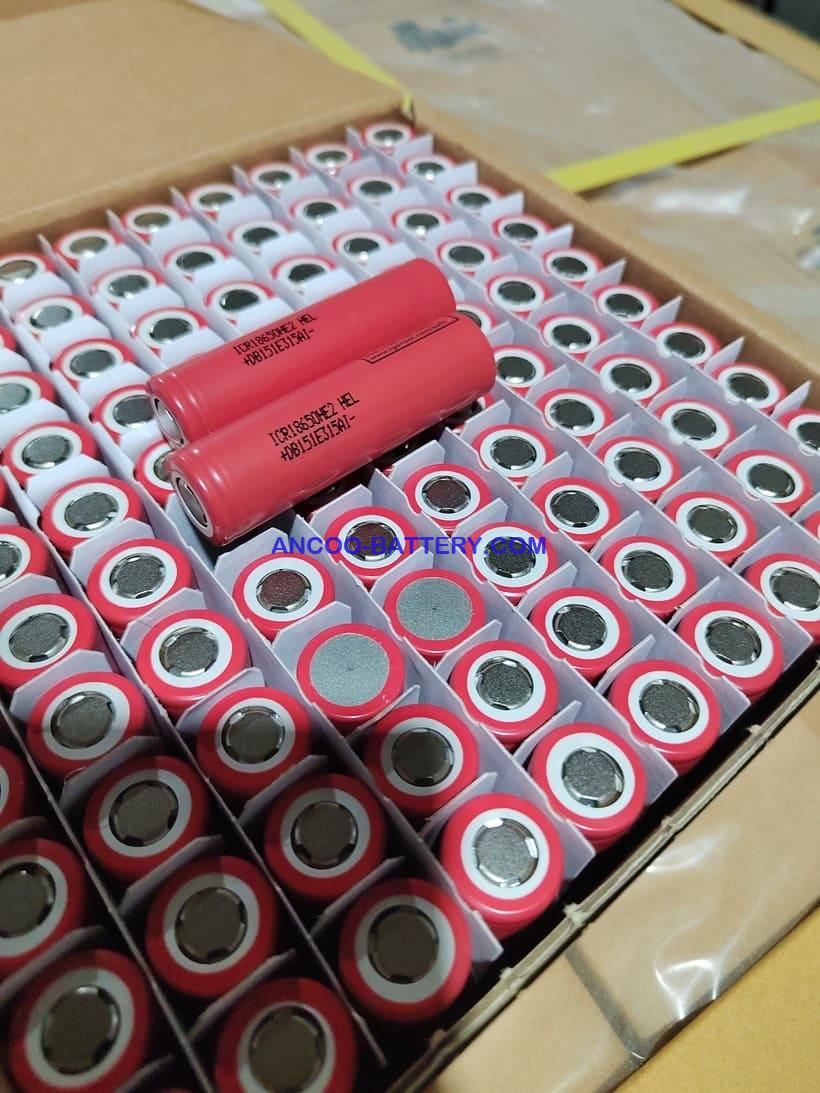

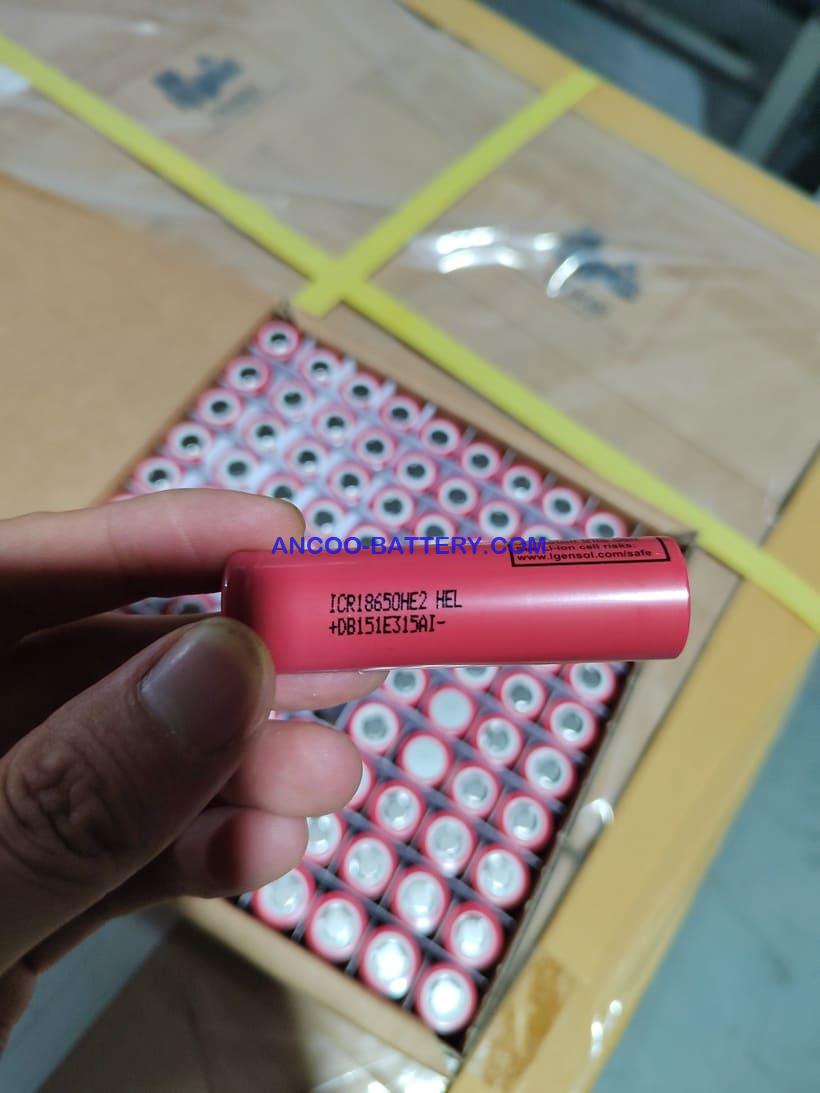

100K LG HE2 cells in stock, 100% original packing, fast shipping by air or ocean from China.
We hold MSDS UN38.3 SGS UL1642 CB IEC62133 test reports, fast shipping by air or sea.

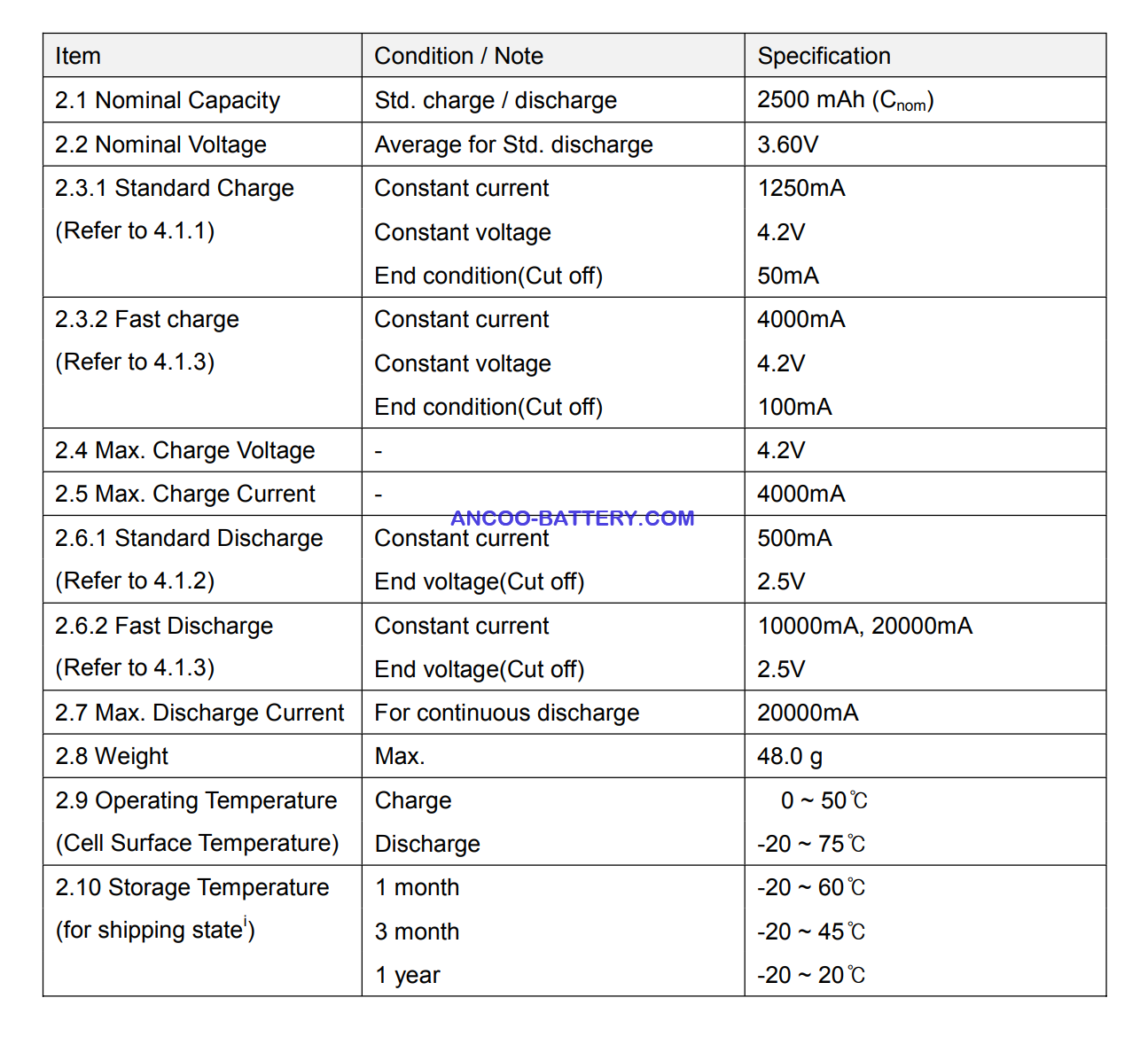

Specification of LG HE2

1 Scope: This product specification defines the requirements of the rechargeable lithium ion battery.
2 Application: Power Tools
3 Product classification: Cylindrical
4 Model name: INR18650HE2 (ICR18650HE2)
Nominal Specification
1 Nominal Capacity Std.charge/ discharge 2500mah(Cnom)
2 Nominal Voltage Average for Std.discharge 3.6V
3.1 Standard Charge: Constant current 1250mA, Constant voltage 4.2V End condition(Cut off) 50mA
3.2 Fast charge: Constant current 4000mA Constant voltage 4.2V End condition(Cut off) 100mA
4 Max ChargeVoltage 4.2V
5 Max.Charge Current 4000mA
6.1 Standard Discharge Constant current 500mA End voltage(Cut off) 2.5V
6.2 Fast Discharge Constant current 20000mA End voltage(Cut off) 2.5V
7 Max.Discharge Current For continuous discharge 20000mA
8 Weight Max. 48.0g
