FDK Battery Cells

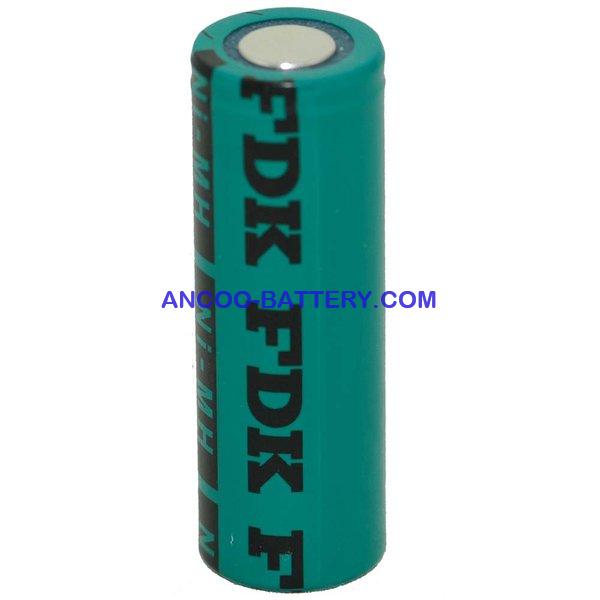

FDK HR-AUE 2700mAh Low-temp discharge Ni-MH Batteries

INQUIRY

FDK Ni-MH Batteries Specifications

Model HR-5/4AAAU

HR-AAUE
Low-temp discharge model

HR-AAU

HR-4/5AU

HR-AU

HR-AUE
Low-temp discharge model

HR-4/3AU

HR-4/3FAU

Nominal Voltage 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V

Typical Capacity※1 850mAh 1400mAh 1650mAh 2150mAh 2700mAh 2700mAh 4000mAh 4500mAh

Minimum Capacity※2 760mAh 1250mAh 1500mAh 1950mAh 2450mAh 2450mAh 3600mAh 4100mAh

Quick-
Charge※3 Current 850mA 1400mA 1650mA 2150mA 2700mA 2700mA 3000mA 3000mA

Time 1.1h 1.1h 1.1h 1.1h 1.1h 1.1h 1.4h 1.6h

Dimensions
(incl.tube)※4 Diameter 10.5mm 14.2mm 14.2mm 17.0mm 17.0mm 17.0mm 17.0mm 18.0mm

Height 50.0mm 50.0mm 50.0mm 43.0mm 50.0mm 50.0mm 67.5mm 67.5mm

Weight 14g 25g 27g 33g 37g 39g 53g 59g

Data sheet

※1:Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.

※2:Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.

※3:Consult FDK according to conditions of use.

※4:Including heat shrink tube.

Model	HR-5/4AAAU	HR-AAUE Low-temp discharge model	HR-AAU	HR-4/5AU	HR-AU	HR-AUE Low-temp discharge model	HR-4/3AU	HR-4/3FAU
Nominal Voltage	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V
Typical Capacity※1	850mAh	1400mAh	1650mAh	2150mAh	2700mAh	2700mAh	4000mAh	4500mAh
Minimum Capacity※2	760mAh	1250mAh	1500mAh	1950mAh	2450mAh	2450mAh	3600mAh	4100mAh
Quick- Charge※3	Current	850mA	1400mA	1650mA	2150mA	2700mA	2700mA	3000mA	3000mA
Time	1.1h	1.1h	1.1h	1.1h	1.1h	1.1h	1.4h	1.6h
Dimensions (incl.tube)※4	Diameter	10.5mm	14.2mm	14.2mm	17.0mm	17.0mm	17.0mm	17.0mm	18.0mm
Height	50.0mm	50.0mm	50.0mm	43.0mm	50.0mm	50.0mm	67.5mm	67.5mm
Weight	14g	25g	27g	33g	37g	39g	53g	59g
Data sheet
