FDK Battery Cells

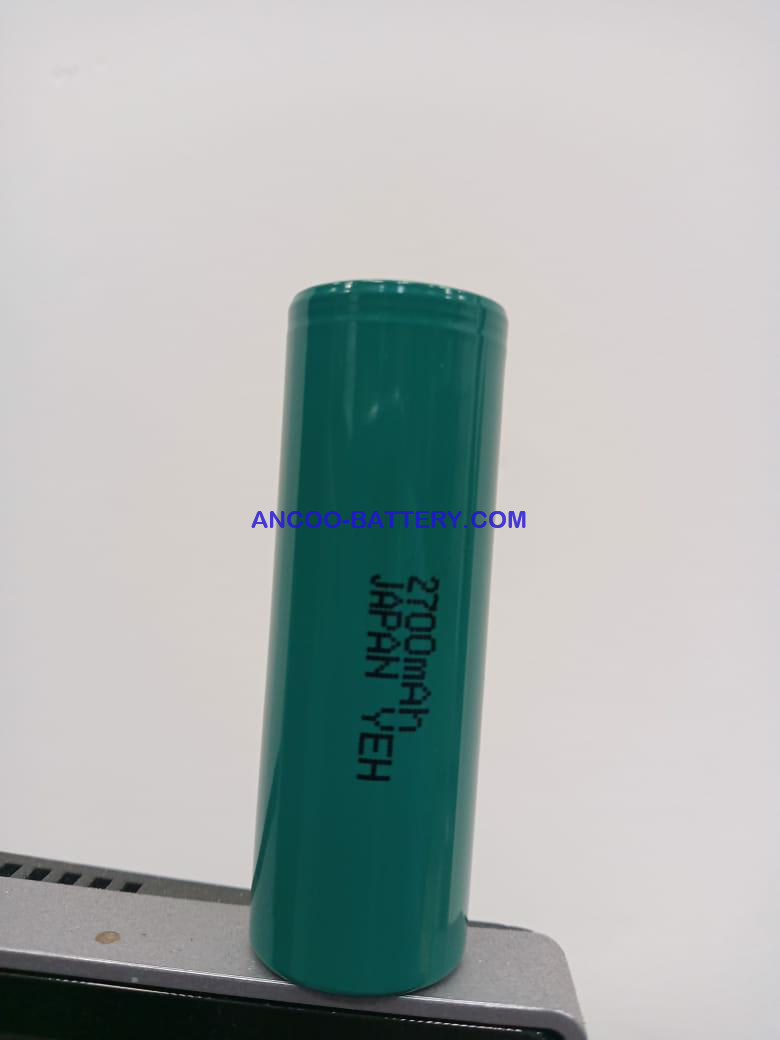

  • FDK HR-AU 2700mAh Ni-MH Battery
FDK HR-AU 2700mAh Ni-MH Battery

FDK HR-AU 2700mAh Ni-MH Battery

FDK Ni-MH Batteries Specifications

Model HR-5/4AAAU
HR-5/4AAAU
HR-AAUE
Low-temp discharge model
HR-AAUE
HR-AAU
HR-AAU
HR-4/5AU
HR-4/5AU
HR-AU
HR-AU
HR-AUE
Low-temp discharge model
HR-AUE
HR-4/3AU
HR-4/3AU
HR-4/3FAU
HR-4/3FAU
Nominal Voltage 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V
Typical Capacity※1 850mAh 1400mAh 1650mAh 2150mAh 2700mAh 2700mAh 4000mAh 4500mAh
Minimum Capacity※2 760mAh 1250mAh 1500mAh 1950mAh 2450mAh 2450mAh 3600mAh 4100mAh
Quick-
Charge※3
Current 850mA 1400mA 1650mA 2150mA 2700mA 2700mA 3000mA 3000mA
Time 1.1h 1.1h 1.1h 1.1h 1.1h 1.1h 1.4h 1.6h
Dimensions
(incl.tube)※4
Diameter 10.5mm 14.2mm 14.2mm 17.0mm 17.0mm 17.0mm 17.0mm 18.0mm
Height 50.0mm 50.0mm 50.0mm 43.0mm 50.0mm 50.0mm 67.5mm 67.5mm
Weight 14g 25g 27g 33g 37g 39g 53g 59g
Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet
  • ※1:Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
  • ※2:Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
  • ※3:Consult FDK according to conditions of use.
  • ※4:Including heat shrink tube.
