FDK Battery Cells

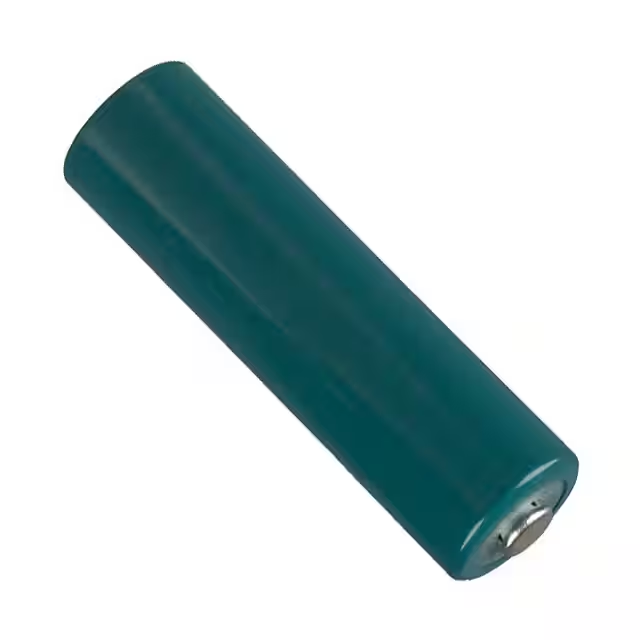

HR-3UTGX FDK AA 2500mAh NiMH Battery

INQUIRY

FDK HR-3UTGX 2500mah AA Ni-MH Battery

Fresh date code, FDK original packing. Please place your order 2-3 months in advance!

FDK HR-3UTGX Datasheet

Type : Nickel-Metal Hydride Battery
Nominal Voltage 1.2V
Charging Current x Time Fast Charge 2700mA × 1.1h
Capacity 2500mah Minimum 2500mAh
0°C - 40°C
0°C - 50°C
-20°C - 50°C
-20°C - 40°C
-20°C - 30°C
Approx. 25moh (at 1000Hz)
Approx. 30 g
14.35(D) x 50.4(H) mm
Size : AA Consumer Type
1)Single cell capacity under the following condition.
Charge : 250mA×16h, Discharge : 500mA(E.V.=1.0V) at 20°C
2)Use recommended charging system.
3)After a few charge and discharge cycles under the above 1) condition.
4)With tube.

Features

1. Dry cell compatible form factor: Dry cell compatible Ni-MH batteries can be used in most equipment that use dry cells.
2. Cost effectiveness: Economical batteries with less waste due to being rechargeable unlike a dry cell.
3. Low self-discharge: Ready to use after purchasing, can be stored as emergency supplies.

Applications

·For digital cameras, audio equipment, remote controls, clocks, radio-controlled hobby items, amateur 2-way radio etc.
·Dry cell compatible Ni-MH batteries can also be used for business purposes other than those listed above.
·It is necessary to confirm the application and battery usage conditions to sell dry cell compatible Ni-MH batteries.
Please contact us for more details.
