FDK Battery Cells

  • FDK HR-4/3AU 4000mAh 17670 NiMH Battery
  • FDK HR-4/3AU 4000mAh 17670 NiMH Battery
  • FDK HR-4/3AU 4000mAh 17670 NiMH Battery
FDK HR-4/3AU 4000mAh 17670 NiMH BatteryFDK HR-4/3AU 4000mAh 17670 NiMH BatteryFDK HR-4/3AU 4000mAh 17670 NiMH Battery

FDK HR-4/3AU 4000mAh 17670 NiMH Battery

  1. Big quantity in stock for FDK HR-4/3AU Ni-MH cells,
  2. 2024+ fresh date code, FDK original packaging.
  3. Fast shipping by Ocean or Air with the latest MSDS.
  4. Contact us for a special offer about FDK NiMH Batteries.


FDK HR-4/3AU Specification

Mfr
FDK, Japan
Series
Ni-MH Rechargeable
Packaging
Bulk
Part Status
Active
Battery Chemistry
Nickel Metal Hydride
Battery Cell Size
4/3A
Voltage - Rated
1.2 V
Capacity
4000mAh
Size / Dimension
0.67" Dia x 2.66" H (17.0mm x 67.5mm)
Termination Style
Flat Top (Non-Extending)
Discharge Rate
720mA
Shelf Life
-
Standard Charge Current
400mA
Standard Charge Time
16Hrs
Weight
50.5 g

FDK Ni-MH Batteries Specifications

Model HR-5/4AAAU HR-AAUE
Low-temp discharge model
HR-AAU HR-4/5AU HR-AU HR-AUE
Low-temp discharge model
HR-4/3AU HR-4/3FAU
Nominal Voltage 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V 1.2V
Typical Capacity※1 850mAh 1400mAh 1650mAh 2150mAh 2700mAh 2700mAh 4000mAh 4500mAh
Minimum Capacity※2 760mAh 1250mAh 1500mAh 1950mAh 2450mAh 2450mAh 3600mAh 4100mAh
Quick-
Charge※3
Current 850mA 1400mA 1650mA 2150mA 2700mA 2700mA 3000mA 3000mA
Time 1.1h 1.1h 1.1h 1.1h 1.1h 1.1h 1.4h 1.6h
Dimensions
(incl.tube)※4
Diameter 10.5mm 14.2mm 14.2mm 17.0mm 17.0mm 17.0mm 17.0mm 18.0mm
Height 50.0mm 50.0mm 50.0mm 43.0mm 50.0mm 50.0mm 67.5mm 67.5mm
Weight 14g 25g 27g 33g 37g 39g 53g 59g
Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet Data sheet
  • ※1:Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
  • ※2:Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
  • ※3:Consult FDK according to conditions of use.
  • ※4:Including heat shrink tube.

Applications
Audio / video equipment, information / communication devices, lighting equipment, measuring instruments, home appliances, toys etc.


PRICE LIST OF NICKEL METAL HYDRIDE BATTERIES

MANUFACTURER VOLTAGE / CAPACITY SIZE DIMENSIONS (mm) PART LIST PRICE
FDK 1.2 Volts / 730mAh AAA 10.5 x 44.5 HR-AAAUC $1.60
FDK 1.2 Volts / 1650mAh AA 14.5 x 50.0 HR-AAU $2.00
FDK 1.2 Volts / 2100mAh 4/5A 17.0 x 43.5 HR-4/5AU $2.30
FDK 1.2 Volts / 2700mAh A 17.0 x 50.0 HR-AU $2.40
FDK 1.2 Volts / 4000mAh 4/3A 17.0 x 67.0 HR-4/3A $2.90
FDK 1.2 Volts / 4500mAh Fat 4/3A 17.0 x 67.0 HR-4/3FAU $3.40
Panasonic 1.2 Volts / 4200mAh Fat 4/3A 18.2 x 67.0 HHR450A $3.40
Panasonic 1.2 Volts / 2000mAh 4/5 Sub C 23.0 x 34.0 HHR200SCP $3.20
FDK 1.2 Volts / 10000mAh D 33.0 x 60.0 HR-DU $13.00
Saft 1.2 Volts / 15000mAh F 32.4 x 91.1 VH-F16000 $14.00
CYLINDRICAL CELLS WITH POSITIVE BUTTON
TYPE VOLTAGE / CAPACITY DIMENSIONS (mm) PART LIST PRICE
FDK 1.2 Volts / 1000mAh AAA 10.5 x 44.5 HR-4UTGX $2.00
FDK 1.2 Volts / 2500mah AA 14.5 x 50.0 HR-3UTGX $2.80
CYLINDRICAL CELLS WITH SOLDER TABS
TYPE VOLTAGE / CAPACITY DIMENSIONS (mm) PART LIST PRICE
FDK 1.2 Volts  /  700mAh AAA 10.5 x 44.5 HR-AAAUTS $2.00
FDK 1.2 Volts  /  1650mAh AA 14.5 x 48.3 HR-AAUTS $2.20
FDK 1.2 Volts / 2100mAh 4/5A 17.0 x 43.5 HR-4/5AUTS $2.50
FDK 1.2 Volts / 2700mAh A 17.0 x 50.0 HR-AUTS $2.60
FDK 1.2 Volts / 4000mAh 4/3A 17.0 x 67.0 HR-4/3ATS $3.30
FDK 1.2 Volts / 4500mAh Fat 4/3A 17.0 x 67.0 HR-4/3FAUTS $3.70
FDK 1.2 Volts / 10000mAh D 33.0 x 61.0 HR-DUTS $15.00

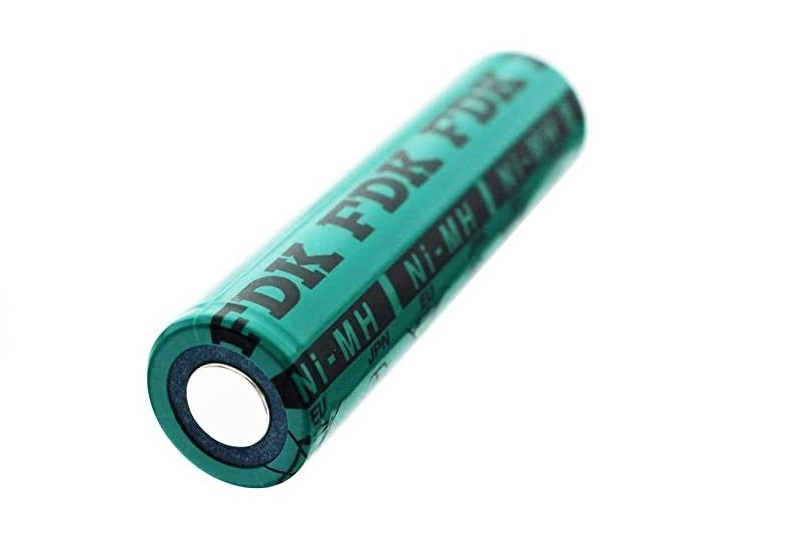

FDK HR-4/3AU 4000mAh 17670 NiMH Battery

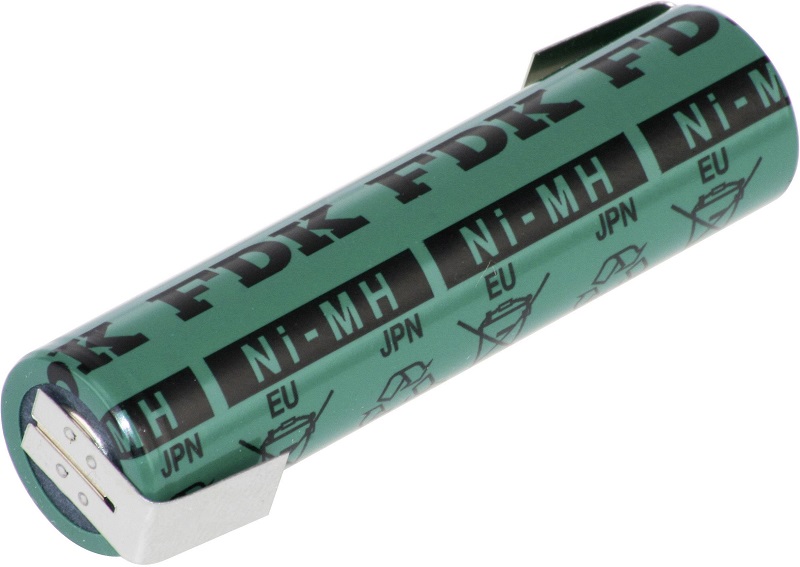

FDK HR-4/3AU with tabs
