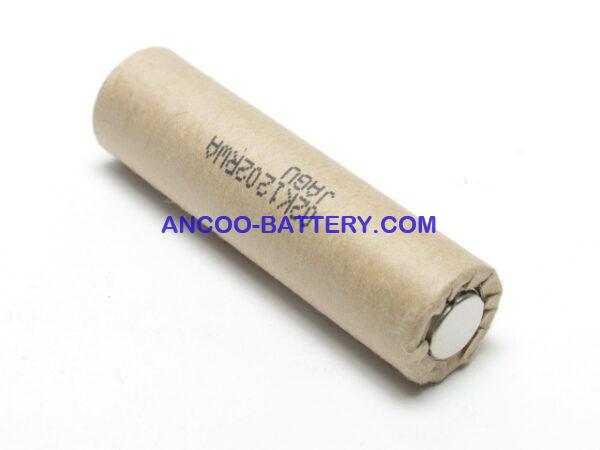

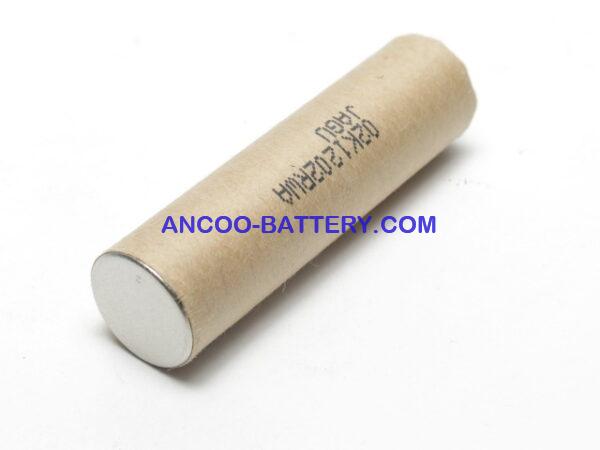

FDK HR-4/3FAUP 4000mAh 18670 High-Rate Ni-MH Battery

FDK HR-4/3FAUP 4000mAh High Rate NiMH Batteries

1. FDK's superior high-rate discharge characteristics.
2. Fresh date code, contact us for a special offer.
3. Please place your order 2-3 months in advance!

FDK High-Rate Ni-MH Batteries Specifications

Model		HR-4/5FAUP	HR-4/3FAUHPC	HR-SCU	HR-4/3FAUPC	HR-4/3FAUP
Nominal Voltage		1.2V	1.2V	1.2V	1.2V	1.2V
Typical Capacity※1		1950mAh	2700mAh	3000mAh	3200mAh	4000mAh
Minimum Capacity※2		1800mAh	2500mah	2700mAh	3050mAh	3750mAh
Quick- Charge※3	Current	1950mA	2700mA	3000mA	3200mA	4000mA
	Time	1.1h	1.1h	1.1h	1.1h	1.1h
Dimensions (incl.tube)※4	Diameter	18.1mm※5	18.1mm※5	23.0mm	18.1mm※5	18.1mm※5
	Height	43.2mm※5	67.0mm※5	43.5mm	67.0mm※5	67.0mm※5
Approx. Weight		39g	57g	59g	59g	58g
Data sheet

※1:Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
※2:Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
※3:Consult FDK according to conditions of use.
※4:Including heat shrink tube.
※5:Including paper tube / heat shrink tube.

Features

Superior high-rate discharge characteristics
FDK's original electrode manufacturing process, coupled with specialized current collectors minimize internal impedance, which in turn enables high-rate discharging and guarantees a stable discharge voltage.

Applications

Electric tools, nursing lift, electric motor applications etc.
