FDK CR Lithium Primary Batteries

FDK Cylindrical Lithium Primary Batteries - High Power

Futures

1. Spiral electrode structure ensures high-rate current discharge.
2. Low self-discharge rate and long life.
   Self-discharge rate: less than 0.5% per year at room temperature.
3. Usable over a wide temperature range
   Operational temperature range : -40°C to +85°C (-40°F to +185°F)
   Consult with FDK when using batteries at temperatures exceeding -20°C to +60°C (-4°F to +1 40°F)range.
4. UL recognition (File No. MH13421)

Applications

In-vehicle applications (ETCs, eCall systems, etc)

Specifications

Model: CR17335E-R diameter 17mm height 33.5mm weight: 17g
Nominal voltage: 3V, rated capacity: 1600mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 2500mA

Model: CR17450E-R diameter 17mm height 45mm weight: 23g
Nominal voltage: 3V, rated capacity: 2400mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 2500mA

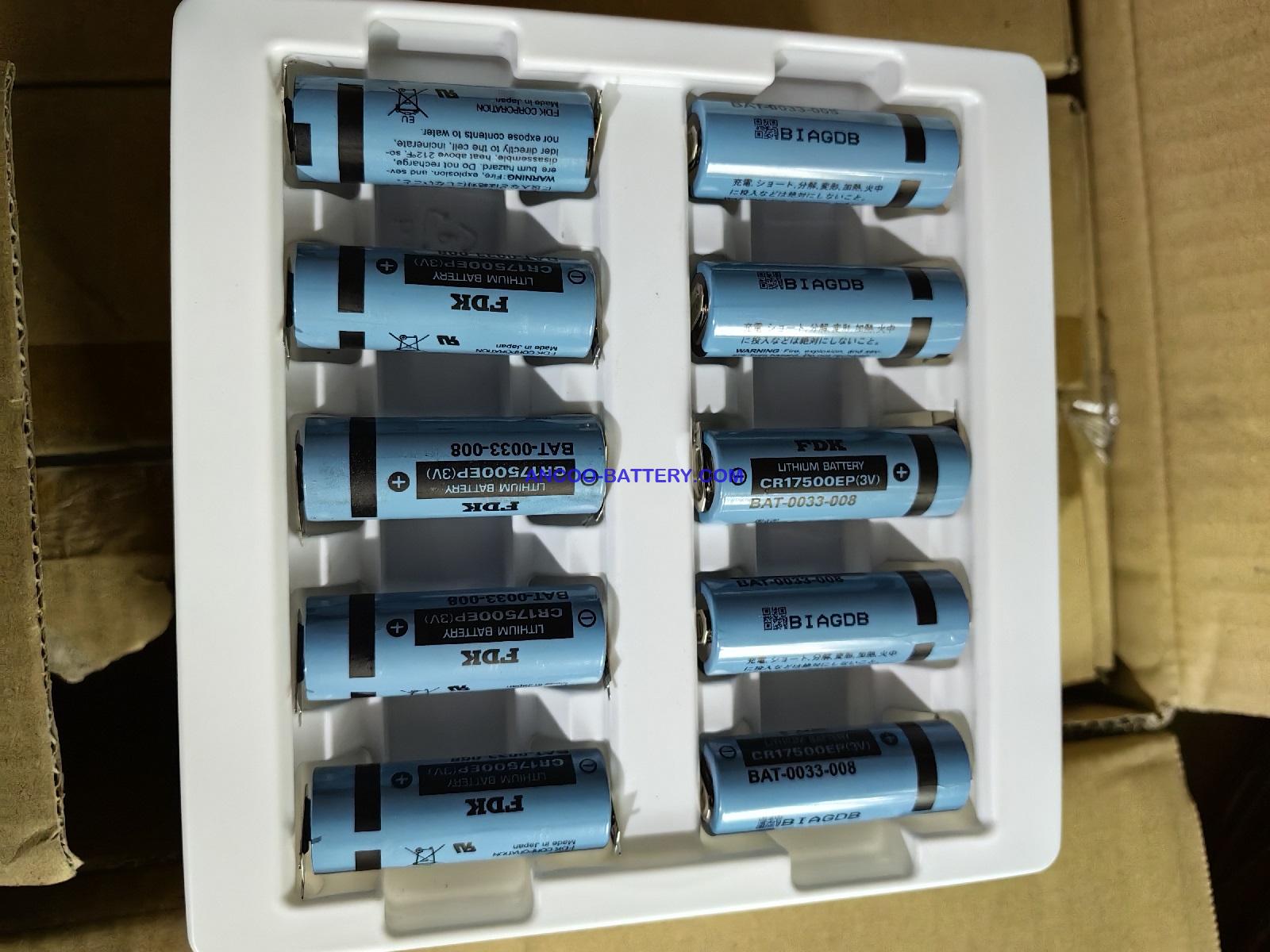

Model: CR17500EP
Nominal voltage: 3V, rated capacity: 3000mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 4000mA, tank diameter: 17.4mm, tank height: 50.0mm

Model: CR17450ES diameter 17mm height 45mm weight: 23g
Nominal voltage: 3V, rated capacity: 2400mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 3500mA

Model: CR17335EF diameter 17mm height 33.5mm weight: 17g
Nominal voltage: 3V, rated capacity: 1400mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 3500mA

Model: CR17335EG diameter 17mm height 33.5mm weight: 17g
Nominal voltage: 3V, rated capacity: 1600mAh, standard charge / discharge current: 5mA
Maximum instantaneous current: 3000mA

Model: CR17450E-N diameter 17mm height 45mm weight: 23g
Nominal voltage: 3V, rated capacity: 2600mah, standard charge / discharge current: 5mA
Maximum instantaneous current: 2000mA

1. ※ Expected life at room temperature : CR17500EP 20 years , other models 10 years.
2. Expected life is reference only and is not intended to imply any guarantee or warranty. Actual life depends on condition of use.
3. ※ Consult with FDK when considering connection method and multiple-cell configuration.
4. ※ CR17335EG and CR17450E-N have the outer can made of nickel plated steel.
5. ※1 Nominal capacity is determined at an end voltage of 2.0V when the battery is allowed to discharge at a standard current level at +23°C.
6. ※2 Current value for obtaining 1.0V cell voltage when pulse is applied for 15 seconds at 50% discharge depth (50% of the nominal capacity) at +23°C.

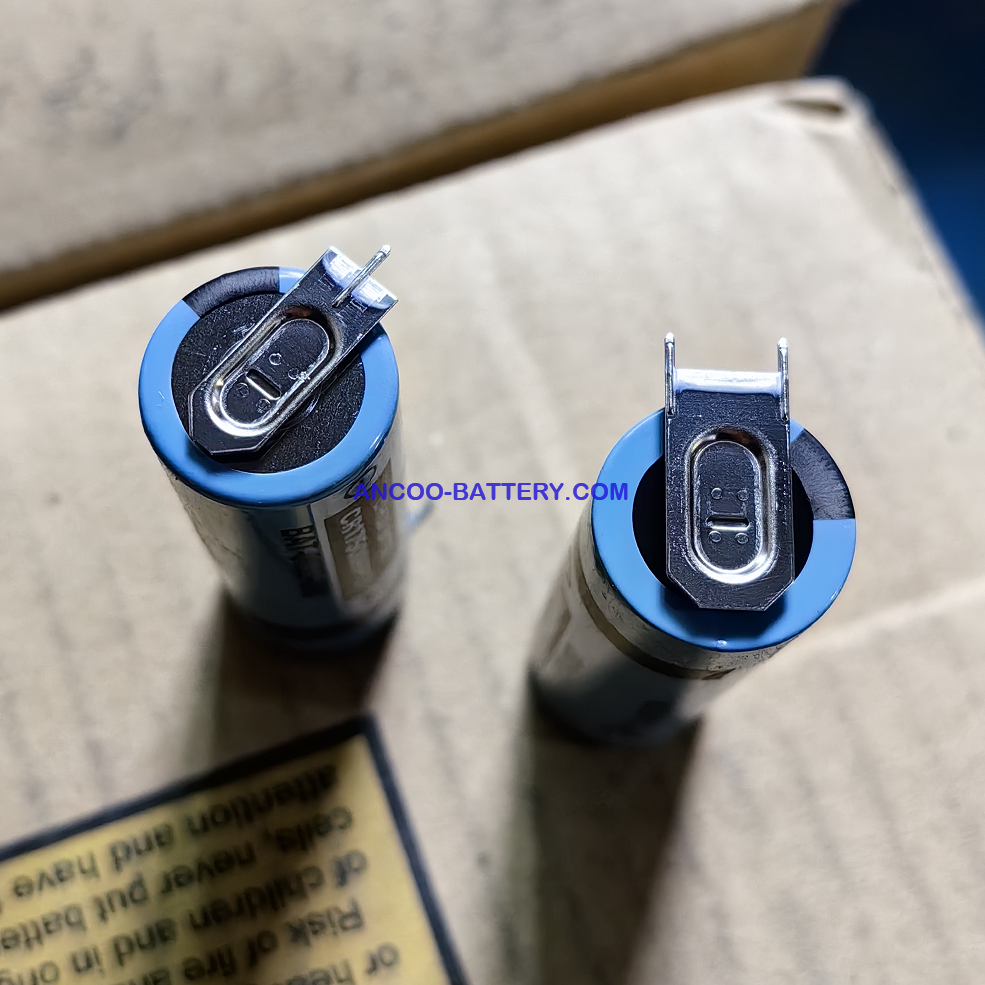

7. Please use tabs or connectors when connecting these batteries to applications.
8. 2025 SAFETY DATA SHEET (SDS) is available.
