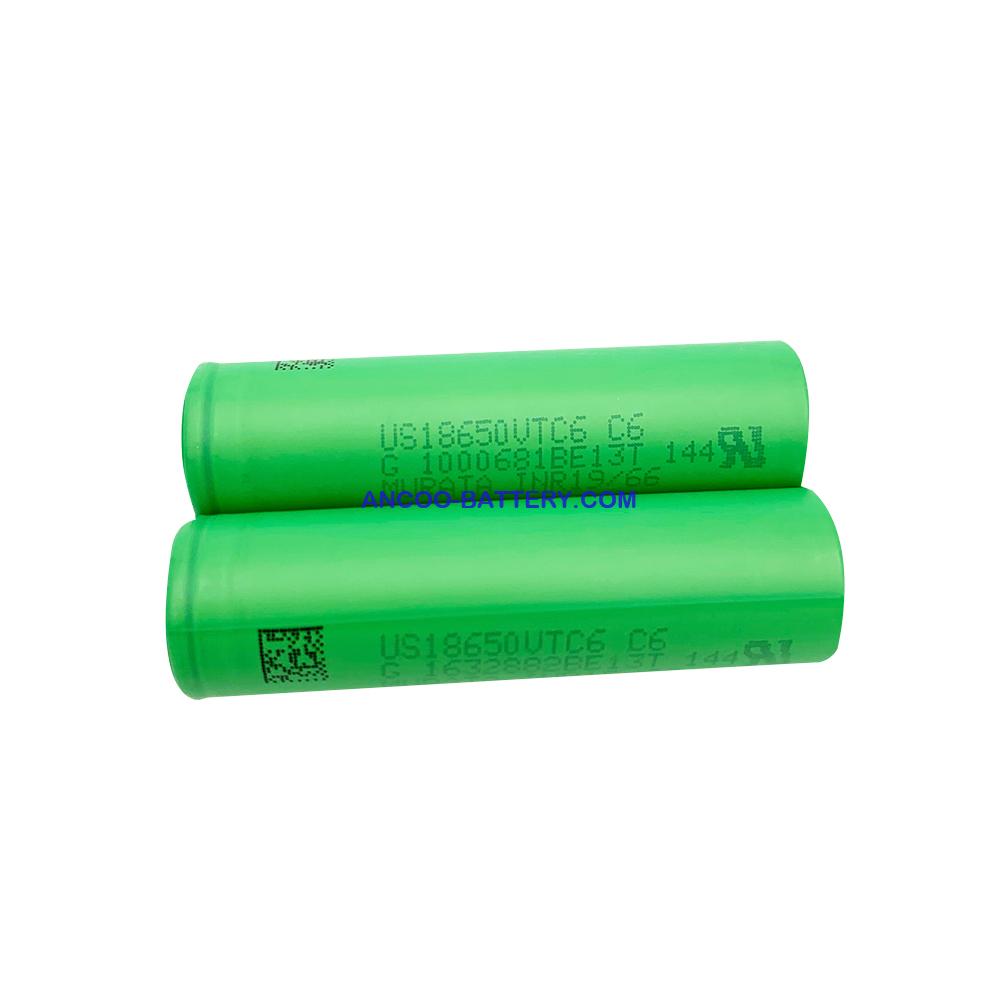

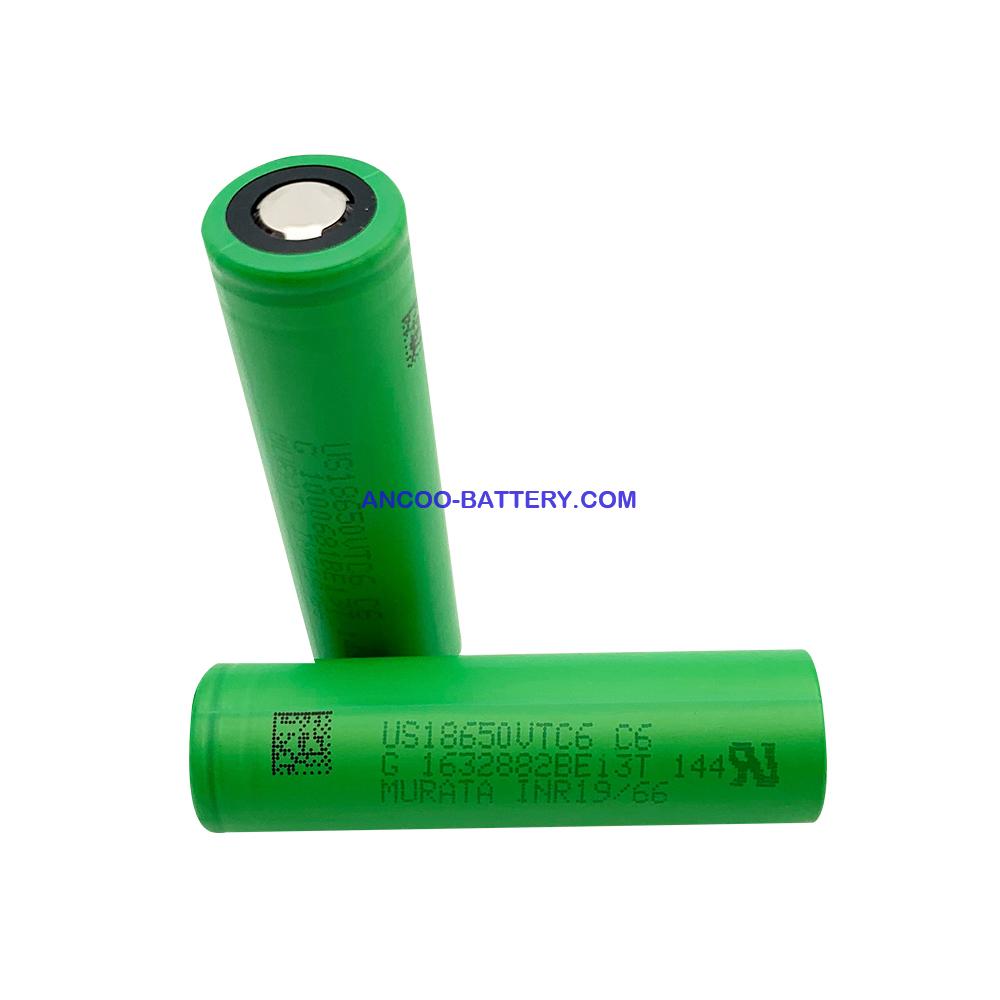

Sony VTC6 Murata US18650VTC6 3000mAh 10C 30A Battery

Sony VTC6 Murata US18650VTC6 3000mAh 10C 30A Battery

INQUIRY

>50K in stock for Murata/Sony VTC6.

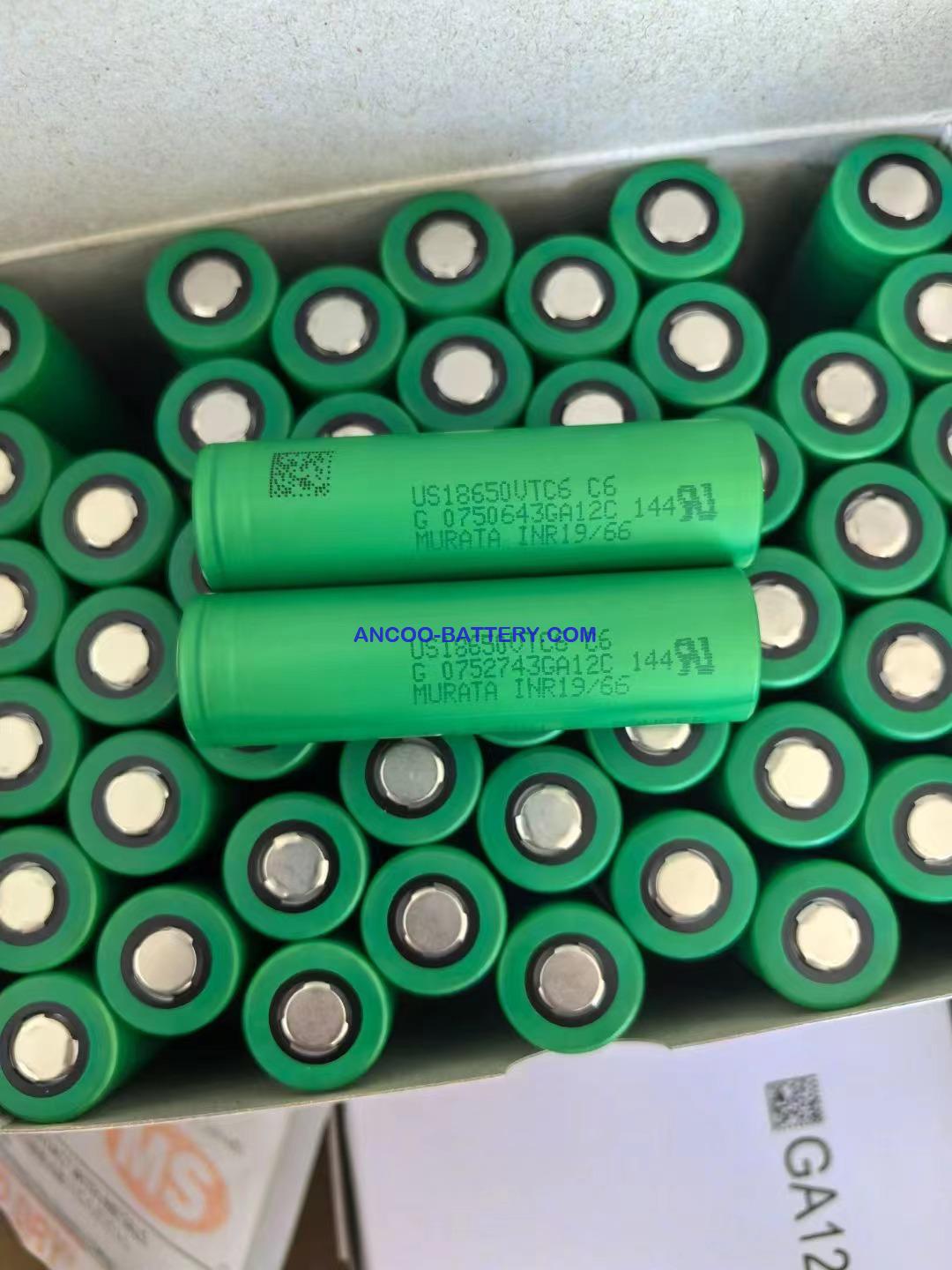

2024 fresh date code and sealed with original packing.

Fast shipping by air or sea with MSDS, UN38.3 test summary.

We hold full Cell Specification, UL1642, CB IEC62133 certificates and test reports.

1. General specification of Murata VTC6

1.1.1 Model Number :US18650VTC6
1.1.2 Cell Name : US18650-VTC6
1.1.3 Sony Code :49939240
1.2.1 Cell Shape :Cylindrical
1.2.2 Size(with plastic tube) :Diameter 18.50mm max
Length 65.20mm max
1.2.3 Weight: 46.6g Average
1.3 Safety Regulation

Sony acquired UL1642
Sony acquired IEC62133 2nd edition.
Sony acquired Korean regulation
Sony acquired Taiwan Commodity Inspection Act(CNS 15364)

2. Cell Specifications of US18650VTC6

Nominal Capacity at 0.2ltA: 3120mAh 11.23Wh discharge 2.0V cut off at 23C
Rated Capacity at 0.2ltA: 3000mAh 10.8Wh discharge 2.0V cut off at 23*C
Capacity at 1ItA (typ.): 2850mAh 10.12Wh discharge 2.5V cut off at 23C
Capacity at 10A (typ.): 2700mAh 9.18Wh discharge 2.5V cut off at 23C
Nominal Voltage: 3.6V
Internal Impedance: 13mQ Typ. measured by AC1kHz

3. Standard Charge Condition of Murata 18650VTC6

Charge Method : constant current constant voltage
Charge Up Voltage : 4.2土0.05V
Charge Current : 3.0A
Charge Time : 2.5h
Ambient Temperature :23C

Sony / Murata VTC6 Datasheet

2024+ FRESH Murata US18650VTC6

Sony/Murata Battery Cells Lineup

Model	Nominal Capacity (mAh)	Positive Electrode Material	Negative Electrode Material	Nominal (Rated) Voltage (V)	Weight (g)	Diameter (mm)	Height (mm)	Continuous Max Discharge Current (A)	Features
US18650VTC4 (NRND)	2,100	NCM	Gr	3.6	45.0	φ18	65	30	power
US18650VTC4A (NRND)	2,100	NCM	Gr	3.7	46.8	φ18	65	35	power
US18650VTC5	2,600	NCA	Gr	3.6	44.3	φ18	65	30	power
US18650VTC5A	2,600	NCA	Gr, SiO	3.6	47.1	φ18	65	35	power
US18650VTC5D	2,800	NCA	Gr, SiO	3.6	46.7	φ18	65	35	power
US18650NC1 (NRND)	2,900	NCA	Gr	3.6	45.3	φ18	65	8	runtime
US18650VTC6	3,120	NCA	Gr, SiO	3.6	46.6	φ18	65	30	power
US18650VC7 (NRND)	3,500	NCA	Gr, SiO	3.6	47.2	φ18	65	8	runtime
US18650FTC1 (NRND)	1,100	LFP	Gr	3.2	38.8	φ18	65	20	life, safety
US21700VTC6A	4,100	NCA	Gr, SiO	3.6	67.5	φ21	70	40	power
US26650FTC1A (NRND)	3,000	LFP	Gr	3.2	84.0	φ26	66	25	life, safety
