Murata Battery Cells

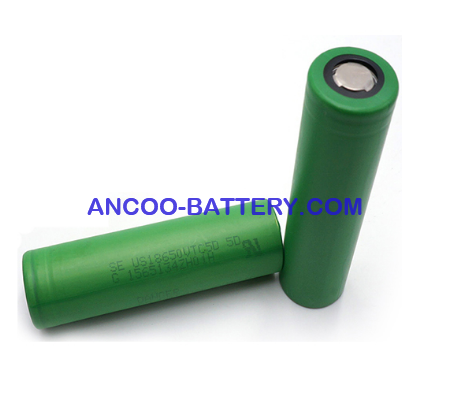

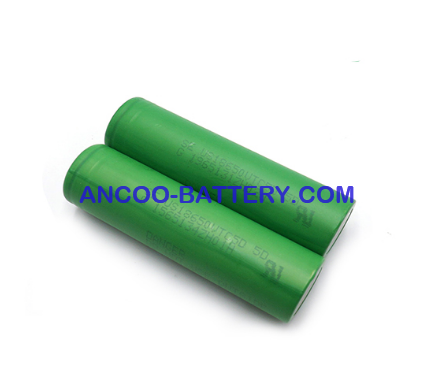

  • Murata 18650 VTC5D 2800mAh 3.6V 35A High Power Battery
  • Murata 18650 VTC5D 2800mAh 3.6V 35A High Power Battery
Murata 18650 VTC5D 2800mAh 3.6V 35A High Power BatteryMurata 18650 VTC5D 2800mAh 3.6V 35A High Power Battery

Murata 18650 VTC5D 2800mAh 3.6V 35A High Power Battery

Murata 18650 VTC5D 2800mAh 3.6V 35A High Power Battery

>50K in stock. Brand new and sealed with original packing.

RoHS, CB, UL1642, IEC62133, MSDS, UN38.3 test reports and cergificates.


1.1 This product specification is applied to “Lithium-Ion Rechargeable Batteries” used for Power tools.

1.2 Product Category: Lithium-Ion Rechargeable Battery
1.3 Cell Type: US18650VTC5D
1.4 Cell Designation based on IEC61960.
INR19/66
1.5 Acquired Safety Standard(Registration name : US18650VTC5D)
UL1642 : File No.MH12566
UL62133 : File No.MH61426
IEC62133 2nd Edition
Taiwan Commodity Inspection Act (CNS 15364)
Indian Compulsory Registration Order, IS 16046:2015
(Murata Energy Device Singapore Pte. Ltd. Product Only)
1.6 Applicable Safety Standard
United Nations, Recommendations on the Transport of Dangerous Goods (UN38.3)
Japan, Electrical Appliance and Material Safety Law
2.1 Rated Capacity 2700mAh Discharge at 0.2ItA, 2.0V cut-off
23±2deg.C, after Standard Charging.
2.2 Maximum Charging Voltage 4.25V
2.3 Discharging Cut-off Voltage 2.5V Recommended Voltage
2.0V Lower limited Voltage
2.4 Continuous Maximum Charging Current 6.0A
2.5 Continuous Maximum Discharging Current 35A (With 90deg.C temperature cut)
2.6 Allowable Environment Temperature
Charging 0~+60deg.C Refer to the cell temperature spec of
2.8 for cell surface Discharging -20~+60deg.C temperature.
2.7 Weight 46.7 ±1.5g With tube
※ Cell condition at shipment SOC (State Of Charge ) not exceed 30% of rated capacity.
※ In the case of air transportation, it corresponds to dangerous goods according to IATA's Dangerous
Goods Regulations.Depending on the rated value of the products (pack) set by the customer, there
would be possibility to interfere with the Air Transport Prohibited items in case of SOC≧30%.






Model Nominal Capacity
(mAh)
Positive Electrode
Material
Negative Electrode
Material
Nominal (Rated)
Voltage (V)
Weight
(g)
Diameter
(mm)
Height
(mm)
Continuous Max
Discharge Current (A)
Features
US18650VTC4 (NRND) 2,100 NCM Gr 3.6 45.0 φ18 65 30 power
US18650VTC4A (NRND) 2,100 NCM Gr 3.7 46.8 φ18 65 35 power
US18650VTC5 2,600 NCA Gr 3.6 44.3 φ18 65 30 power
US18650VTC5A 2,600 NCA Gr, SiO 3.6 47.1 φ18 65 35 power
US18650VTC5D 2,800 NCA Gr, SiO 3.6 46.7 φ18 65 35 power
US18650NC1 (NRND) 2,900 NCA Gr 3.6 45.3 φ18 65 8 runtime
US18650VTC6 3,120 NCA Gr, SiO 3.6 46.6 φ18 65 30 power
US18650VC7 (NRND) 3,500 NCA Gr, SiO 3.6 47.2 φ18 65 8 runtime
US18650FTC1 (NRND) 1,100 LFP Gr 3.2 38.8 φ18 65 20 life, safety
US21700VTC6A 4,100 NCA Gr, SiO 3.6 67.5 φ21 70 40 power
US26650FTC1A (NRND) 3,000 LFP Gr 3.2 84.0 φ26 66 25 life, safety
