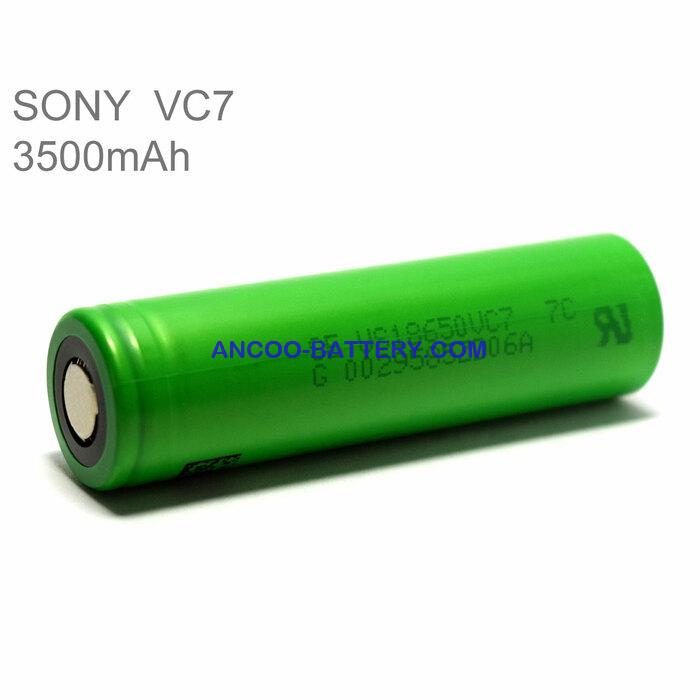

Murata US18650VC7 3500mAh 10A Li-ion Cells

Murata US18650VC7 Li-ion Cell Technical Information


1.General
1.1 Name and Code
1.1.1 Cell Name US18650VC7
1.1.2 Sony Code 49941610
1.2.1 Cell Shape Cylindrical
1.2.2 Size (with plastic tube) Diameter 18.50mm max
Length 65.25mm max
1.2.3 Weight 47.2g Average(TBD)
1.3 Safety Regulation:
UL1642
lEC62133 2nd edition
Korean regulation
Taiwan Commodity Inspection Act(CNS 15364)


2. Cell Specifications
Nominal Capacity: 3500mAh average capacity (0.2ltA discharge) 12.60Wh 3.6V (average discharge voltage)
Rated Capacity: 3400mAh minimum capacity (0.2ltA discharge) 12.24Wh
Capacity at 0.5ltA: 3230mAh average capacity
Capacity at 5A: 2720mAh average capacity
Nominal Voltage: 3.6V
Internal Impedance 23mΩ Typ. measured by AC1kHz
Cycle Performance: 70% Initial capacity at 300 cycles

Min.of Charge at 1.0A, Cut off current 100mA Discharge at 5A
2.5V cut off, at room temperature.


*Standard Charge Condition
Charge Method :constant current constant voltage
Charge Up Voltage :4.2±0.05V
Charge Current :1.0A
Charge Time :5.5h
Ambient Temperature :23℃
