Sanyo Lithium-ion Cells

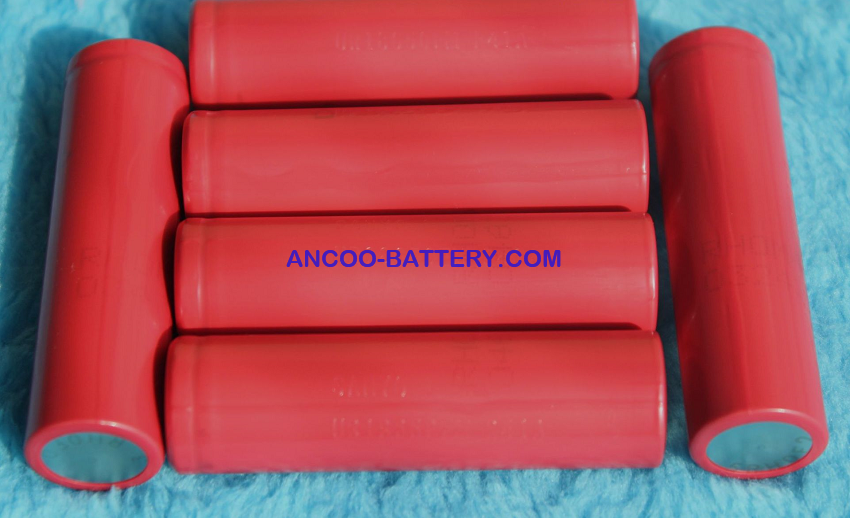

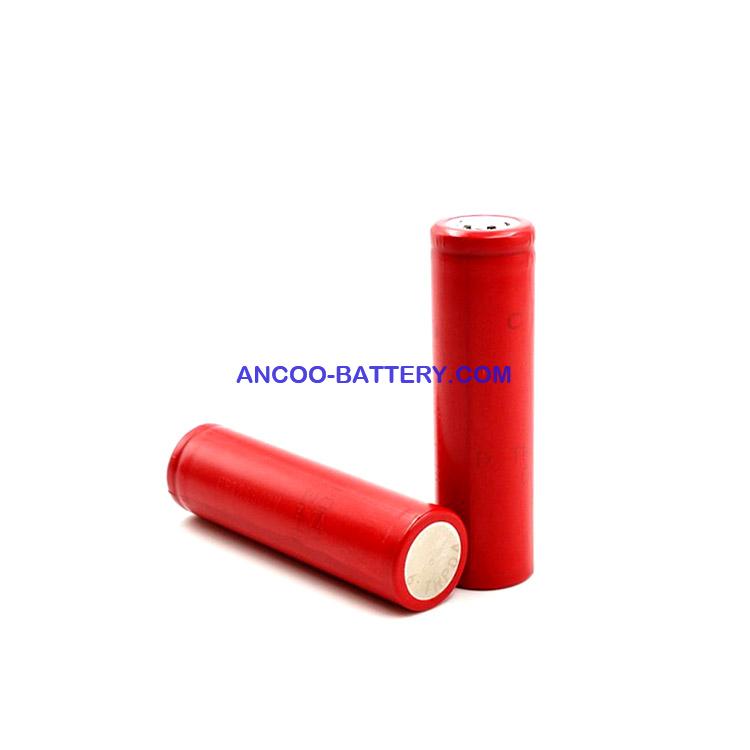

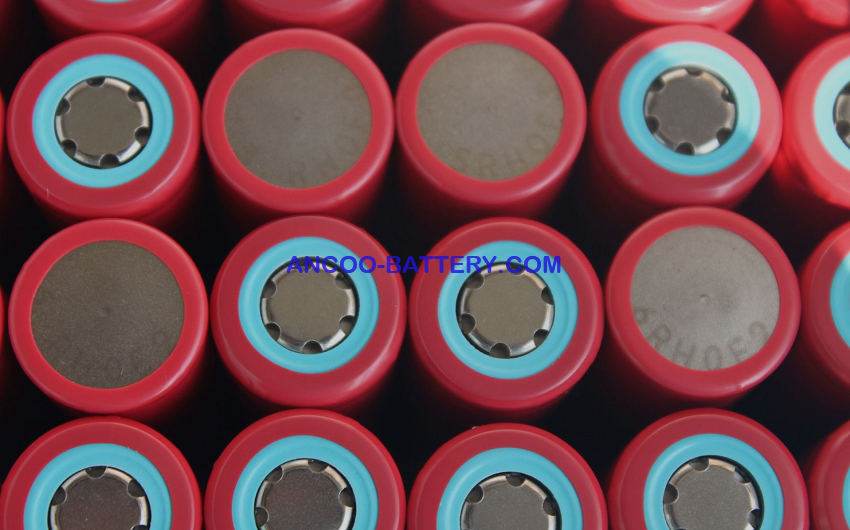

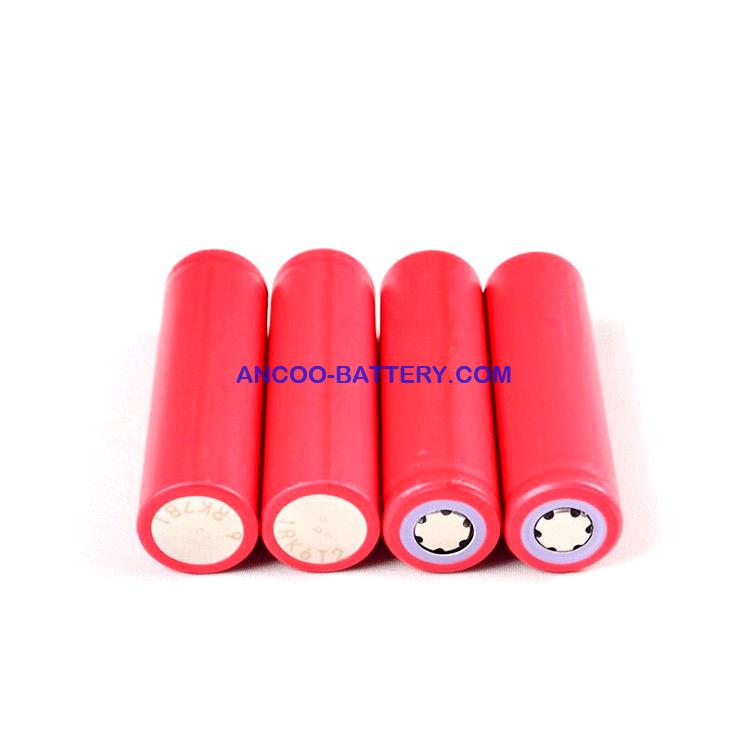

SANYO UR18650ZY 2600mAh 18650 Battery with PTC

We hold full MSDS UN38.3 SGS BIS CB IEC62133 UL1642 and Product Specification.

Item		Specifications	Notes
Rated Capacity		2450mAh	0.49A discharge at 20°C
Capacity(Minimum)		2500mah	0.50A discharge at 25°C
Capacity (Typical)		2600mah	Reference only
Nominal Voltage		3.7V	0.50A discharge
Discharging End Voltage		2.75V	-
Charging Curent (Std.)		1.75A	-
Charging Voltage		4.20±0.03V	-
Charging Time (Std.)		3.0 hours	-
Contiuous Discharge Curent (Max.)		5.0A	0~+40°C
Internal Resistance		≤ 100mΩ	AC impedance 1 kHz
Weight		less than 48.0g	-
Operating Temperature	Charge	0 ~ +45°C	-
Operating Temperature	Discharge	-20 ~ +60°C	-
Storage Conditions	≤ 1 month	-20 ~ +50°C	Recoverable Capacity: 80%
	≤ 3 months	-20 ~ + 40°C
	≤ 1 year	-20 ~ + 20°C
