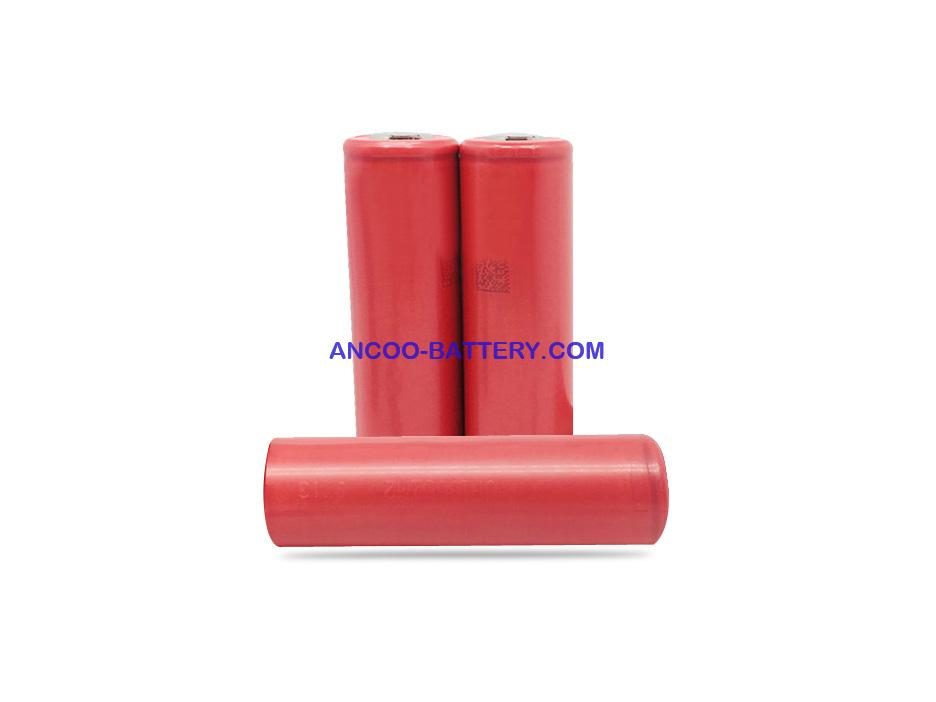

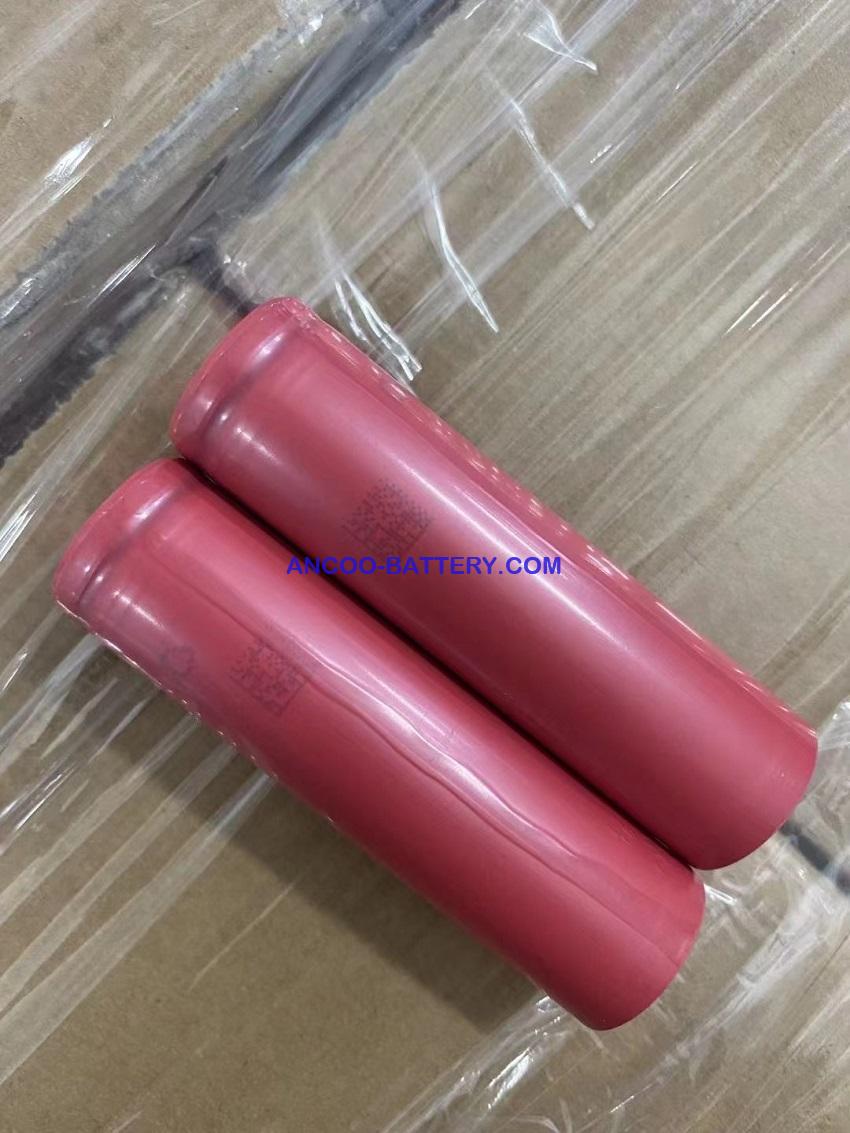

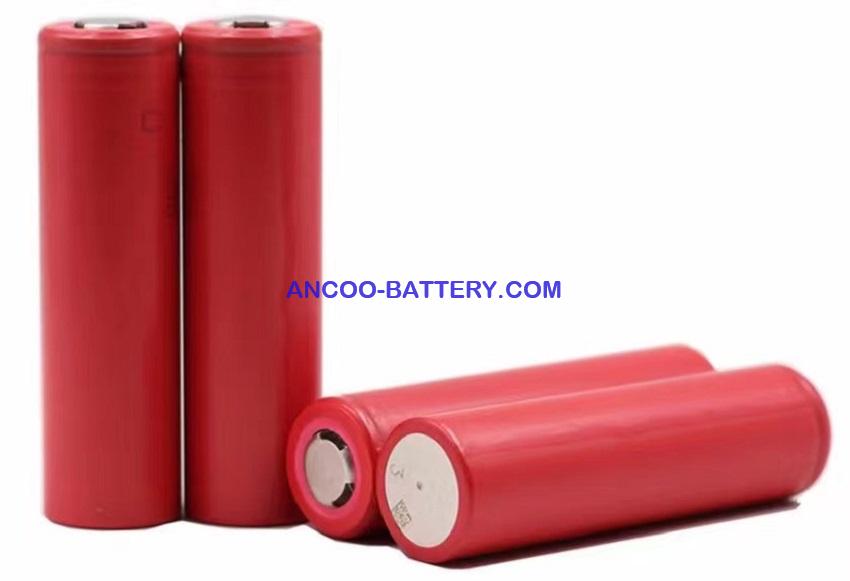

Panasonic UR1865ZM2 2500mAh 3C 18650 Battery

Panasonic UR1865ZM2 2500mah 3C Battery

1. >100K in stock, Panasonic ZM2 New cells, contact us to get a special offer.
2. Fast shipping by air or ocean in original packing.
3. We hold Datasheet MSDS UN38.3 UL CB IEC62133 SGS PSE BIS and Test Reports.

Panasonic ZM2 Cell Specification

Model: UR1865ZM2
Minimum capacity: 2470 mAh
Nominal Capacity: 2550 mAh
Nominal voltage: 3.6V
Max. Continuous discharge current: 3C, 7.5A
Charging voltage 4.20V
Plus pool: Flat Top
Chemistry: LiNiMnCoO2

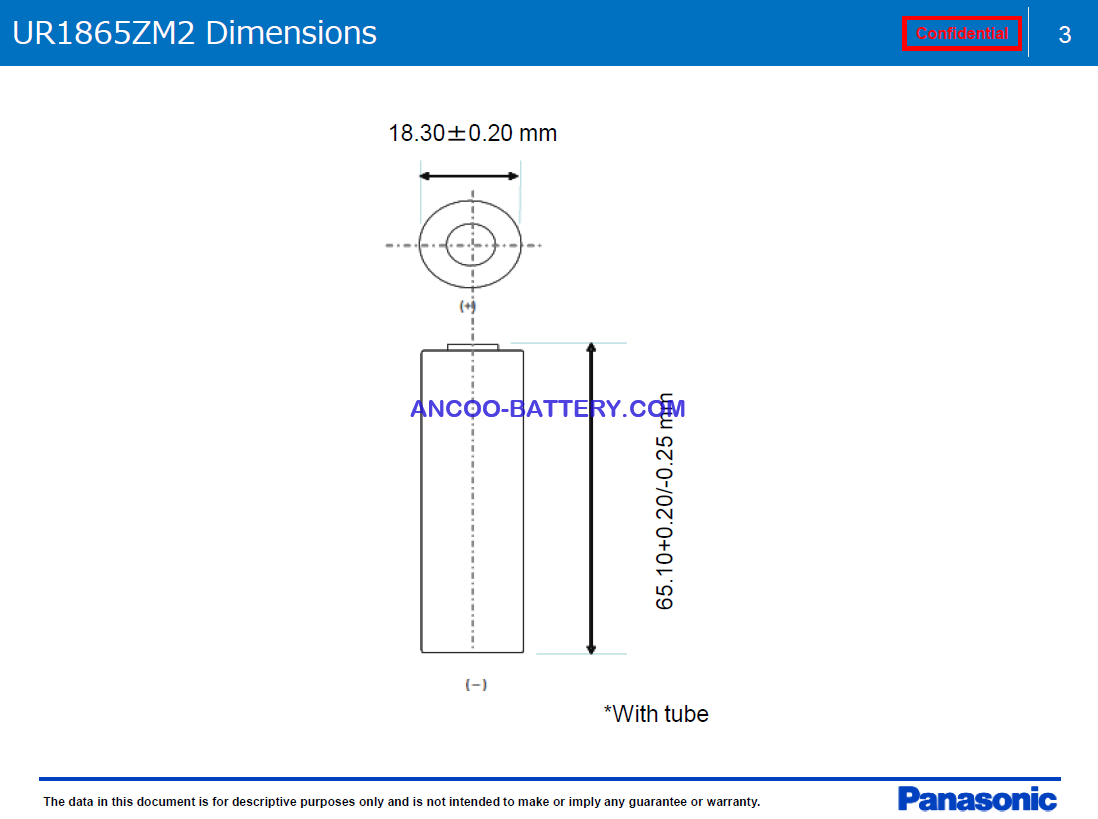

Diameter: 18.35mm ± 0.15mm
Height: 65 mm ± 0.2 mm
Weight: 46.6g ± 1.2g
Made in China

Data Sheet of UR1865ZM2

Item			Specifications	Notes
Rated Capacity			2420mAh	0.49A(0.2C) discharge at 20℃
Capacity		Minimum	2470mAh	0.49A(0.2C) discharge at 25℃
		Typical	2550mAh	Reference only0.49A(0.2C) discharge at 25℃
Nominal Voltage			3.6V	0.49A(0.2C) discharge
Discharge End Voltage			2.5V	-
Charging Current(Std.)			1.24A(0.5C)	10~+45℃
			0.62A(0.25C)	0~+10℃
Charging Voltage			4.20±0.03V	-
Charging Cut Current			49mA(1/50C)	-
Continuous Discharge Current(Max.)			8.0A	0~+40℃
Internal Resistance			less than 40mS	AC impedance 1 kHz
Weight			less than 46.4g	-
Operating Temperature		Charge	0~+45℃	-
		Discharge	-20~+60℃	-
Storage Conditions SOC 30%	Less than 1 month		20~+50℃	Recoverable Capacity 80%
	Less than 3 months		-20~+40℃
	Less than 1 year		-20~+20℃
