Panasonic Battery Cells

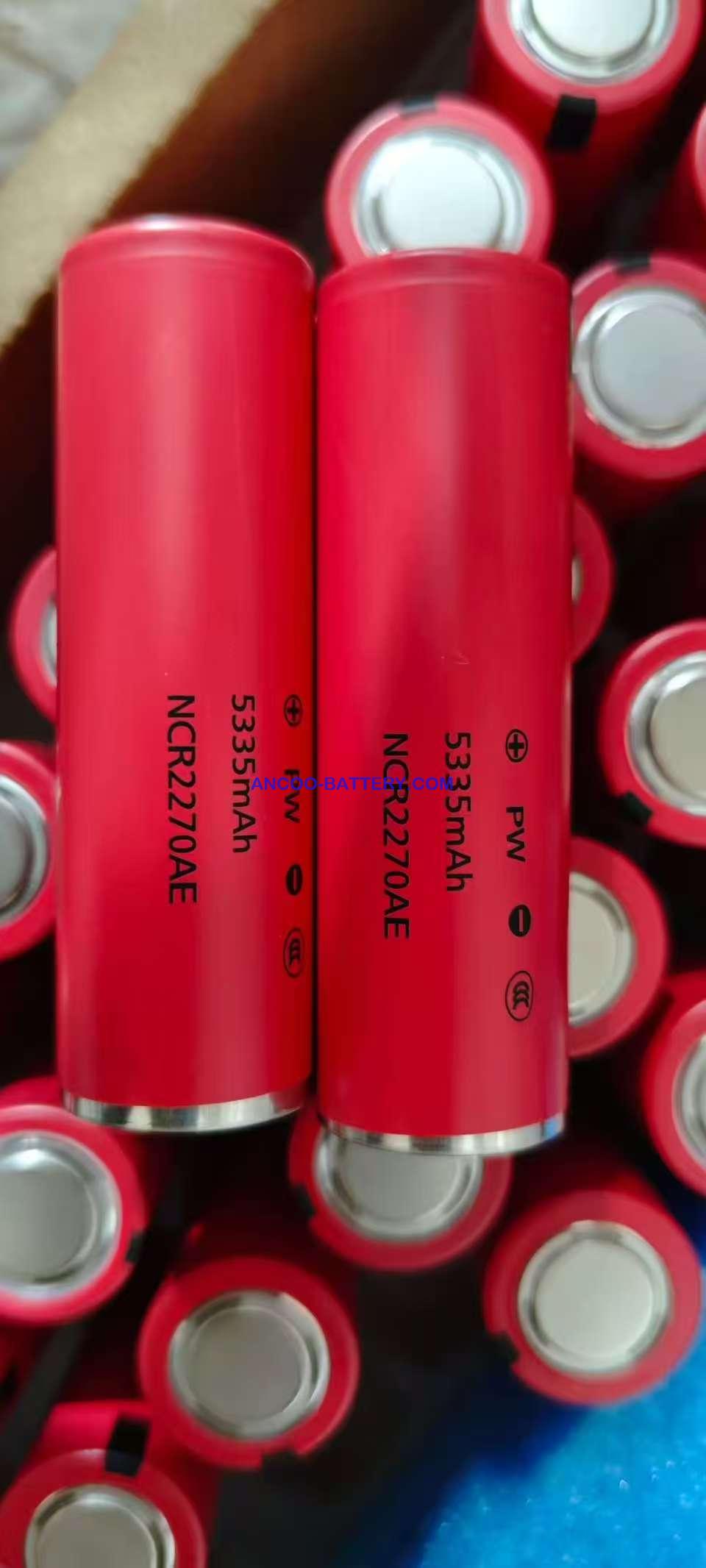

NCR2270AE Panasonic 22700 5630mAh Battery

>20K fresh cells in stock, fast shipping by air or ocean
We hold full Cell Specification, SDS, UN38.3, UL1642, CB IEC62133 test reports.

Product Name	Lithium-ion Batteries
Series / Type	Cylindrical type Lithium-ion Cells
Product Number	NCR2270AE

Items	Specifications
Manufacturer	Panasonic
UL model	NCR2270A
Typical Capacity	5630mAh
Minimum Capacity	5435mAh
Nominal Voltage	3.6V
End Voltage	2.5V
Charge Voltage	4.2V max., CC-CV
Max. Continuous Charge Current	2718mA
Max. Continuous Discharge Current	12A
Weight	74.5g approx.
Dimension	(D)22mm*(H)71mm max.
Temperature	Charge: 0~45℃ Discharge: -20~60℃ Storage: -20~50℃
