Molicel Li-ion cells

  • Molicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion Battery
  • Molicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion Battery
  • Molicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion Battery
Molicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion BatteryMolicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion BatteryMolicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion Battery

Molicel ICP103450DA 2200mAh 3.7V 103450 Lithium-ion Battery

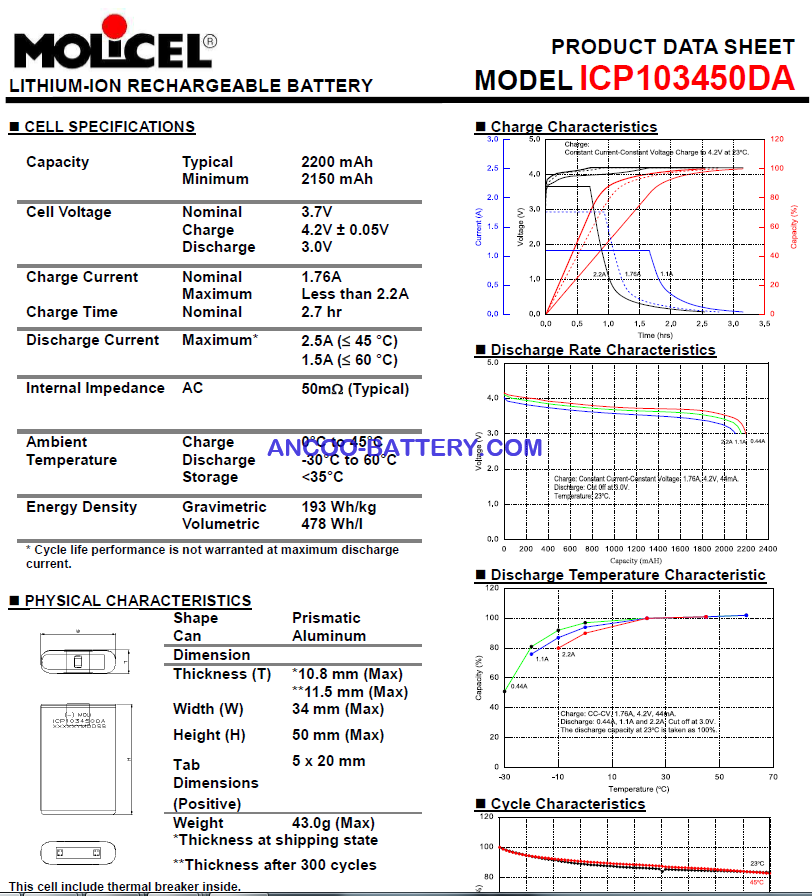

Molicel ICP103450DA Lithium-ion Battery Cell Specifications

MSDS UN38.3 RoHS CB UL1642 IEC62133 passed


Capacity Typical 2200 mAh
Minimum 2150 mAh
Cell Voltage Nominal 3.7V
Charge 4.2V ± 0.05V
Discharge 3.0V
Charge Current Nominal 1.76A
Maximum Less than 2.2A
Charge Time Nominal 2.7 hr
Discharge Current Maximum* 2.5A ( 45 °C) 1.5A (60 °C)
Internal Impedance AC 50m (Typical)
Discharge -30°C to 60°C
Energy Density Gravimetric 193 Wh/kg
Volumetric 478 Wh/l
