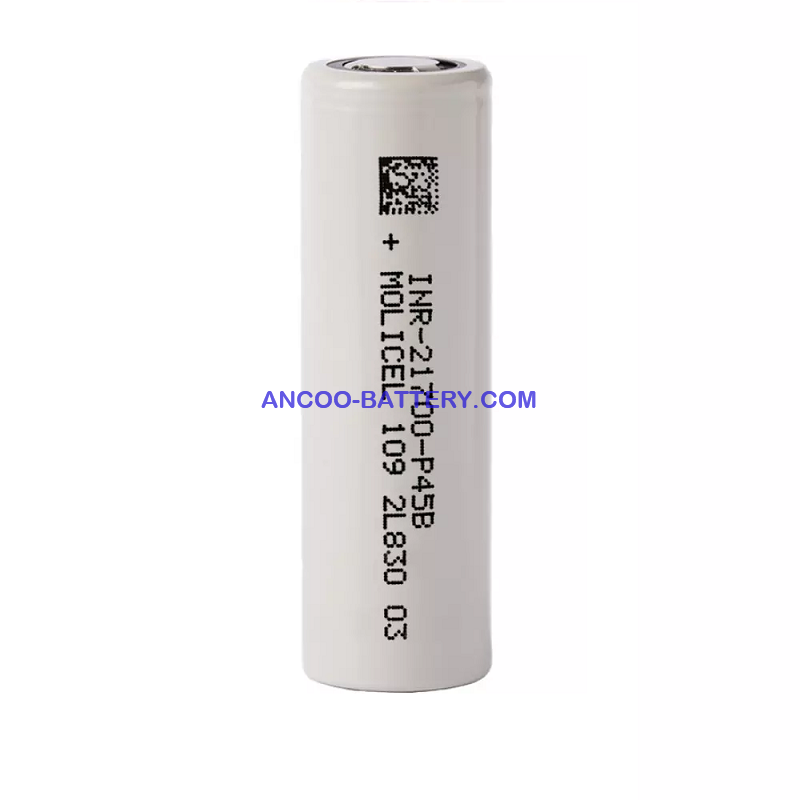

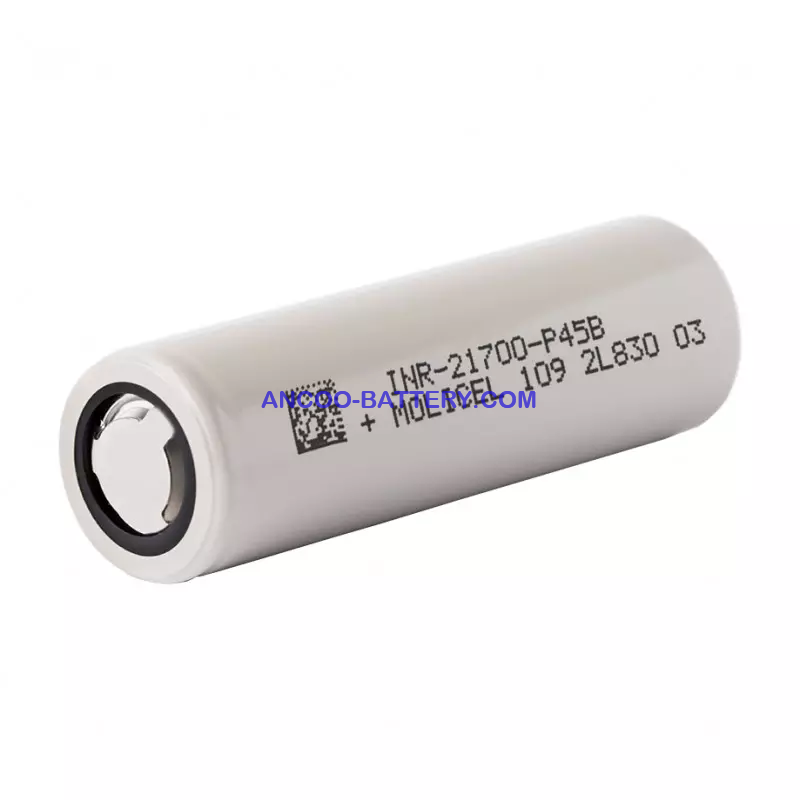

| Manufacturer |
Molicel |
| Model |
P45B |
| Size |
21700 |
|
Positive Terminal |
Flat Top |
| Nominal Capacity |
4500mAh |
| Continuous Discharge Rating (max) |
10C/45A (80C Temp cut-off) |
| Nominal Voltage |
3.6V |
| Maximum Voltage |
4.2V |
| Discharge cut-off Voltage |
2.5V |
| Protected |
No |
| Rechargeable |
Yes |
| Approx. Dimensions |
21.55mm x 70.15mm (Max) |
| Approx. Weight |
70g (Max) |
| Country of Origin |
Taiwan of China |
| Associated Names |
INR-21700-P45B |
| Data Specification Sheet | Molicel P45B Datasheet |
File Number: MH65838
Ratings |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chemistry | Form Factor | Standard | Nominal Voltage (Vdc) | Capacity (Ah) | Use Temperature Range (°C) | Maximum Charging Current (A) | Maximum Charging Power (W) | Maximum Charging Voltage (Vdc) | Maximum Discharge Current (A) | Maximum Discharge Power (W) |
| Li(NiCoAl)O2 | Cylindrical | ANSI/UL 1973 | 3.6 | 4.35 | 70 for charging, 80 for discharging | 13.5 | 4.25 | 60 | ||
