Molicel Battery Cells

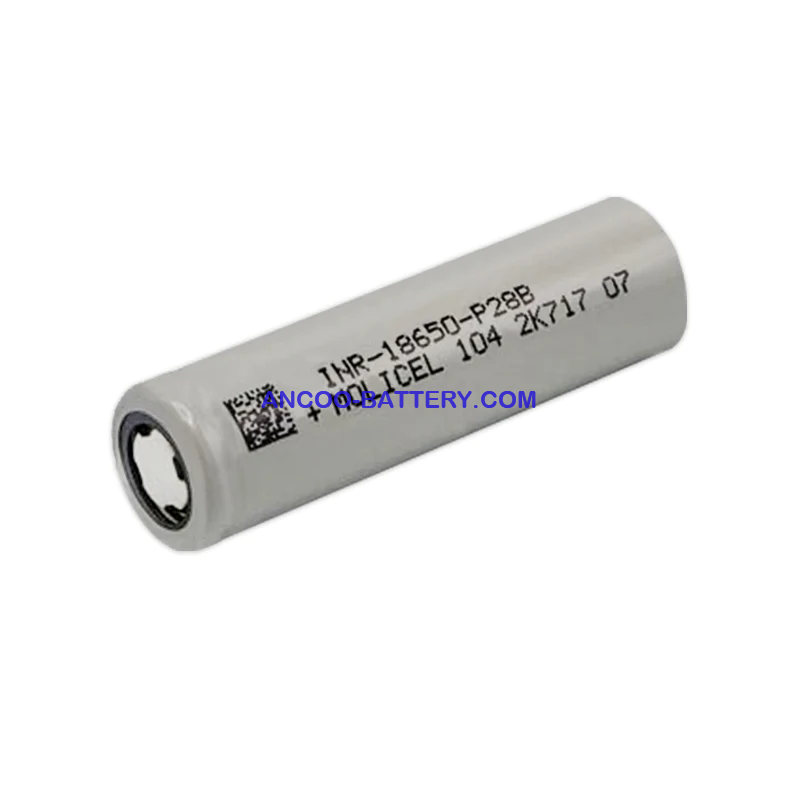

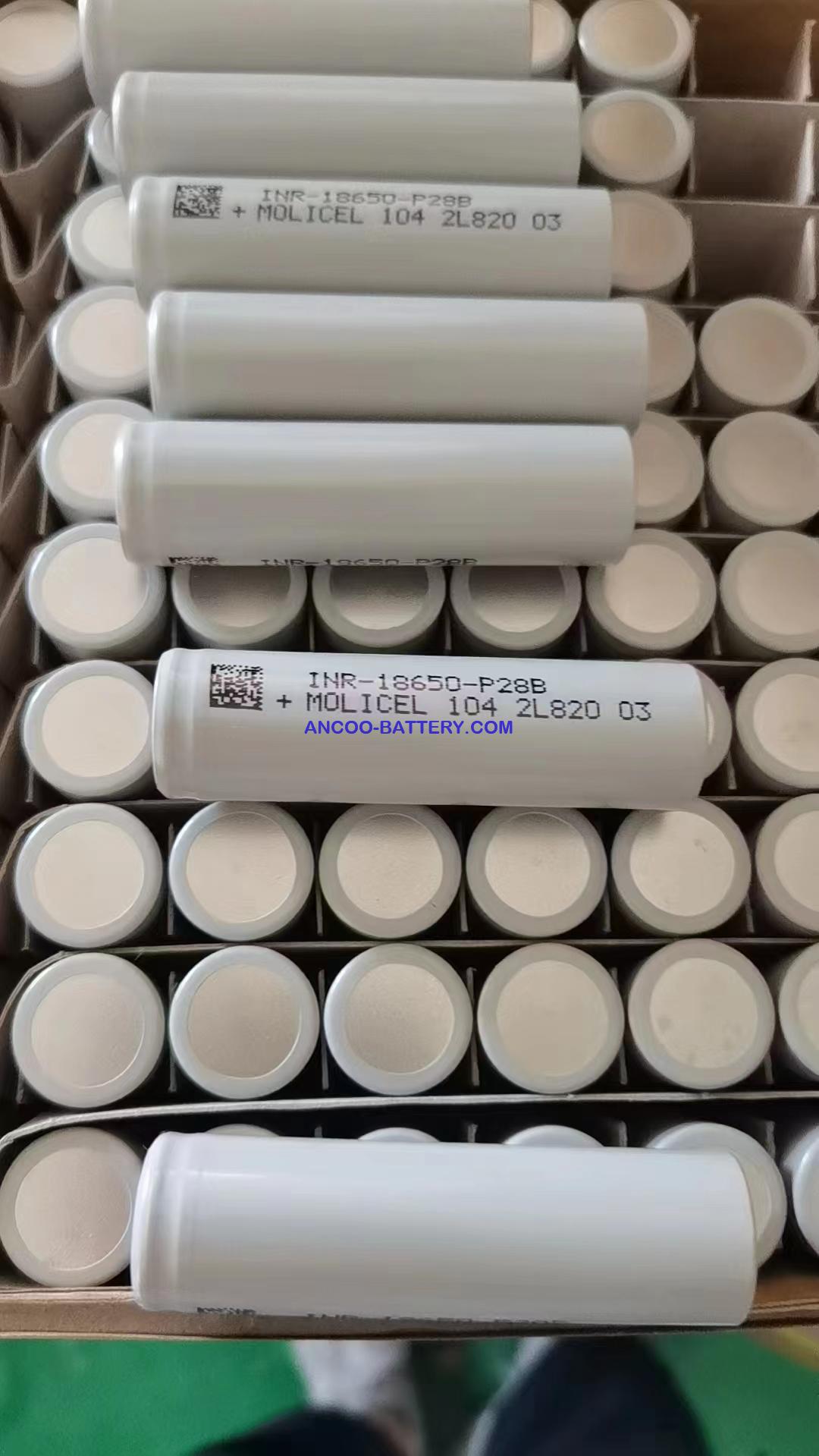

MOLI P28B 18650 2800mAh 40A Super Power Battery

INQUIRY

MOLICEL INR-18650-P28B Low Temperature Lithium-ion Battery

In stock, we hold full MSDS UN38.3 RoHS UL1642 UL62133 BIS CB IEC62133.

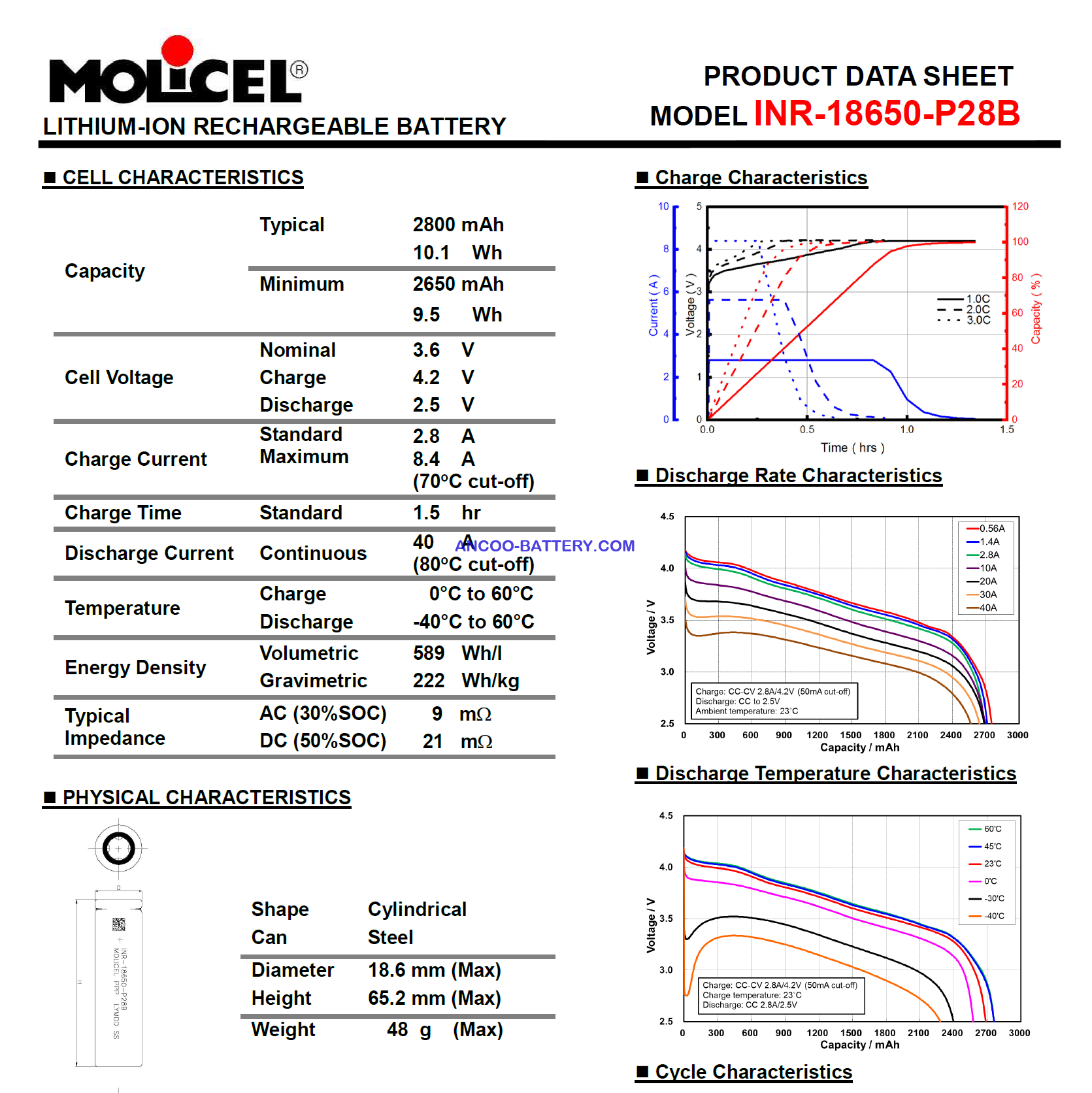

MOLI P28B Cell Specifications

Typical Capacity 2800mAh 10.1Wh
Minimum Capacity 2650mAh 9.5Wh
Nominal Voltage 3.6V
Charge Voltage 4.2V
Discharge 2.5V
Charge Current
Standard 2.8A
Maximum 8.4A(70oC cut-off)
Charge Time Standard 1.5 hr
Discharge Current Continuous 40A (80oC cut-off)
Temperature
Charge 0°C to 60°C
Discharge -40°C to 60°C
Energy Density
Volumetric 589 Wh/l
Gravimetric 222 Wh/kg
