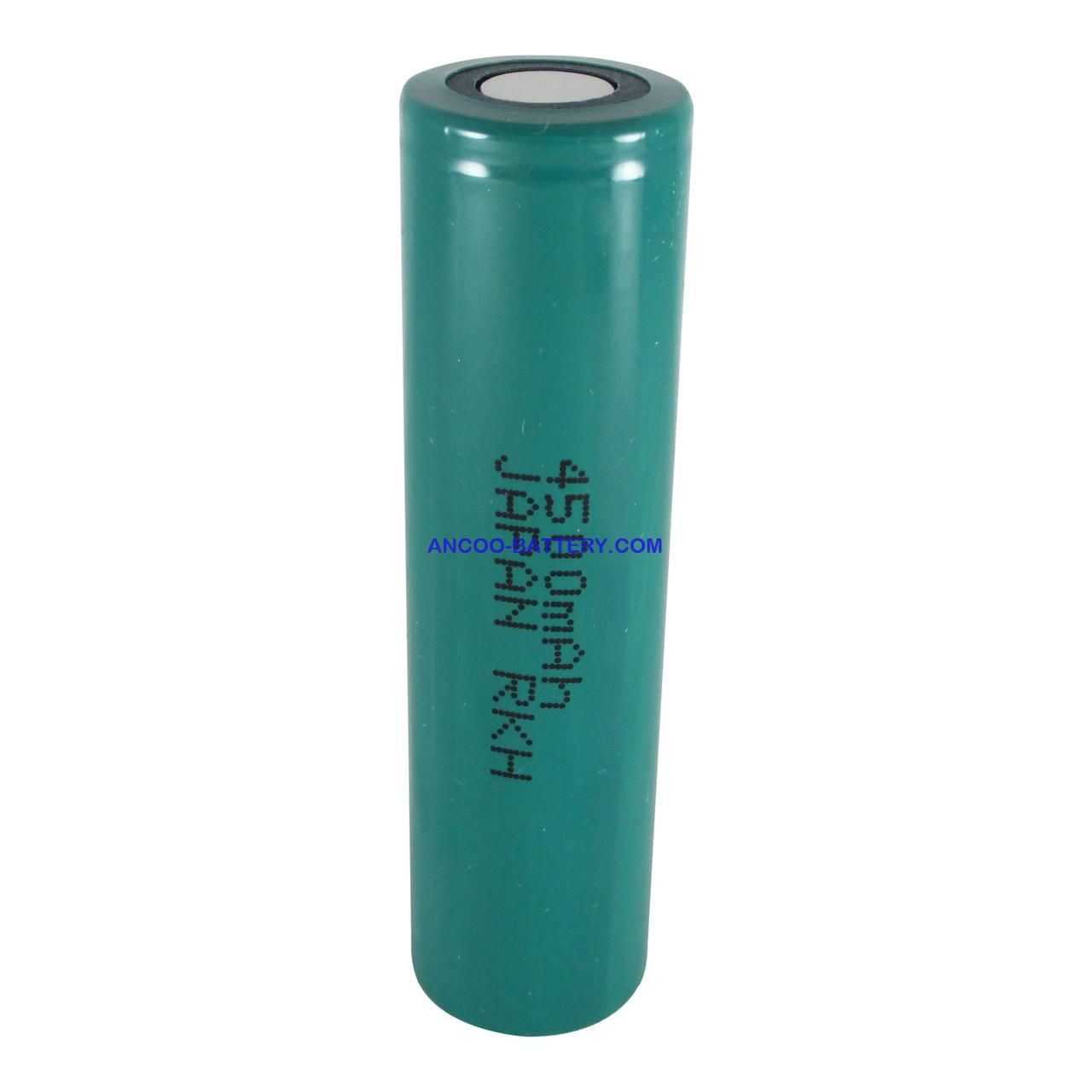

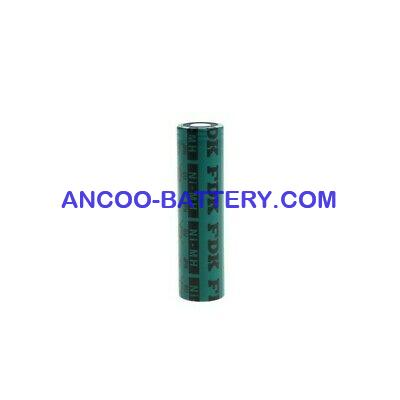

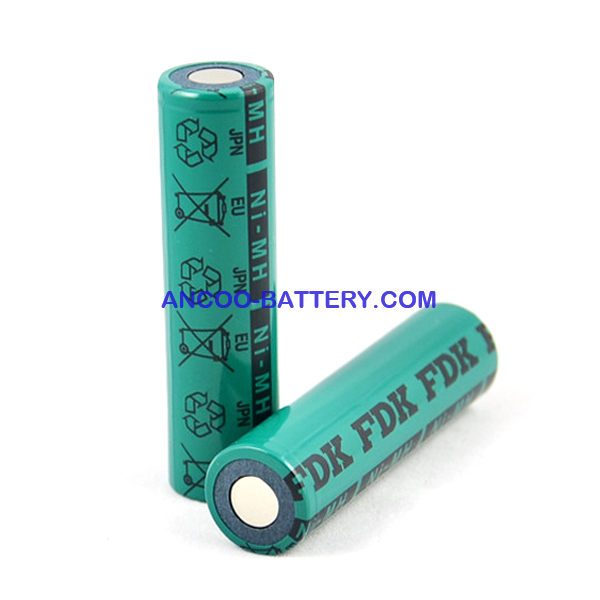

FDK HR-4/3FAU 4500mAh 18670 NiMH Battery

1. >20K in stock for FDK HR-4/3FAU Ni-MH cells.

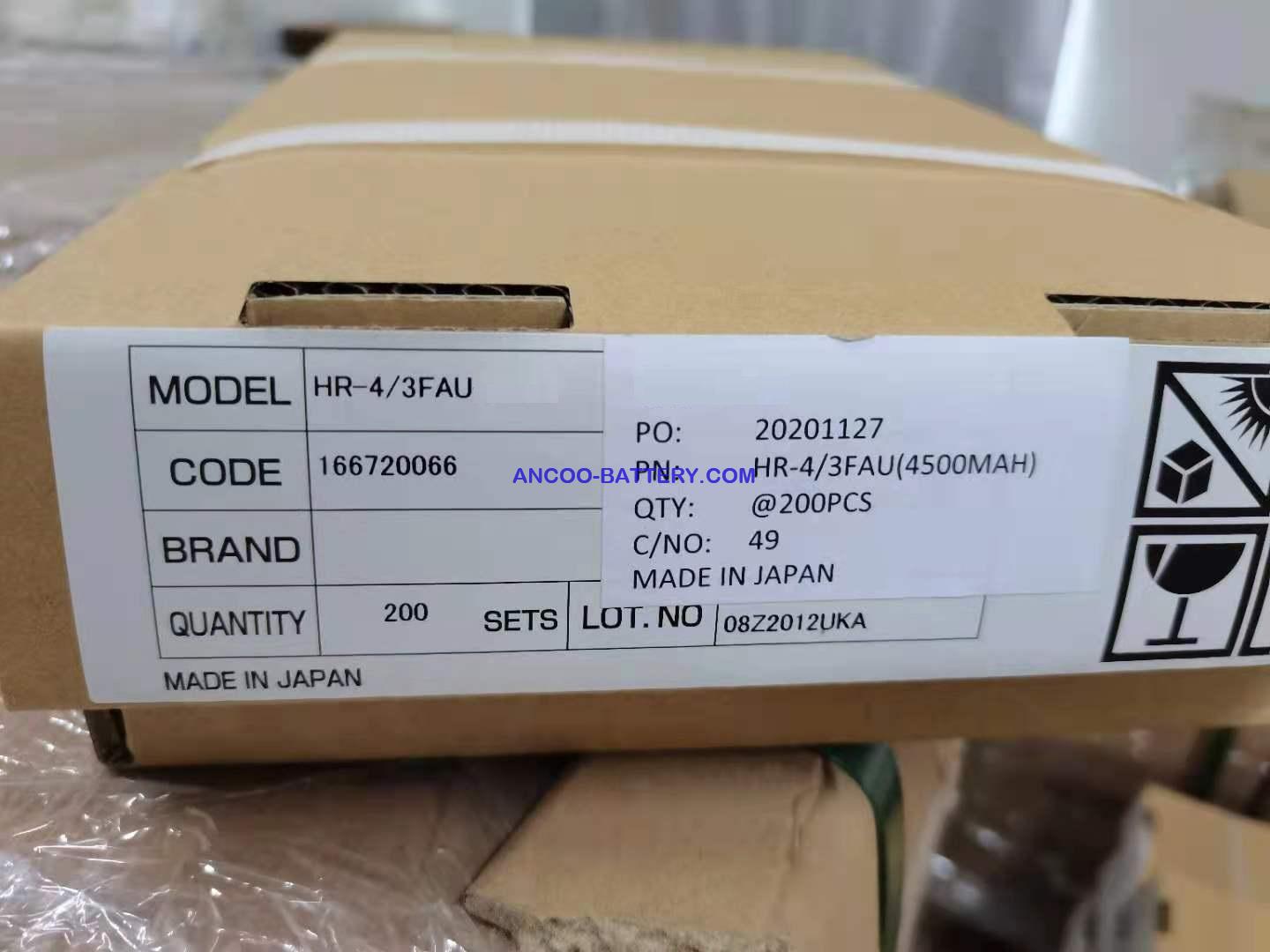

2. Fresh date code, FDK original packaging.
3. Fast shipping by Ocean or Air with the latest MSDS.
4. Contact us for a special offer about FDK NiMH batteries.

FDK HR-4/3FAU Specification

Mfr	FDK, Japan
Series	Ni-MH
Packaging	Bulk
Part Status	Active
Battery Chemistry	Nickel Metal Hydride
Battery Cell Size	4/3FA
Voltage - Rated	1.2V
Capacity	4500mAh
Size / Dimension	0.71" Dia x 2.66" H (18.0mm x 67.5mm)
Termination Style	Flat Top (Non-Extending)
Discharge Rate	820mA
Shelf Life	-
Standard Charge Current	450mA
Standard Charge Time	16Hrs
Weight	56.3 g

FDK Ni-MH Batteries Specifications

Model		HR-5/4AAAU	HR-AAUE Low-temp discharge model	HR-AAU	HR-4/5AU	HR-AU	HR-AUE Low-temp discharge model	HR-4/3AU	HR-4/3FAU
Nominal Voltage		1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V	1.2V
Typical Capacity※1		850mAh	1400mAh	1650mAh	2150mAh	2700mAh	2700mAh	4000mAh	4500mAh
Minimum Capacity※2		760mAh	1250mAh	1500mAh	1950mAh	2450mAh	2450mAh	3600mAh	4100mAh
Quick- Charge※3	Current	850mA	1400mA	1650mA	2150mA	2700mA	2700mA	3000mA	3000mA
	Time	1.1h	1.1h	1.1h	1.1h	1.1h	1.1h	1.4h	1.6h
Dimensions (incl.tube)※4	Diameter	10.5mm	14.2mm	14.2mm	17.0mm	17.0mm	17.0mm	17.0mm	18.0mm
	Height	50.0mm	50.0mm	50.0mm	43.0mm	50.0mm	50.0mm	67.5mm	67.5mm
Weight		14g	25g	27g	33g	37g	39g	53g	59g
Data sheet

• ※1:Typical capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
• ※2:Minimum capacity when a single cell is discharged at 0.2lt after being charged at 0.1lt for 16 hours.
• ※3:Consult FDK according to conditions of use.
• ※4:Including heat shrink tube.

Applications
Audio / video equipment, information / communication devices, lighting equipment, measuring instruments, home appliances, toys etc.

Price List for NICKEL METAL HYDRIDE BATTERIES

MANUFACTURER

VOLTAGE / CAPACITY

SIZE

DIMENSIONS (mm)

PART

LIST PRICE

FDK

1.2 Volts / 730mAh

AAA

10.5 x 44.5

HR-AAAUC

$1.60

FDK

1.2 Volts / 1650mAh

AA

14.5 x 50.0

HR-AAU

$2.00

FDK

1.2 Volts / 2100mAh

4/5A

17.0 x 43.5

HR-4/5AU

$2.30

FDK

1.2 Volts / 2700mAh

A

17.0 x 50.0

HR-AU

$2.40

FDK

1.2 Volts / 4000mAh

4/3A

17.0 x 67.0

HR-4/3A

$2.90

FDK

1.2 Volts / 4500mAh

Fat 4/3A

17.0 x 67.0

HR-4/3FAU

$3.40

Panasonic

1.2 Volts / 4200mAh

Fat 4/3A

18.2 x 67.0

HHR450A

$3.40

Panasonic

1.2 Volts / 2000mAh

4/5 Sub C

23.0 x 34.0

HHR200SCP

$3.20

FDK

1.2 Volts / 10000mAh

D

33.0 x 60.0

HR-DU

$13.00

Saft

1.2 Volts / 15000mAh

F

32.4 x 91.1

VH-F16000

$14.00

CYLINDRICAL CELLS WITH POSITIVE BUTTON

TYPE

VOLTAGE / CAPACITY

DIMENSIONS (mm)

PART

LIST PRICE

FDK

1.2 Volts / 1000mAh

AAA

10.5 x 44.5

HR-4U 1000

$2.0

FDK

1.2 Volts / 2500mah

AA

14.5 x 50.0

HR-3U 2500

$2.8

CYLINDRICAL CELLS WITH SOLDER TABS

TYPE

VOLTAGE / CAPACITY

DIMENSIONS (mm)

PART

LIST PRICE

FDK

1.2 Volts  /  700mAh

AAA

10.5 x 44.5

HR-AAAUTS

$2.00

FDK

1.2 Volts  /  1650mAh

AA

14.5 x 48.3

HR-AAUTS

$2.20

FDK

1.2 Volts / 2100mAh

4/5A

17.0 x 43.5

HR-4/5AUTS

$2.50

FDK

1.2 Volts / 2700mAh

A

17.0 x 50.0

HR-AUTS

$2.60

FDK

1.2 Volts / 4000mAh

4/3A

17.0 x 67.0

HR-4/3ATS

$3.30

FDK

1.2 Volts / 4500mAh

Fat 4/3A

17.0 x 67.0

HR-4/3FAUTS

$3.70

FDK

1.2 Volts / 10000mAh

D

33.0 x 61.0

HR-DUTS

$14.00
