Sanyo Lithium-ion Cells

Sanyo UR18650ZM2 2500mAh 3C 18650 Battery

INQUIRY

Sanyo UR18650ZM2 2500mah 3C 18650 Battery

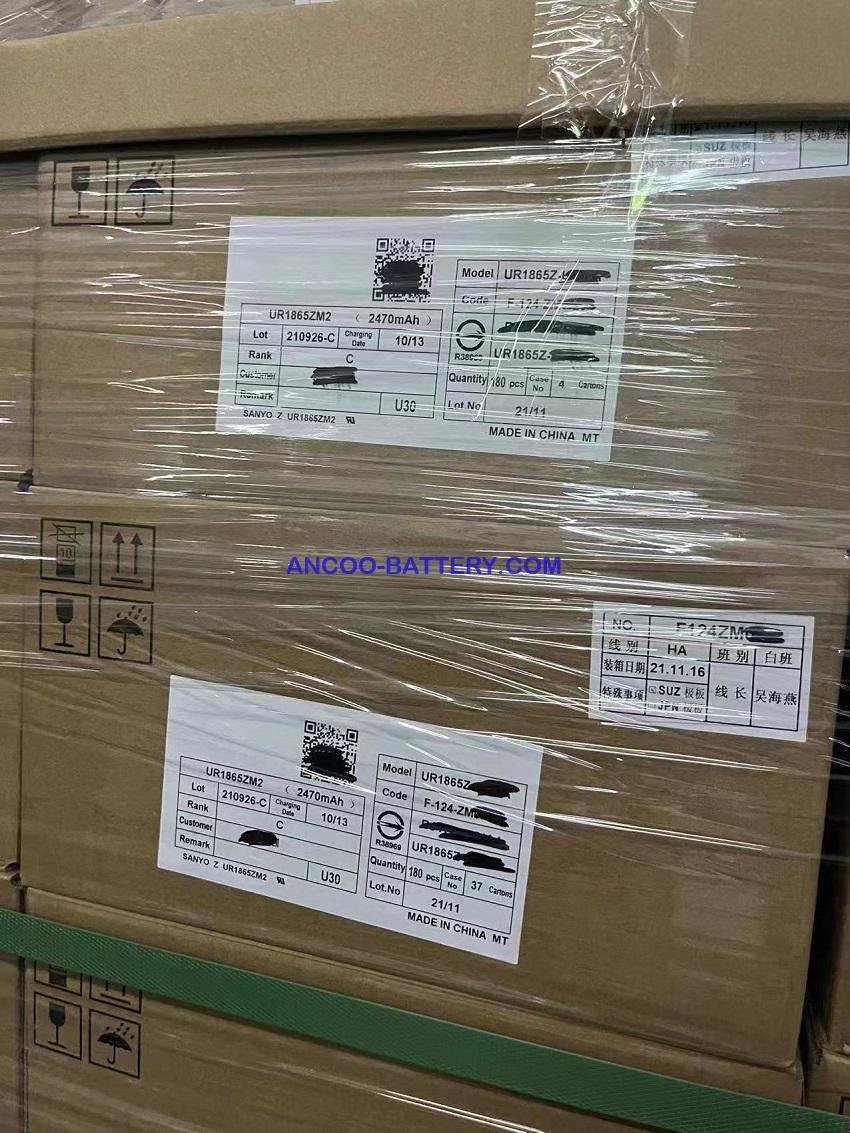

>100K in stock, Grade A cells, original packaging, contact us for a special offer.

Shipping by air or sea with MSDS UN38.3 UL1642 CB IEC62133 SGS PSE RoHS BIS

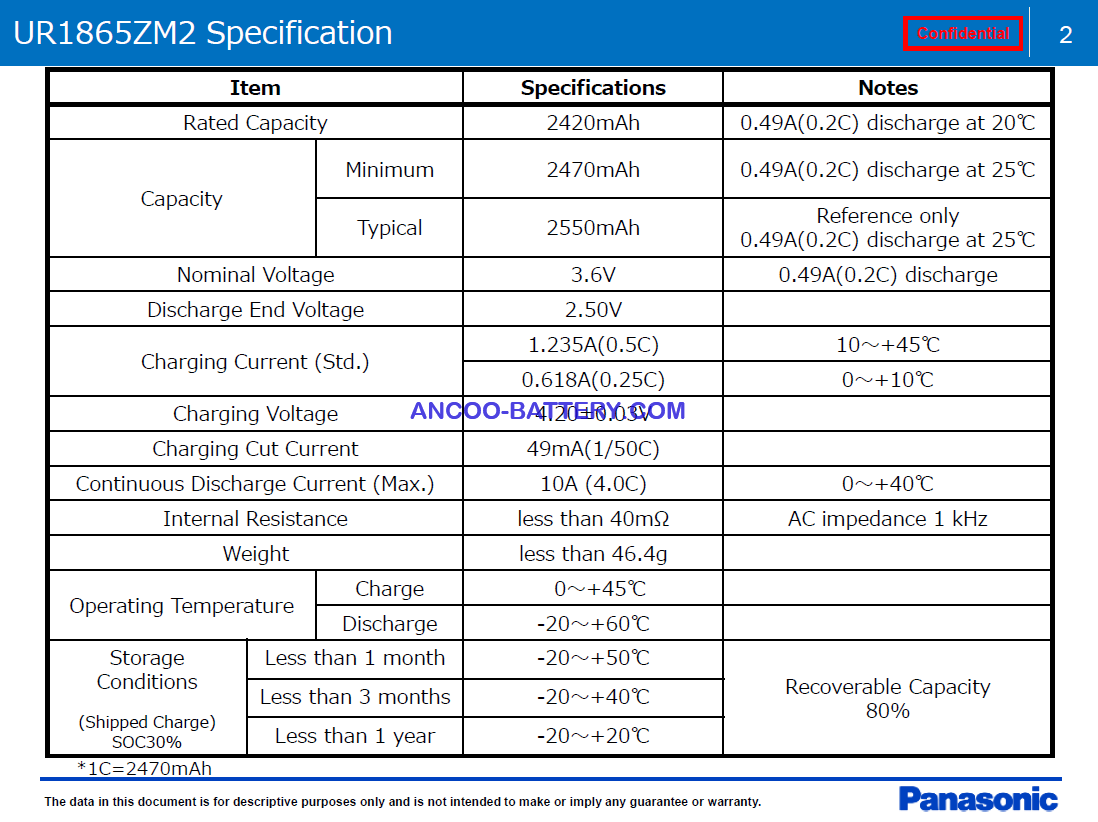

Sanyo ZM2 Specification

Cell Model: UR18650ZM2
Minimum capacity: 2470 mAh
Nominal Capacity: 2550 mAh
Nominal voltage: 3.6V
Max. Continuous discharge current: 3C, 7.5A
Charging voltage 4.20V
Plus pool: Flat Top
Chemistry: LiNiMnCoO2
Diameter: 18.35mm ± 0.15mm
Height: 65 mm ± 0.2 mm
Weight: 46.6g ± 1.2g
Made in China

Type	Voltage (V)	Nominal capacity	Max. cont. current	Dimensions (mm)	Construction
UR18650RX	3,6V	2000mAh	20A	ø 18,5×65,3	Cylindrical
UR18650AY	3,6V	2150mAh	4,3A	ø 18,3×64,9	Cylindrical
UR18650AA	3,6V	2150mAh	5A	ø 18,3×65,1	Cylindrical
UR1865ZM2	3,6V	2550mAh	7.5A	ø 18,3×65,3	Cylindrical
NCR18500A	3,6V	2040mAh	4A	ø 18,5×49,5	Cylindrical
NCR18650BD	3,6V	3030mAh	10A	ø 18,5×65,3	Cylindrical
NCR18650BF	3,6V	3250mAh	4,87A	ø 18,5×65,3	Cylindrical
NCR18650GA	3,6V	3350mAh	8A	ø 18,5×65,3	Cylindrical
