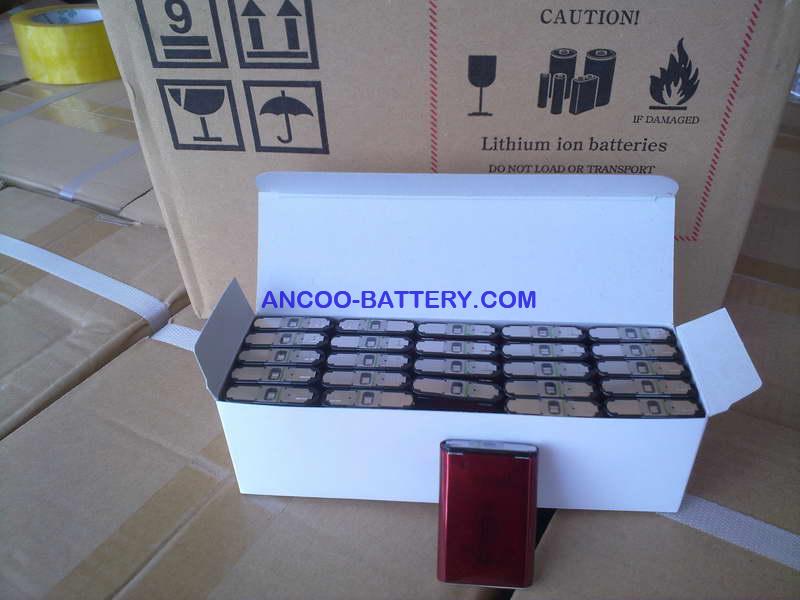

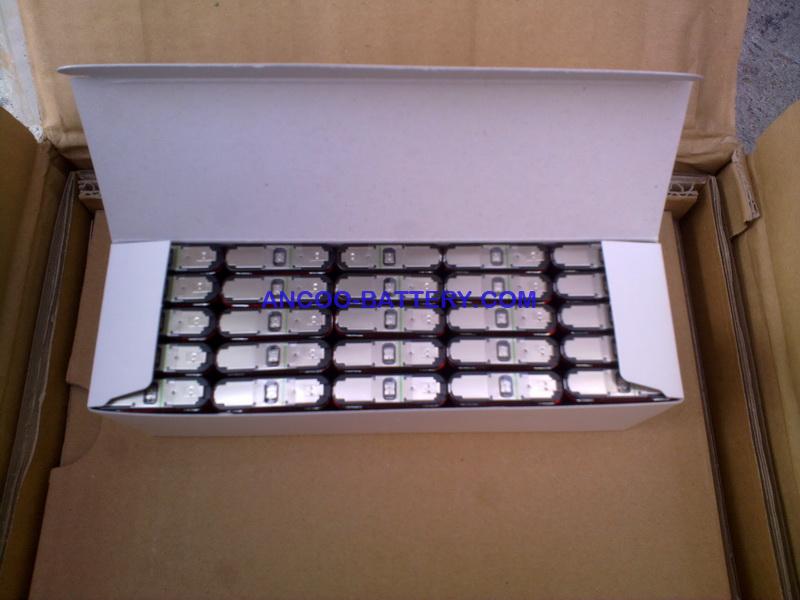

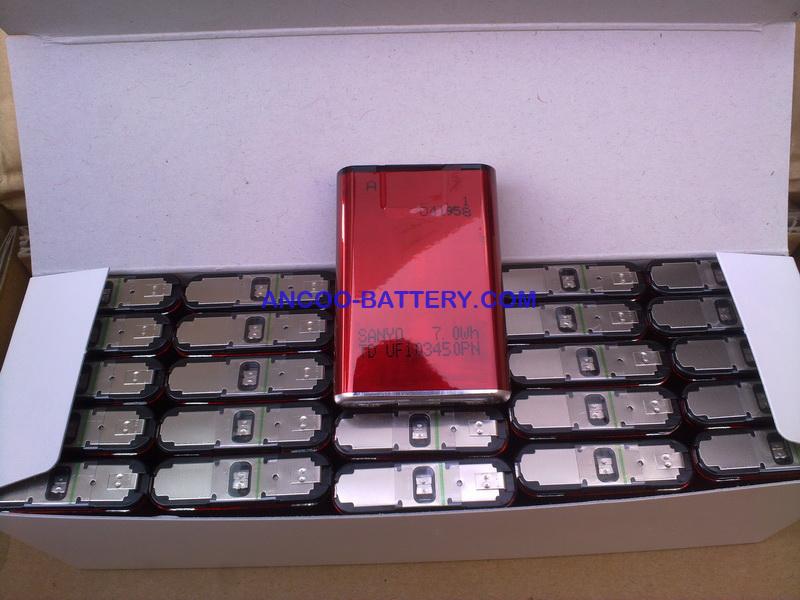

Sanyo UF103450P with fuse 2000mAh 3.7V 7.0Wh 103450 Li-ion battery cells

ON SALE, 20% Discount for Bulk Order

Sanyo UF103450P with fuse 7.0Wh 2000mAh 3.7V 103450 Li-ion battery cells

Shipping by air or sea with MSDS UN38.3 RoHS BIS CB IEC62133 UL1642

1. Extent of the application
This specification is applied to the Sanyo UF103450P
2.1 Battery Classification SANYO Lithium Ion Battery
2.2 Battery Type UF103450P (with Fuse)
3.1 Nominal Capacity 1880mAh 0.376A discharge
3.2 Nominal Voltage 3.7V 0.376A discharge
3.3 End Voltage 3.0V
3.4 Charging Current (Std.) 1.88A 0 ~ +40℃
3.5 Charging Voltage 4.20V Tolerance is ±0.03V
3.6 Charging Time (Std.) 3hours
3.7 Discharging Current (Std.) 0.94A -20 ~ +60℃
3.8 Discharging Current (Max.)※１ 2.00A 0 ~ +40℃
3.9 Internal Resistance less than 100mΩ AC Impedance 1kHz
3.10 Weight less than 45g
3.11 Surroundings less than 1month -20 ~ +50℃
Temperature range less than 3months -20 ~ +40℃
for shipped battery less than 1year -20 ~ +20℃
Percentage of recoverable capacity: 80%※２

※1 Maximum discharge current as a single cell state is as above stated. However after assembling to the battery pack, there is the limitation of maximum discharge current because of protection circuit and protection device.
※2 Percentage of recoverable capacity= (discharging time after storage / Initial discharging time)×100 Discharging time is measured by the discharge at 0.376A to 3.0V end voltage after fully charged according to specification at approximately 25℃.
