103450 Battery Cells

  • Samsung 103450 with PTC 2000mAh Battery
  • Samsung 103450 with PTC 2000mAh Battery
Samsung 103450 with PTC 2000mAh BatterySamsung 103450 with PTC 2000mAh Battery

Samsung 103450 with PTC 2000mAh Battery

Samsung 103450 with PTC Li-ion Battery

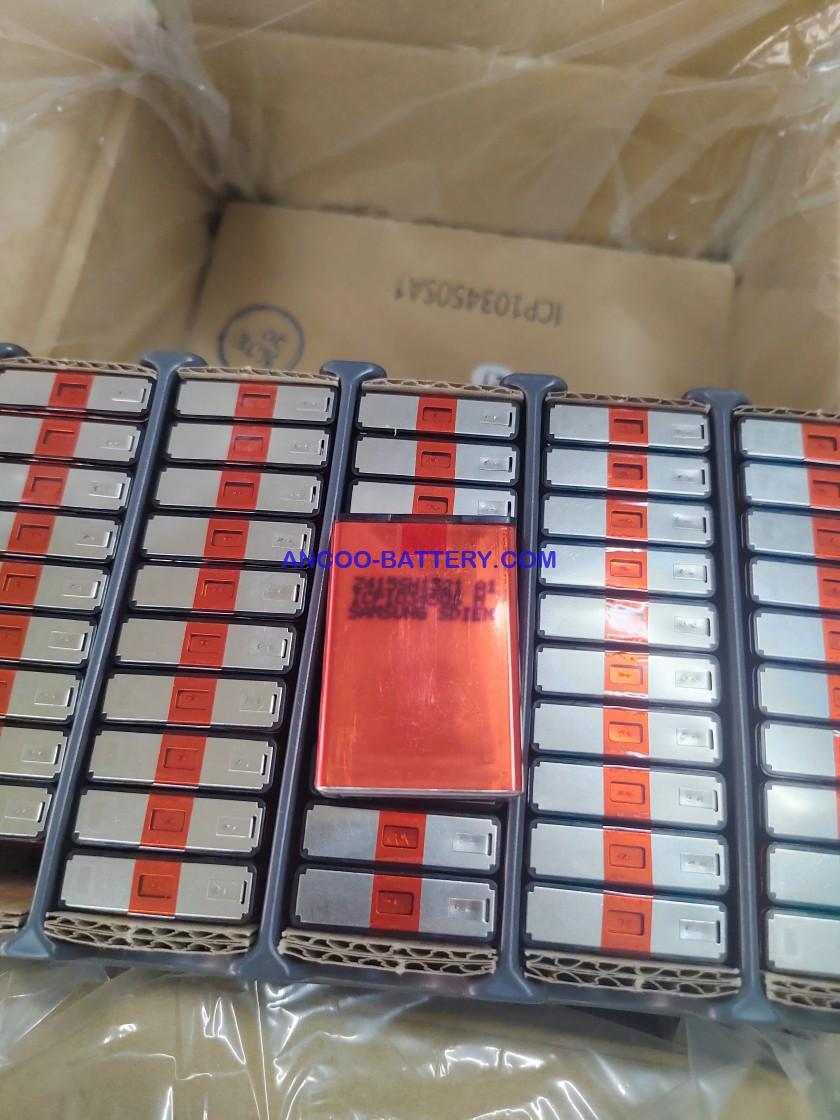

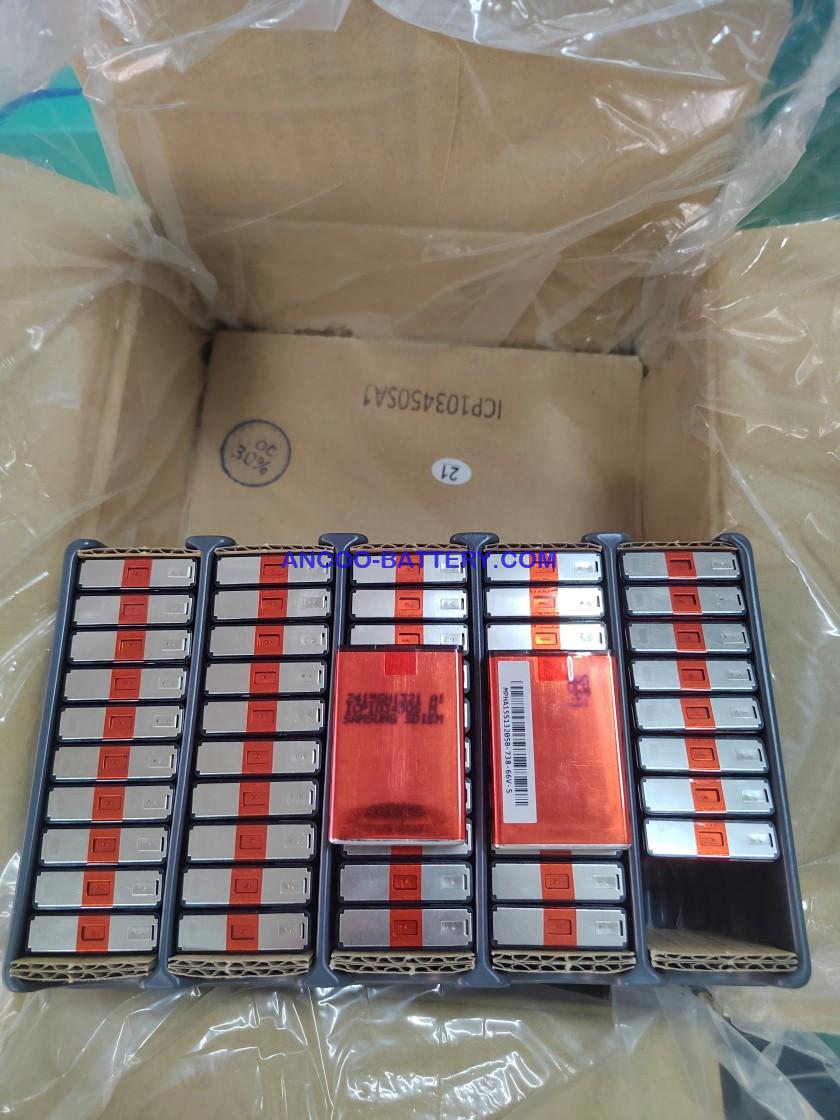

  1. >20K in stock, ICP103450S with PTC, original packaging.
  2. Fast shipping by air or sea from China, contact us for a special offer.
  3. We hold full Specification UL1642 CB IEC62133 BIS KC PSE test reports.

Cell Specification

  1. Size: 103450
  2. Nominal Capacity 2000mAh (0.2C discharge)
  3. Charging Voltage 4.2V
  4. Nominal Voltage 3.7V
  5. Charging Method CC-CV (constant voltage with limited current)
  6. Standard charge Current: 1000mA
  7. Rapid charge Current: 1700mA
  8. Standard charge Time: 3hours
  9. Rapid charge Time: 2.5hours
  10. Max. Charge Current 1700mA
  11. Max. Discharge Current 2000mA
  12. Discharge Cut-off Voltage 2.75V
  13. Cell Weight 42g max
  14. Cell Dimension
  15. Thickness : 10.4mm(ex-factory status)
  16. Height : 48.7mm max
  17. Width : 39mm max
  18. Charge Temperature: 0 to 45℃
  19. Discharge Temperature: -20 to 60℃
  20. Model: ICP103450S
  21. Manufacture: Samsung SDI

Samsung ICP103450S with fuse
