SANYO UF553048F 900mAh 553048 Battery

INQUIRY

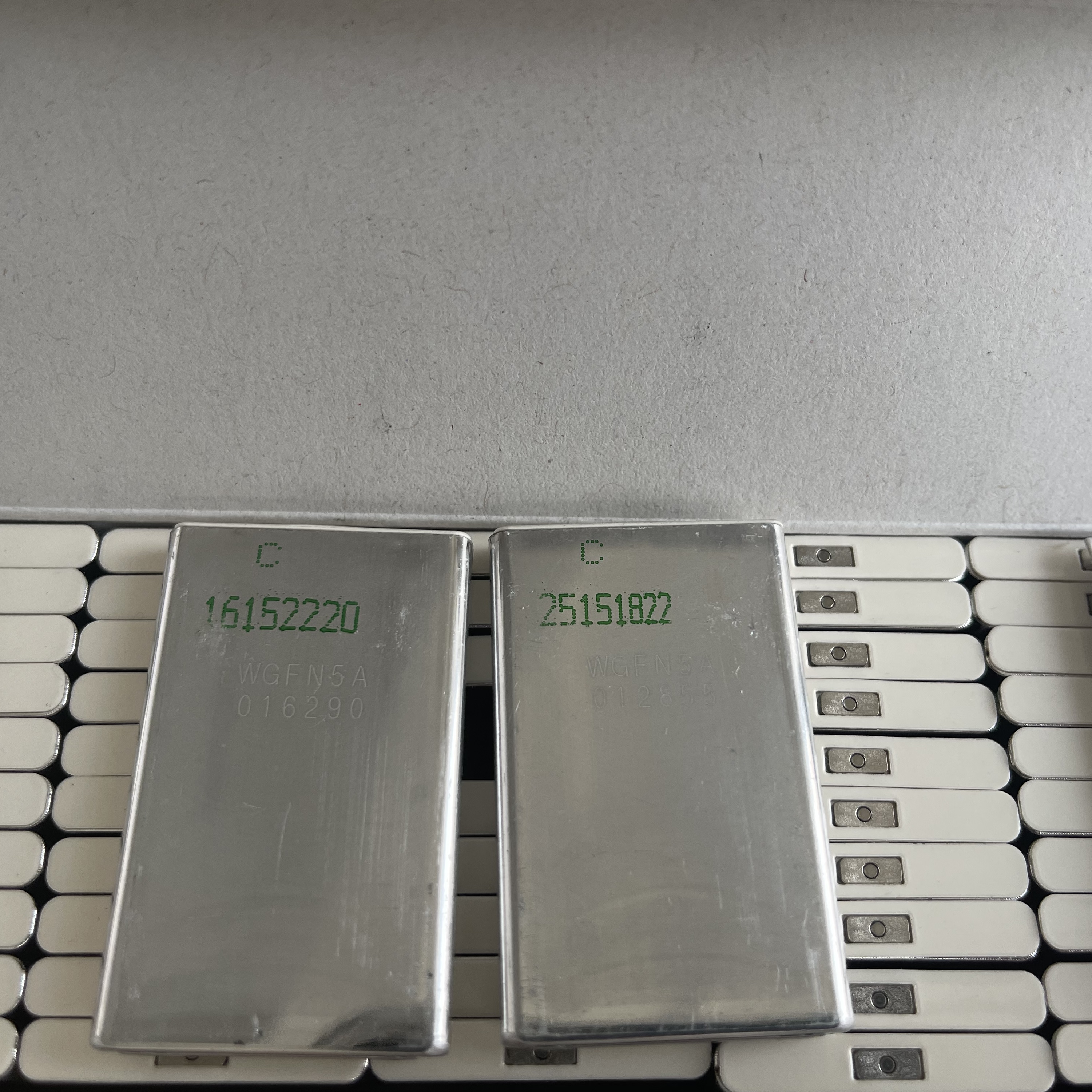

SANYO UF553048F 900mAh Li-ion Battery Cells

>10K in stock, we hold MSDS UN38.3 IEC62133 UL1642, contact us for a special offer.

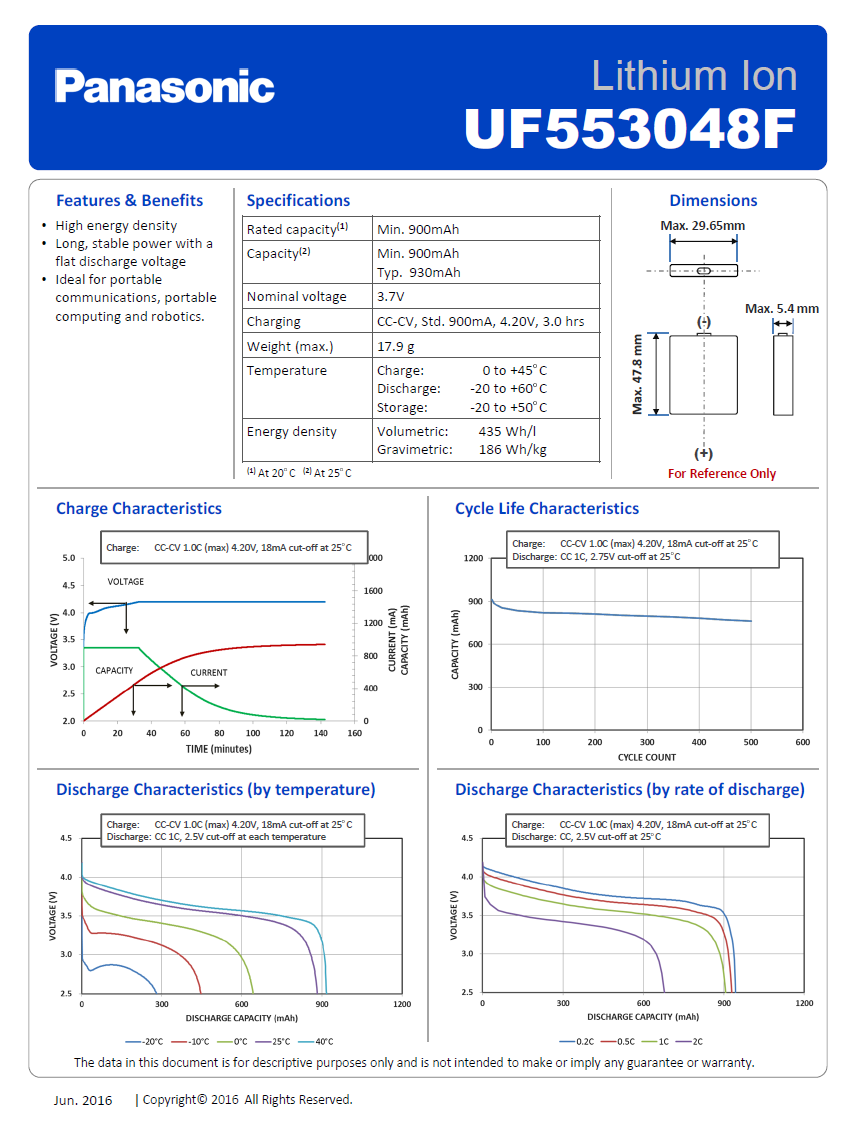

1. Extent of the application

This specification is applied to the SANYO Lithium Ion Battery of the above mentioned type for a Portable Device

2. Battery Classification and Type

2.1 Battery Classification: SANYO 553048 Li-Ion Battery
2.2 Battery Type: UF553048F

3. Nominal Specifications

3.1 Nominal Capacity Min,900mAh 0.2CA discharge
3.2 Nominal Voltage 3.70V
3.3 End Voltage 2.75V
3.4 Charging Current (Std.) 1C(=1.2)A 0 ~ +40℃
3.5 Charging Voltage 4.20±0.03V
3.6 Charging Time (Std.) 3hours
3.7 Discharging Current (Std.) 1.2A, -20 ~ +60℃
3.8 Discharging Current (Max.) 2.40A 0 ~ +40℃
3.9 Internal Resistance less than 55mΩ AC Impedance 1kHz
3.10 Weight less than 17.9g
