Lishen Li-ion Battery Cells

  • Lishen LP54173207-202Ah Prismatic LiFePO4 Battery Cells
  • Lishen LP54173207-202Ah Prismatic LiFePO4 Battery Cells
  • Lishen LP54173207-202Ah Prismatic LiFePO4 Battery Cells
Lishen LP54173207-202Ah Prismatic LiFePO4 Battery CellsLishen LP54173207-202Ah Prismatic LiFePO4 Battery CellsLishen LP54173207-202Ah Prismatic LiFePO4 Battery Cells

Lishen LP54173207-202Ah Prismatic LiFePO4 Battery Cells

ON SALE, 20% Discount for Bulk Order

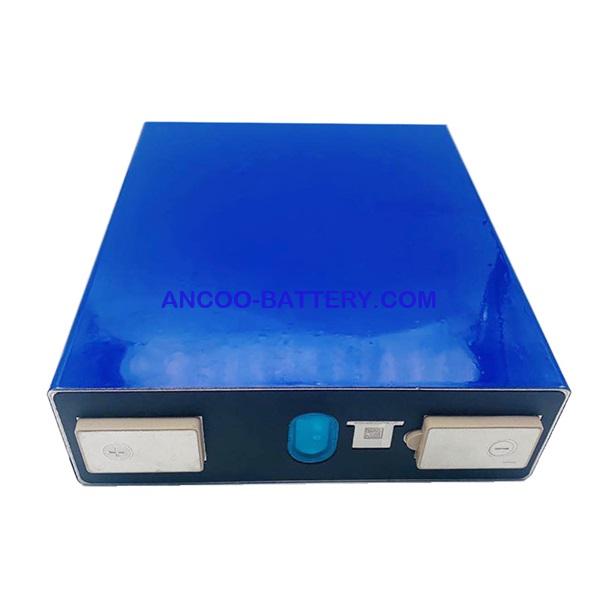

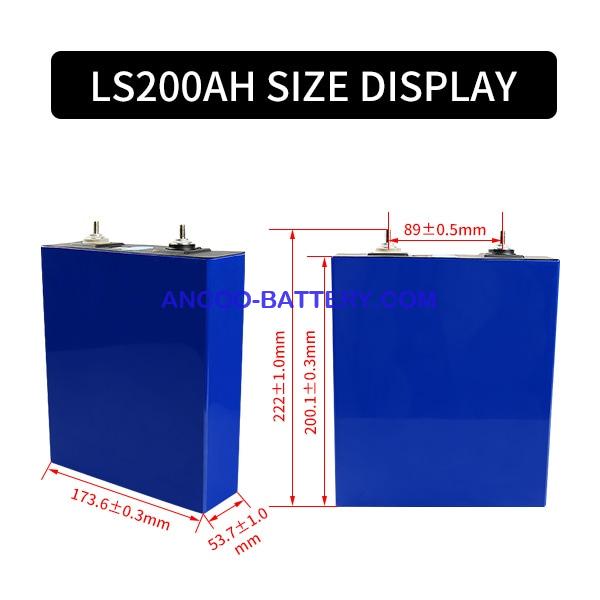

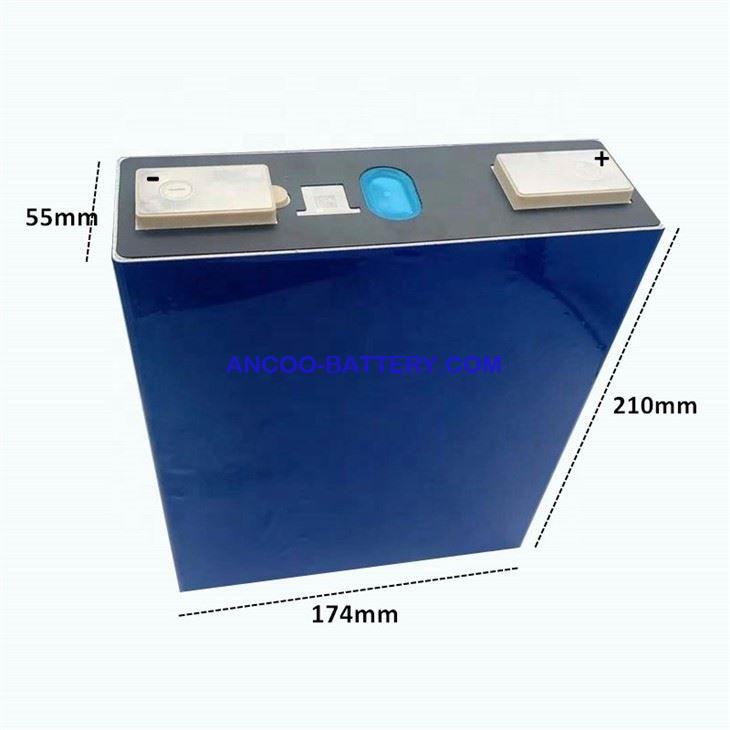

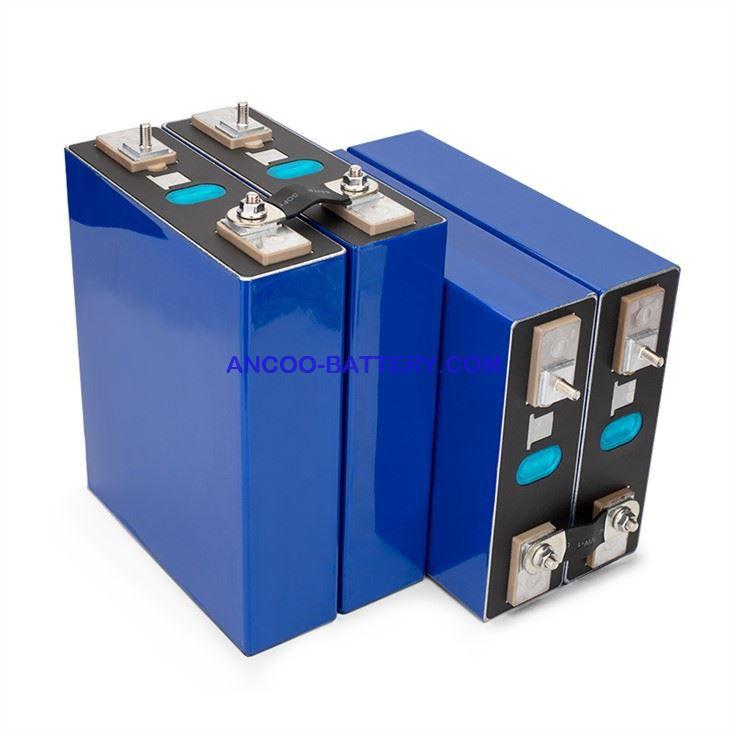

Lishen LP54173207-202Ah Prismatic LiFePO4 Battery Cell

Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage: 2.5V~3.65V

Specifications:

1 Cell Type Lithium iron phosphate battery
2 Cell Model LP54173207-202Ah
3 Nominal Capacity☆ 202.0Ah
4 Average Working Voltage☆ 3.2V
5 AC-Impedance☆ ≤0.2mΩ
6 Weight 3.95± 0.1kg
7 Maximum Charge Current at Room Temperature
1I1(Continuous) 2I1 (50%SOC,10s)
8 Charging End Voltage 3.65V
9 Maximum Discharge Current at Room Temperature
1I1(Continuous) 3I1 (50%SOC,30s)
10 Discharge End Voltage 2.5V(>0℃)2.0V(≤0℃)
11 Max Operating Temperature Range
Charge 0℃ ~ 55℃
Discharge -30℃ ~ 60℃
12 Optimal Operating Temperature Range
Charge 15℃ ~ 35℃
Discharge 15℃ ~ 35℃
13 Storage Temperature
1 month -40℃~ 45℃
6 months -20℃ ~ 35°C
*Cells should be stored at the state of 20%~40%SOC or the voltage is between 3.275V and3.304V.
