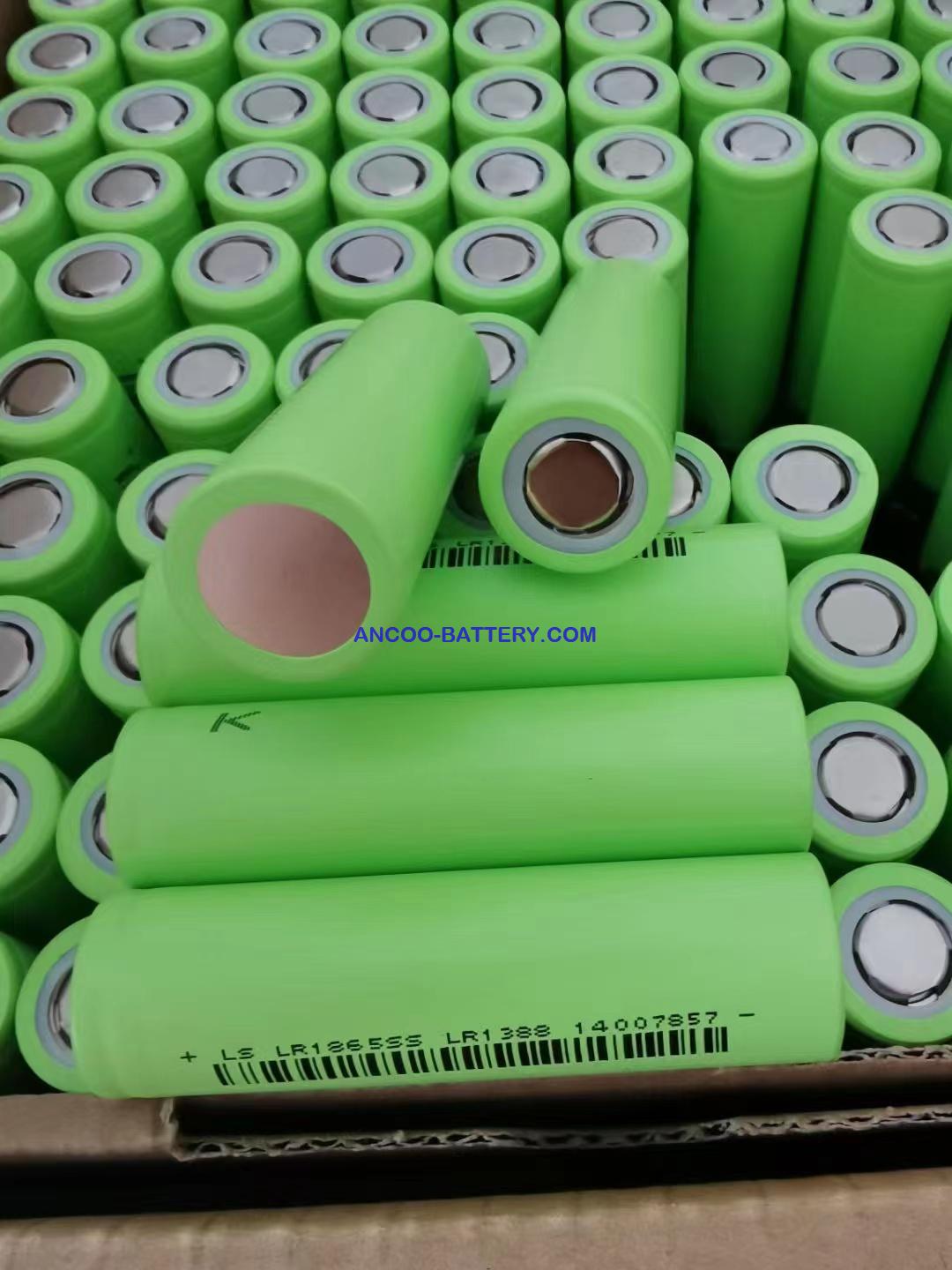

LS LR1865SS 3000mAh 3.65V 18650 Cells

LS LR1865SS 3000mAh 18650 cells for Sale

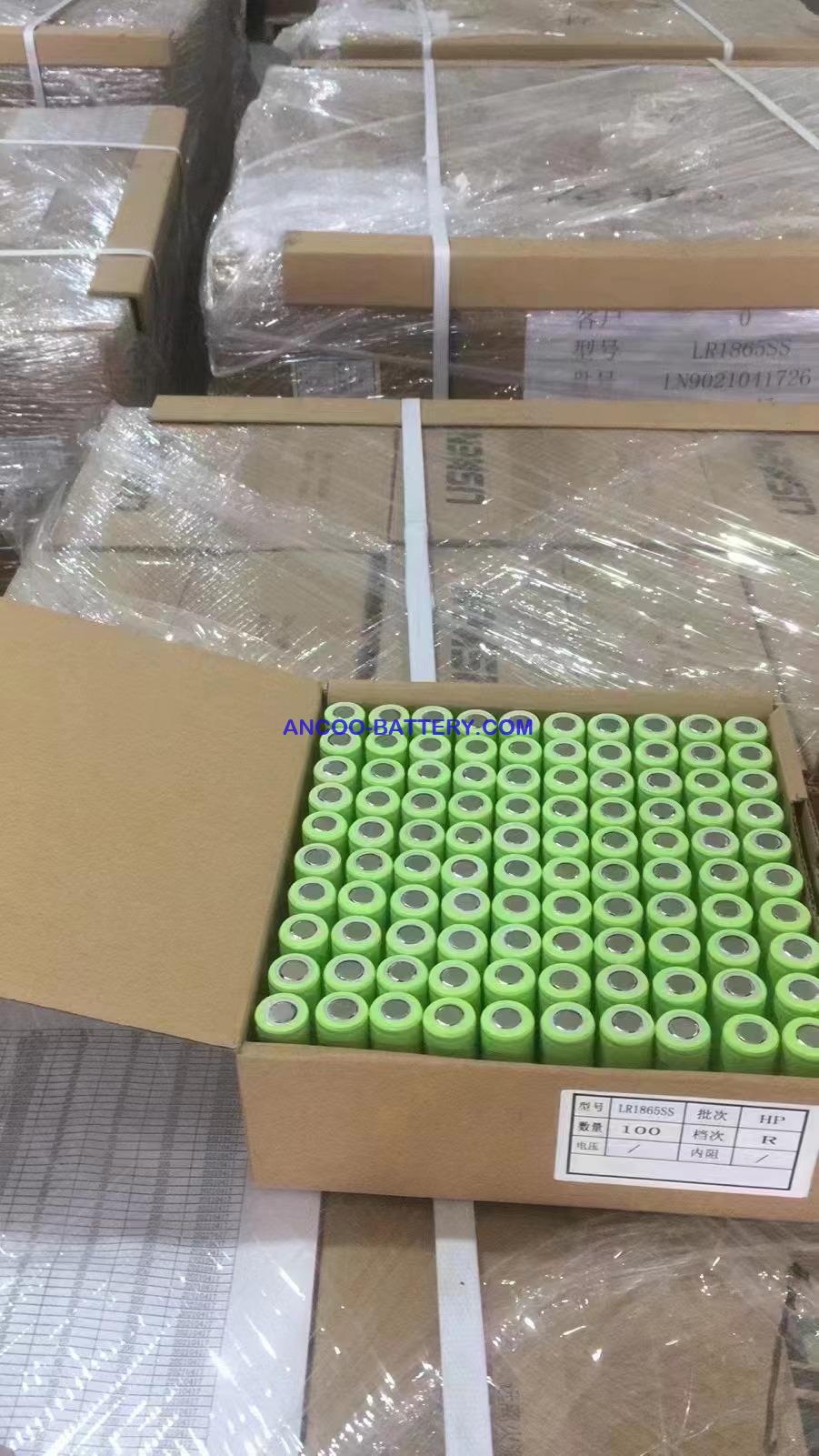

>100K in stock, 2023 fresh date code and sealed with original packing.

We hold RoHS, CB, UL1642, IEC62133, MSDS, UN38.3 test reports and cergificates.

LS LR1865SS Specifications

1 scope of application of LR1865SS
This specification specifies the technical requirements, test methods and precautions of cylindrical lithium ion battery produced by Tianjin Lishen Battery Co., Ltd
2 model and description
2.1 description cylindrical lithium ion battery
2.2 battery model LR1865SS
3 conventional indicators
3.1 nominal capacity 3000mAh (0.2C discharge)
Minimum capacity 2900mah (0.2C discharge)
The nominal capacity is the capacity value measured by fully charging in the standard charging mode and discharging from 0.2C to 2.5V
3.2 charging voltage 4.20V ± 0.03V
3.3 nominal voltage 65V@0.2C
3.4 standard charging mode (25 ℃± 2 ℃) first constant current charging and then constant voltage charging
Current 0.2C (600mA)
Voltage 4.20V
Termination current 60mA ± 5mA
3.5 maximum charging current (non cycle) 0 ℃ ≤ t ≤ 10 ℃ 0.1C (300mA)
10℃ < T ≤ 20℃ 0.2C (600mA)
20℃ < T ≤ 45℃ 0.3C (900mA)
3.6 charging time standard 6.0h
Fast charging 4.0h
3.7 standard discharge mode: constant current discharge
Current 0.2C (600mA)
Termination voltage 2.5V
3.8 maximum discharge current (non circulating) - 20 ℃ ≤ t ≤ 20 ℃ 1.0c (3000ma)
20℃ < T ≤ 45℃ 2.0C (6000mA)

Safety certification: MSDS un38 3 RoHS CB IEC62133 UL1642
